C
HAPTER
5
| Interface Configuration
Trunk Configuration
– 181 –
WEB INTERFACE
To display LACP settings and status for the local side:
1. Click Interface, Trunk, Dynamic.
2. Select Configure Aggregation Port from the Step list.
3. Select Show Information from the Action list.
4. Click Internal.
5. Select a group member from the Port list.

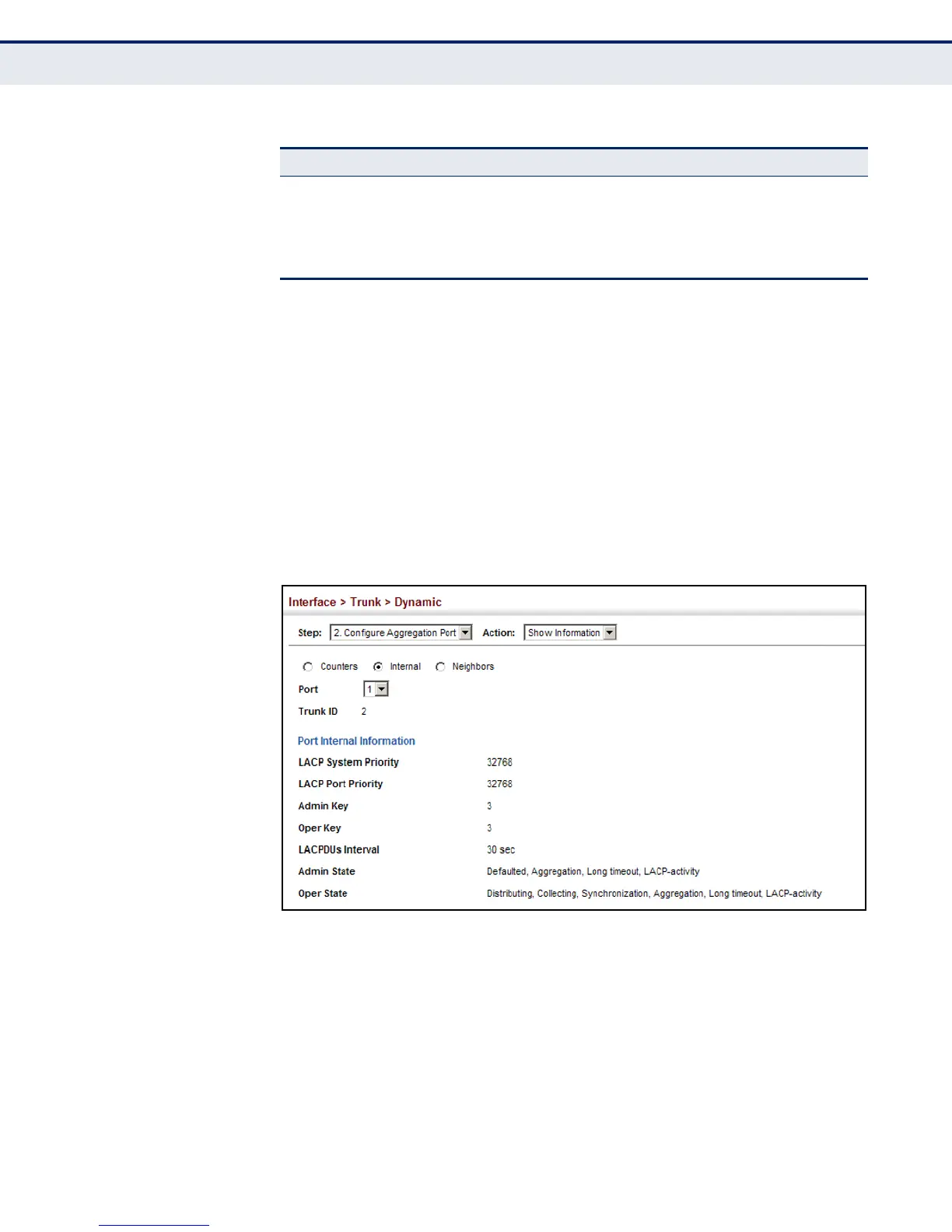

Figure 57: Displaying LACP Port Internal Information
Admin State,
Oper State
(continued)
â—†
Aggregation – The system considers this link to be aggregatable;
i.e., a potential candidate for aggregation.
â—†
Long timeout – Periodic transmission of LACPDUs uses a slow
transmission rate.
â—†
LACP-Activity – Activity control value with regard to this link.
(0:Passive;1:Active)
Table 9: LACP Internal Configuration Information (Continued)
Parameter Description
