C
HAPTER
6
| VLAN Configuration
IEEE 802.1Q VLANs
– 202 –

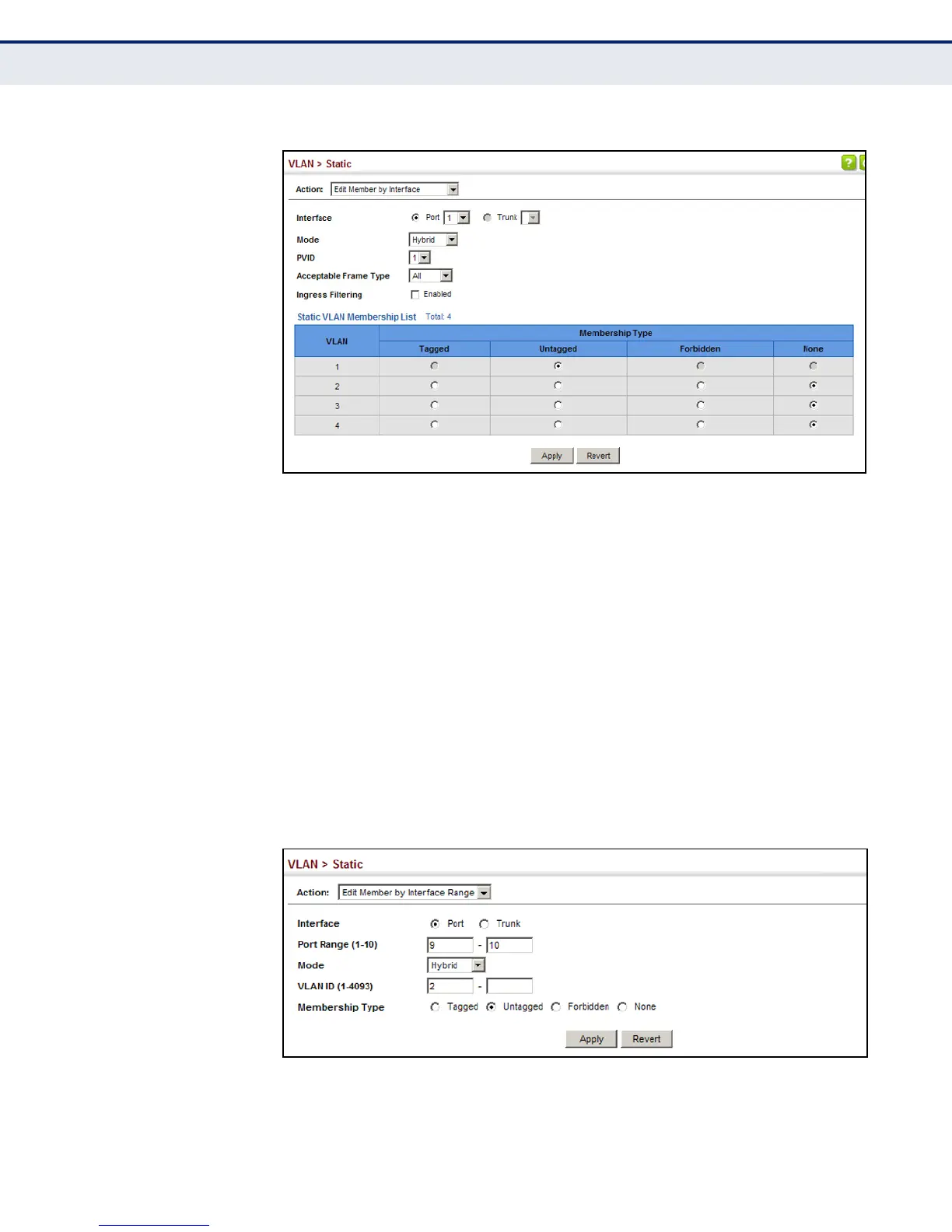

Figure 72: Configuring Static VLAN Members by Interface
To configure static members by interface range:
1. Click VLAN, Static.
2. Select Edit Member by Interface Range from the Action list.
3. Set the Interface type to display as Port or Trunk.
4. Enter an interface range.
5. Modify the VLAN parameters as required. Remember that the PVID,
acceptable frame type, and ingress filtering parameters for each
interface within the specified range must be configured on either the
Edit Member by VLAN or Edit Member by Interface page.
6. Click Apply.
Figure 73: Configuring Static VLAN Members by Interface Range
