Edge-Core ES3528MV2 User Manual

C HAPTER 6 | VLAN Configuration
Protocol VLANs
– 218 –

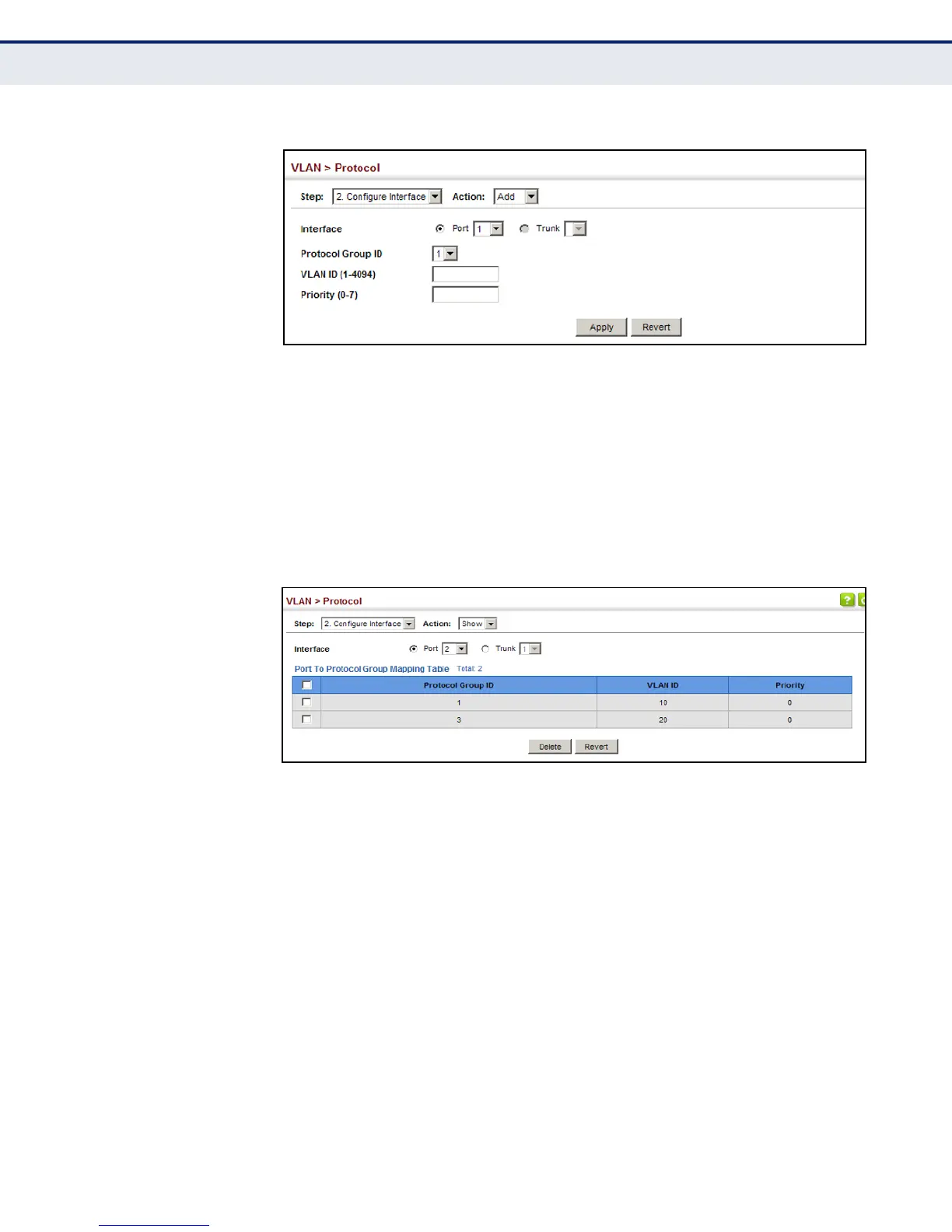

Figure 85: Assigning Interfaces to Protocol VLANs
To show the protocol groups mapped to a port or trunk:
1. Click VLAN, Protocol.
2. Select Configure Interface from the Step list.
3. Select Show from the Action list.
4. Select a port or trunk.
Figure 86: Showing the Interface to Protocol Group Mapping
