| VLAN Configuration
Configuring IP Subnet VLANs
– 220 –
WEB INTERFACE
To map an IP subnet to a VLAN:
1. Click VLAN, IP Subnet.
2. Select Add from the Action list.
3. Enter an address in the IP Address field.
4. Enter a mask in the Subnet Mask field.
5. Enter the identifier in the VLAN field. Note that the specified VLAN need
not already be configured.
6. Enter a value to assign to untagged frames in the Priority field.
7. Click Apply.

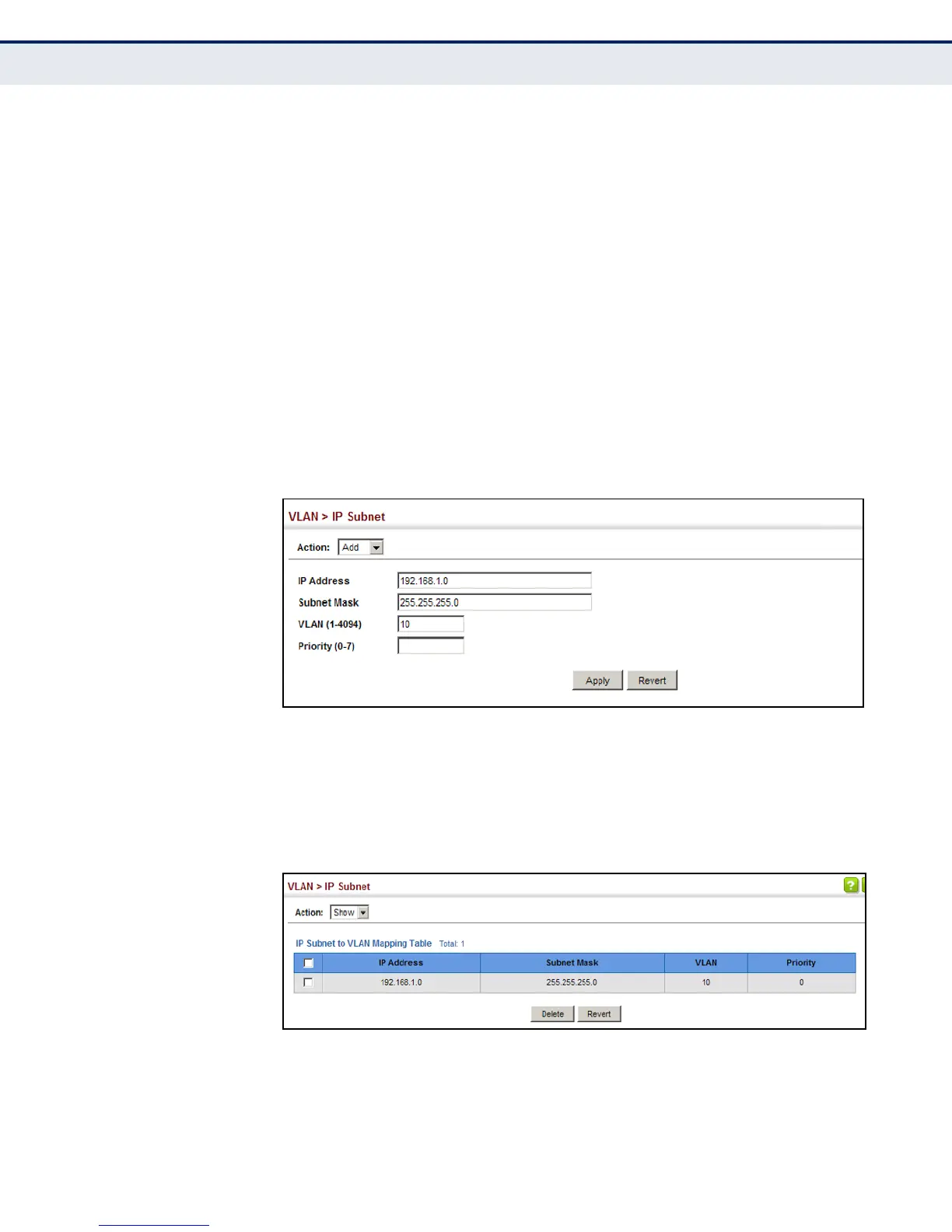

Figure 87: Configuring IP Subnet VLANs
To show the configured IP subnet VLANs:
1. Click VLAN, IP Subnet.
2. Select Show from the Action list.
Figure 88: Showing IP Subnet VLANs
