C
HAPTER
6
| VLAN Configuration
Configuring VLAN Translation
– 225 –
◆ If VLAN translation is set on an interface, and the same interface is also
configured as a QinQ access port on the VLAN > Tunnel (Configure
Interface) page, VLAN tag assignments will be determined by the QinQ
process, not by VLAN translation.
PARAMETERS
These parameters are displayed:
◆ Old VLAN – The original VLAN ID. (Range: 1-4094)
◆ New VLAN – The new VLAN ID. (Range: 1-4094)
WEB INTERFACE
To configure VLAN translation:
1. Click VLAN, Translation.
2. Select Add from the Action list.
3. Select a port, and enter the original and new VLAN IDs.
4. Click Apply.

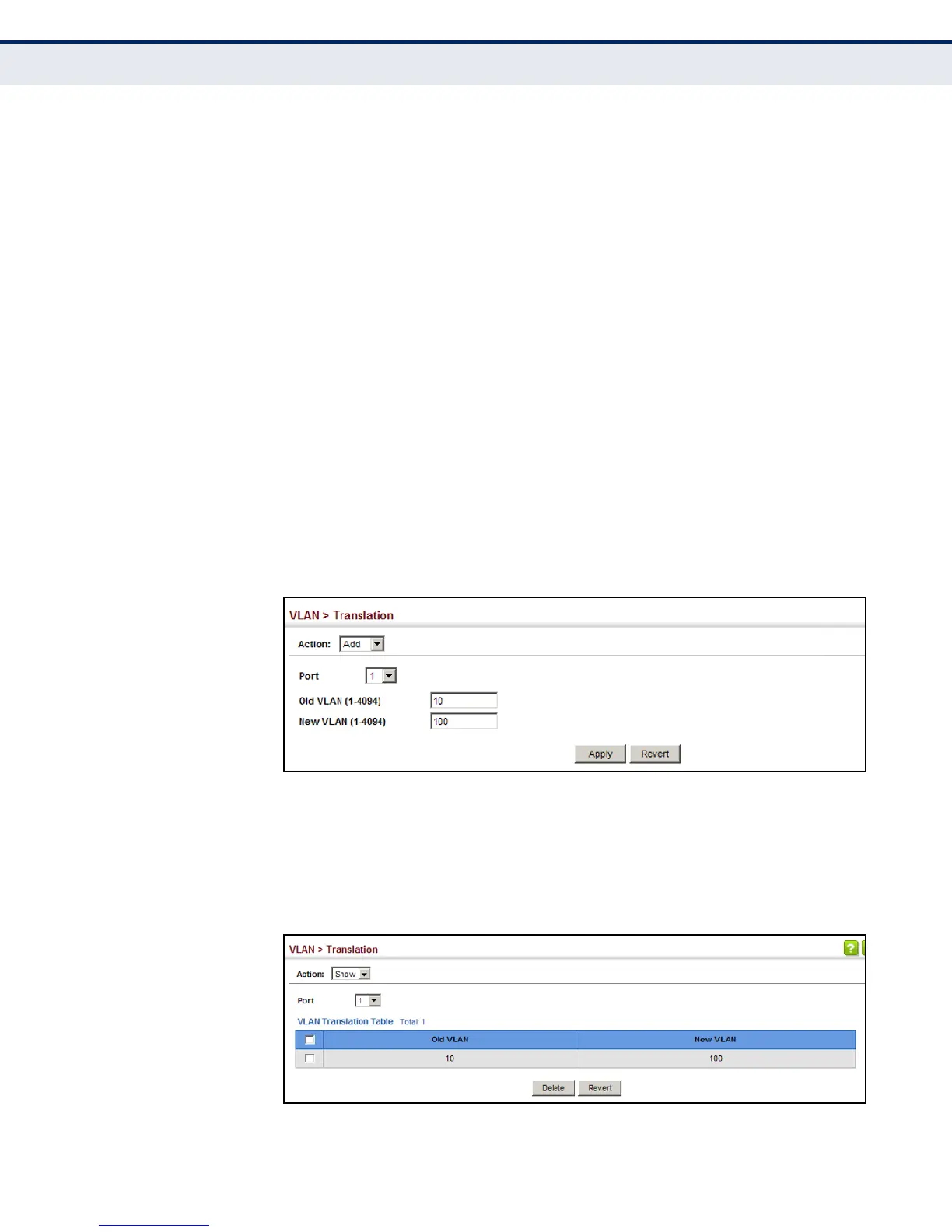

Figure 94: Configuring VLAN Translation
To show the mapping entries for VLANs translation:
1. Click VLAN, Translation.
2. Select Show from the Action list.
Figure 95: Showing the Entries for VLAN Translation
