C
HAPTER
8
| Spanning Tree Algorithm
Configuring Interface Settings for MSTP
– 260 –
The recommended range is listed in Table 12 on page 249.
The default path costs are listed in Table 13 on page 250.
WEB INTERFACE
To configure MSTP parameters for a port or trunk:
1. Click Spanning Tree, MSTP.
2. Select Configure Interface from the Step list.
3. Select Configure from the Action list.
4. Enter the priority and path cost for an interface
5. Click Apply.

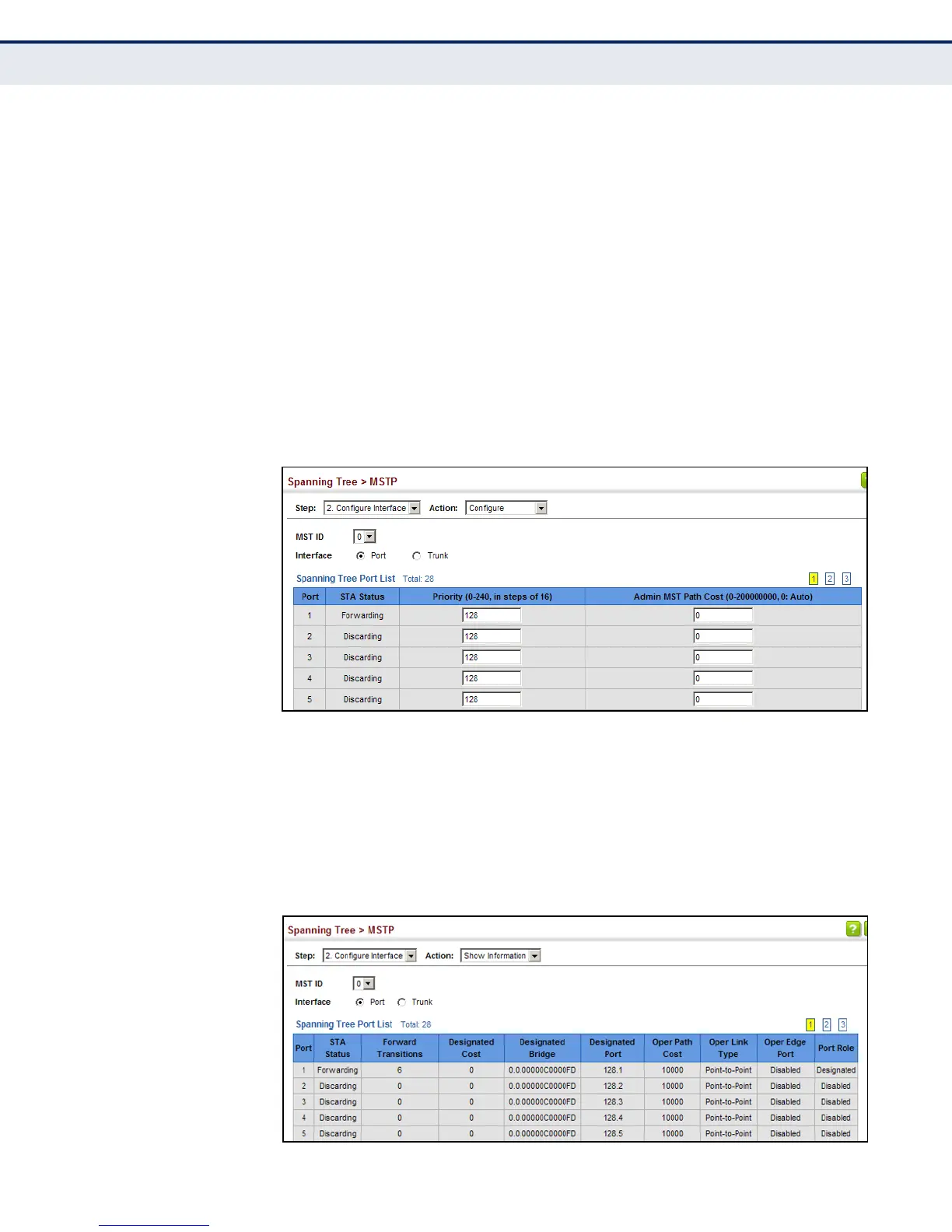

Figure 121: Configuring MSTP Interface Settings
To display MSTP parameters for a port or trunk:
1. Click Spanning Tree, MSTP.
2. Select Configure Interface from the Step list.
3. Select Show Information from the Action list.
Figure 122: Displaying MSTP Interface Settings
