C
HAPTER
10
| Class of Service
Layer 2 Queue Settings
– 277 –

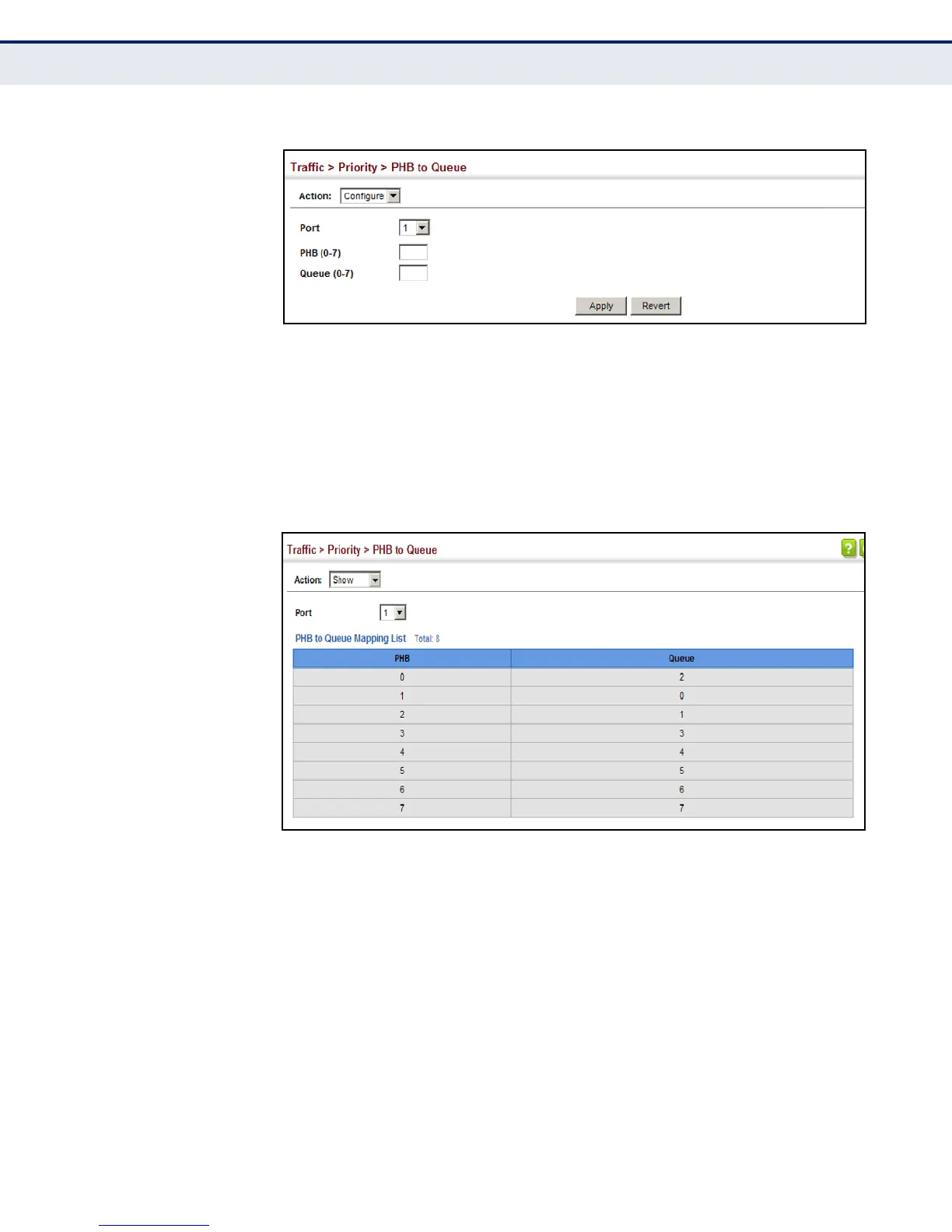

Figure 133: Mapping CoS Values to Egress Queues
To show the internal PHB to hardware queue map:
1. Click Traffic, Priority, PHB to Queue.
2. Select Show from the Action list.
3. Select an interface.
Figure 134: Showing CoS Values to Egress Queue Mapping
