Layer 3/4 Priority Settings
– 281 –
WEB INTERFACE
To map DSCP values to internal PHB/drop precedence:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Configure from the Action list.
3. Select a port.
4. Set the PHB and drop precedence for any DSCP value.
5. Click Apply.

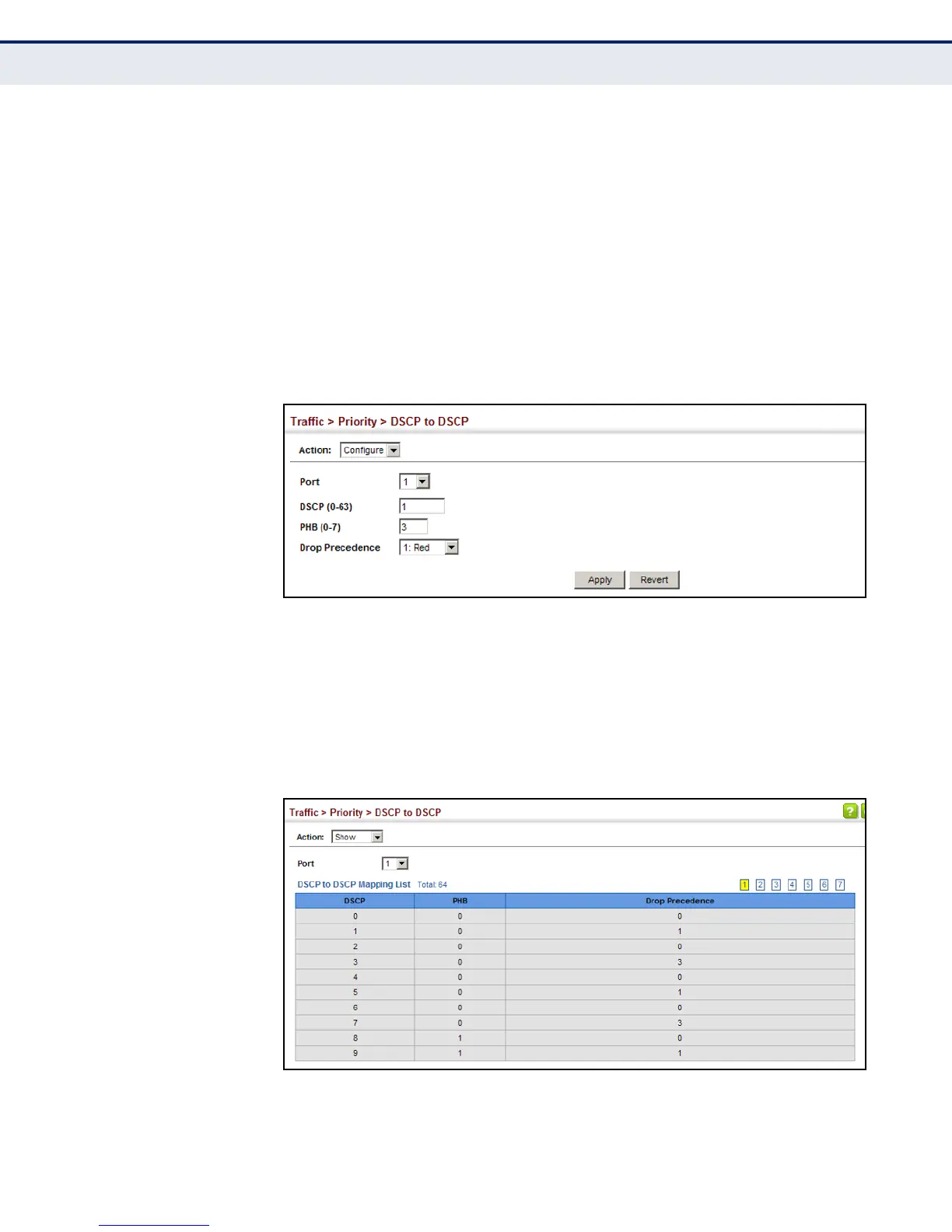

Figure 136: Configuring DSCP to DSCP Internal Mapping
To show the DSCP to internal PHB/drop precedence map:
1. Click Traffic, Priority, DSCP to DSCP.
2. Select Show from the Action list.
3. Select a port.
Figure 137: Showing DSCP to DSCP Internal Mapping
