C
HAPTER
13
| Security Measures
Access Control Lists
– 370 –
WEB INTERFACE
To bind an ACL to a port:
1. Click Security, ACL.
2. Select Configure Interface from the Step list.
3. Select Add Mirror from the Action list.
4. Select a port.
5. Select the name of an ACL from the ACL list.
6. Click Apply.

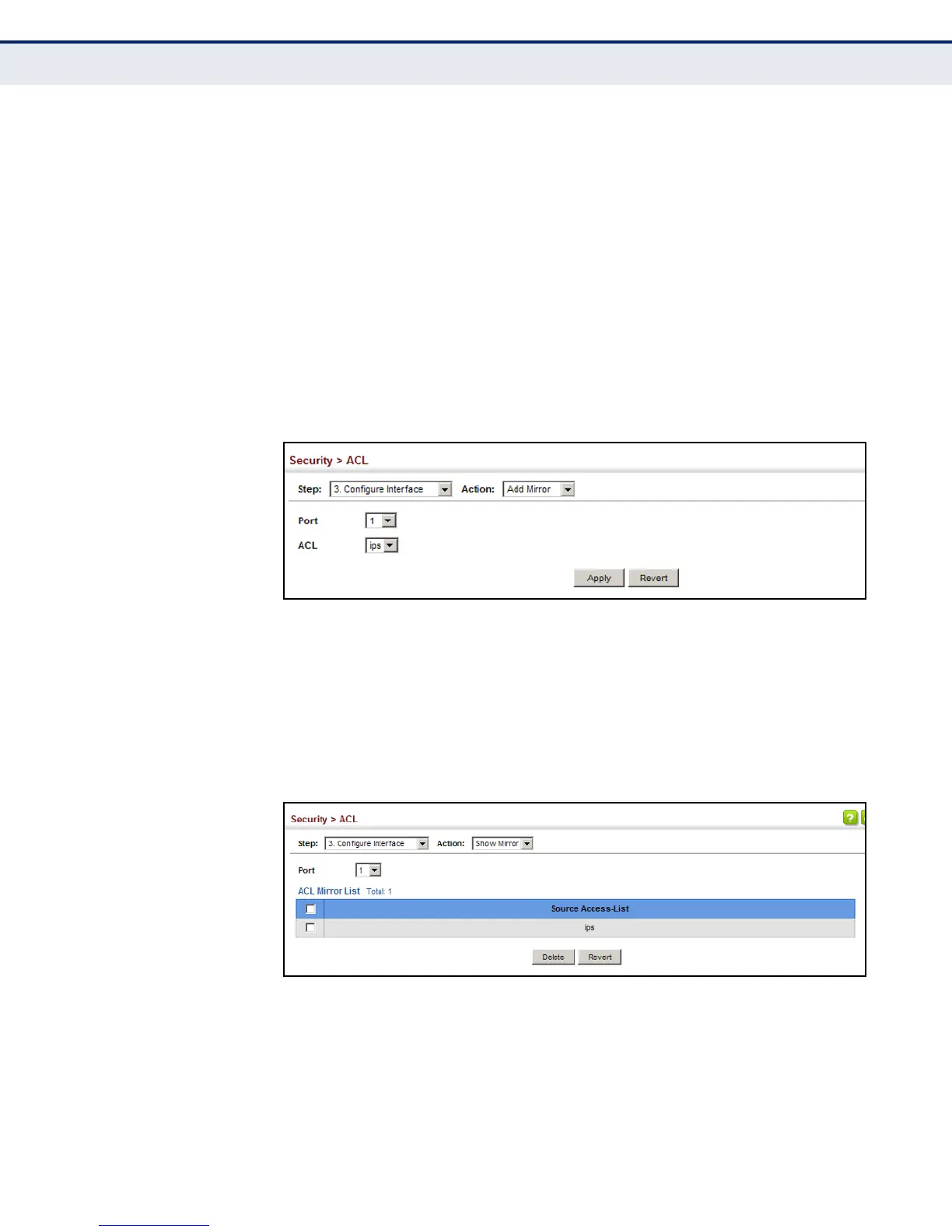

Figure 202: Configuring ACL Mirroring
To show the ACLs to be mirrored:
1. Select Configure Interface from the Step list.
2. Select Show Mirror from the Action list.
3. Select a port.
Figure 203: Showing the VLANs to Mirror
