C
HAPTER
14
| Basic Administration Protocols
Link Layer Discovery Protocol
– 444 –
Additional information displayed by an end-point device which advertises
LLDP-MED TLVs is shown in the following figure.

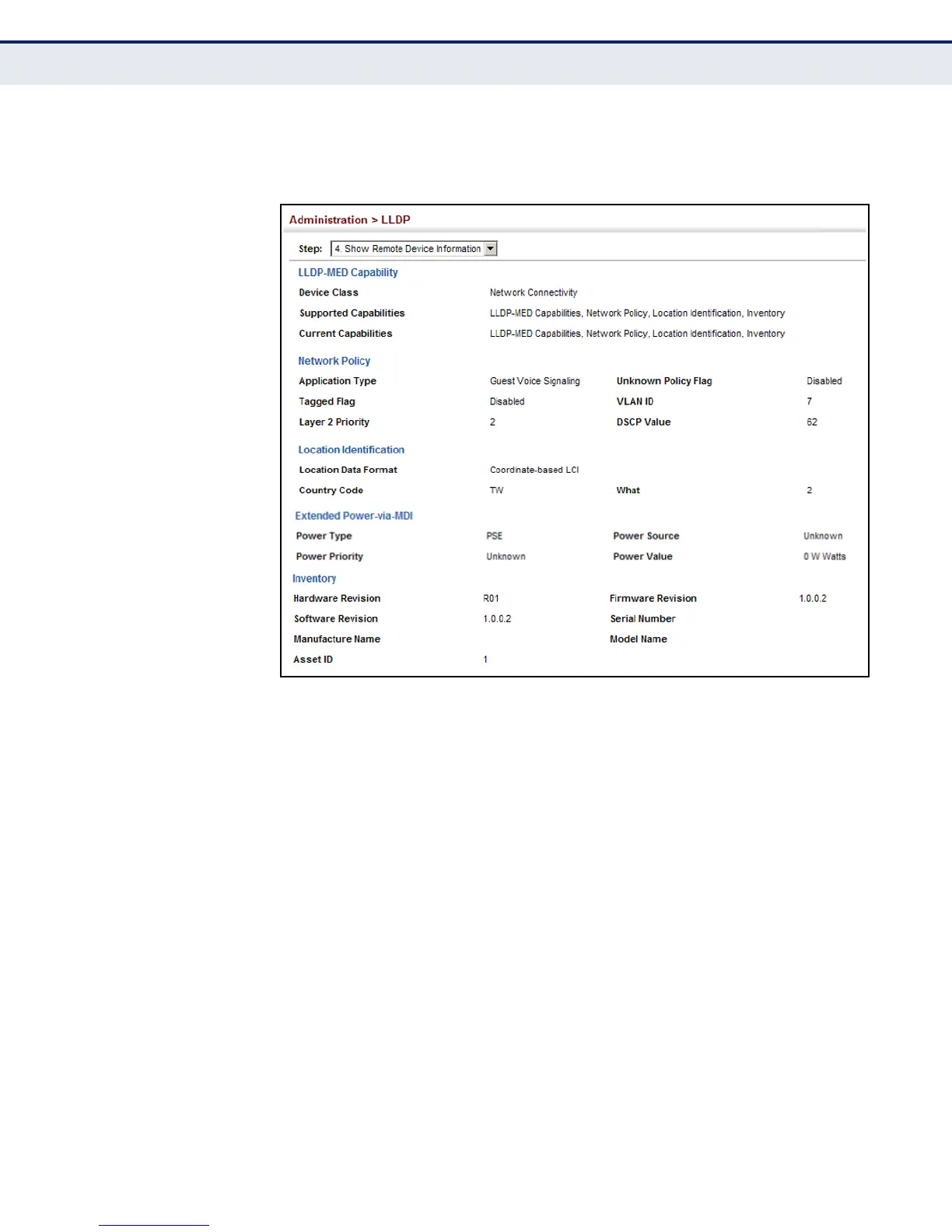

Figure 244: Displaying Remote Device Information for LLDP (End Node)
DISPLAYING
DEVICE STATISTICS
Use the Administration > LLDP (Show Device Statistics) page to display
statistics for LLDP-capable devices attached to the switch, and for LLDP
protocol messages transmitted or received on all local interfaces.
CLI REFERENCES
â—† "show lldp info statistics" on page 1317
PARAMETERS
These parameters are displayed:
General Statistics on Remote Devices
◆ Neighbor Entries List Last Updated – The time the LLDP neighbor
entry list was last updated.
◆ New Neighbor Entries Count – The number of LLDP neighbors for
which the remote TTL has not yet expired.
◆ Neighbor Entries Deleted Count – The number of LLDP neighbors
which have been removed from the LLDP remote systems MIB for any
reason.
