C
HAPTER
17
| Multicast Filtering
Layer 2 IGMP (Snooping and Query for IPv4)
– 617 –
◆ Port or Trunk – Specifies the interface assigned to a multicast group.
◆ Multicast IP – The IP address for a specific multicast service.
WEB INTERFACE
To statically assign an interface to a multicast service:
1. Click Multicast, IGMP Snooping, IGMP Member.
2. Select Add Static Member from the Action list.
3. Select the VLAN that will propagate the multicast service, specify the
interface attached to a multicast service (through an IGMP-enabled
switch or multicast router), and enter the multicast IP address.
4. Click Apply.

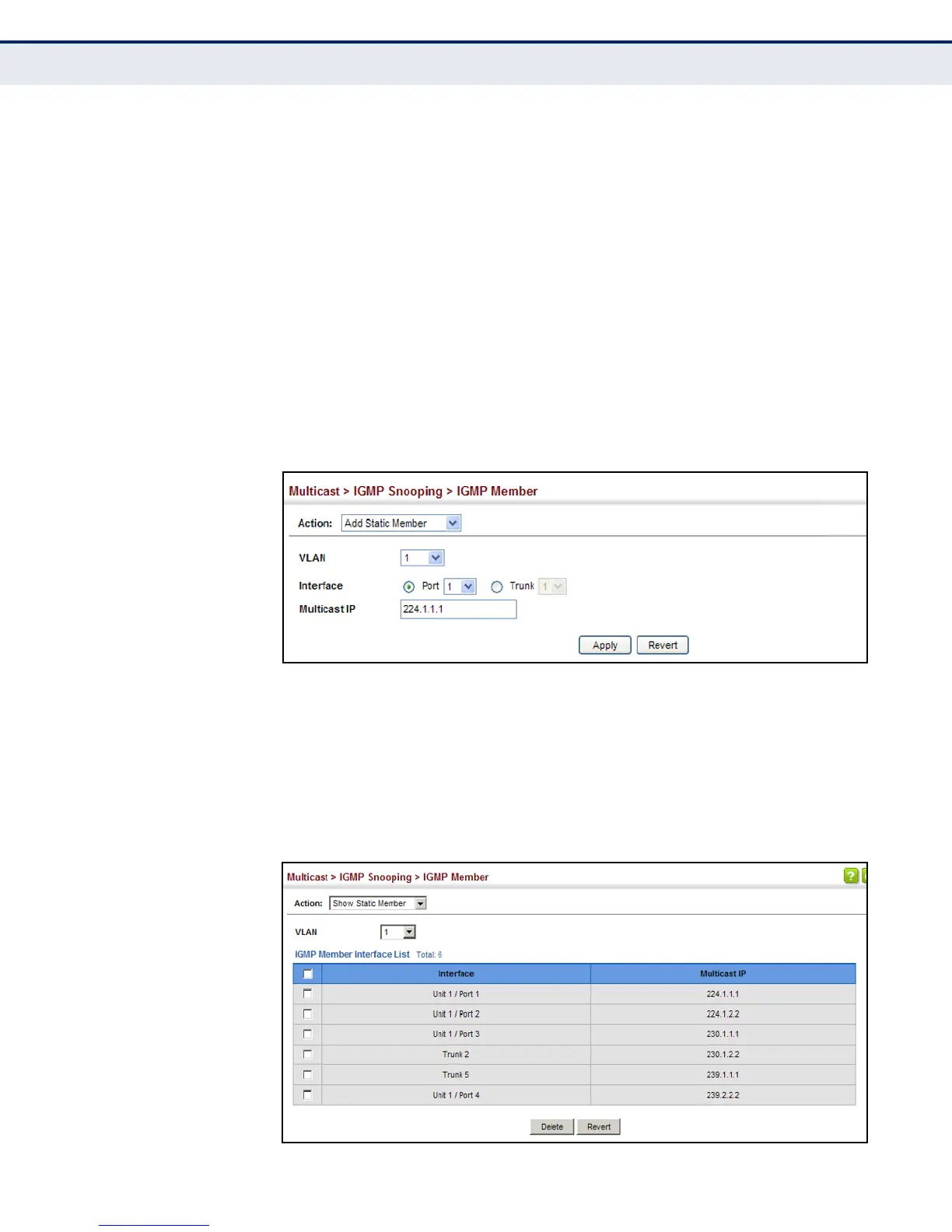

Figure 362: Assigning an Interface to a Multicast Service
To show the static interfaces assigned to a multicast service:
1. Click Multicast, IGMP Snooping, IGMP Member.
2. Select Show Static Member from the Action list.
3. Select the VLAN for which to display this information.
Figure 363: Showing Static Interfaces Assigned to a Multicast Service
