NC Standard and Hinged Trim Fronts 80043-740-01
Installing Low Amp Hinged Trim 02/2009
ENGLISH
Installing Low Amp Hinged Trim
1

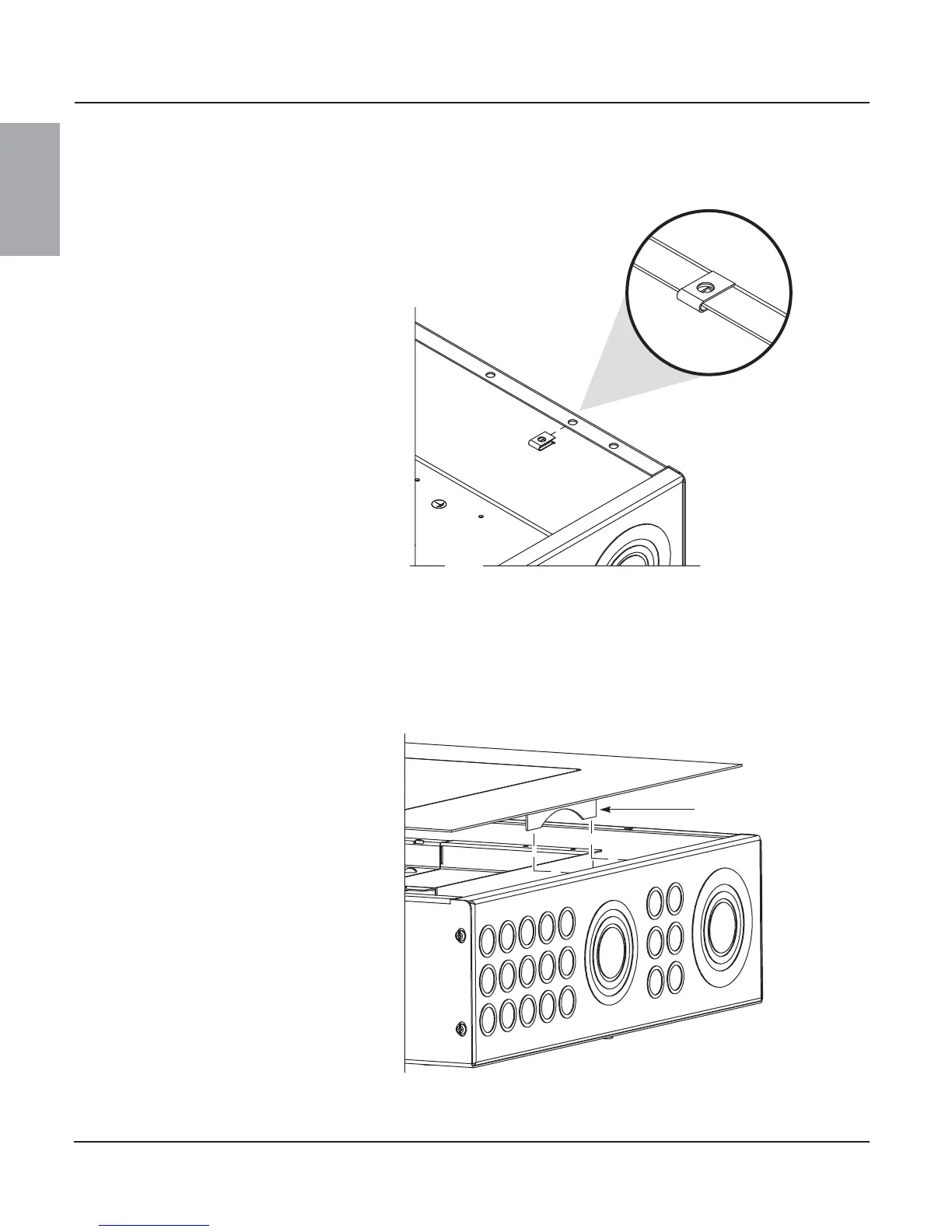

Install the spring nuts on the enclosure lip, over
the holes corresponding to the screw holes in
the trim front.
2
Place the support bracket located at the bottom
of the trim front on the enclosure lip, as shown.
Support bracket
To Next Page
