1 Monitoring with WindO/I-NV3
24-14 SmartAXIS Touch User's Manual

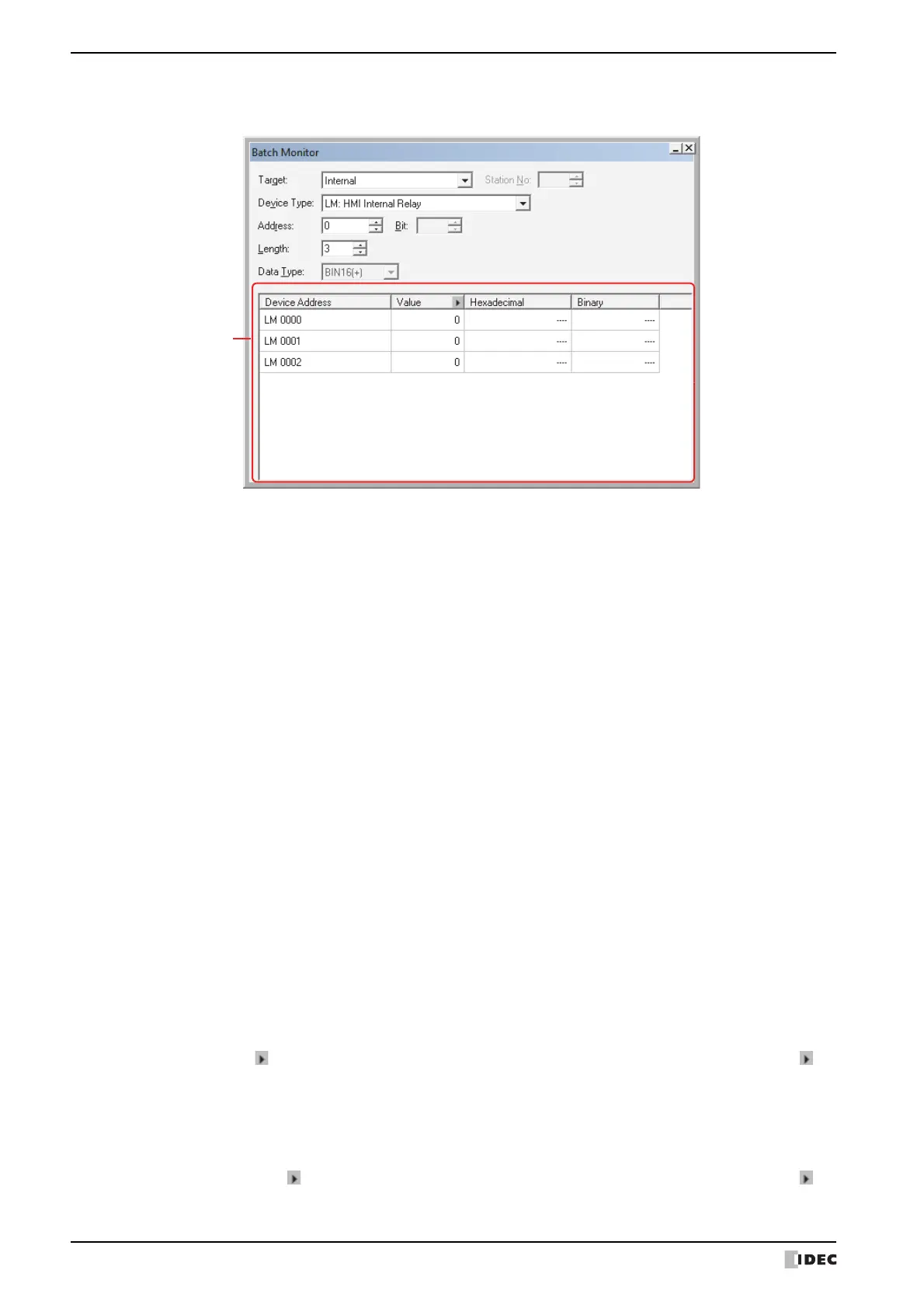

● Batch Monitor
Displays sequential addresses as a batch.
■ Target
Select Touch or External Devices from the device addresses that include the device addresses to be set.
■ Station No.
Specify the station number of the external device. The range of possible settings can be varies according to the
selected communication drivers.
This option can only be configured when 1:N Communication is selected under Connection in the Select
Communication Driver dialog box or the Change Communication Driver dialog box.
■ Device Type
Selects the device type.
The list only shows device types that can be used.
■ Address
Specify the address. The range that can be set varies based on the device type selected.
■ Bit
Specify the bit (0 to 15) of the word device when a word device is selected in Device.
■ Length
Specifies the number of device addresses displayed in the list (Bit of the word device specification: 1 to 16, Other
than above: 1 to 1000).
■ Data Type
Selects the data format of the displayed value. For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
■ (Monitor)
Automatically displays the selected device addresses, in the number specified under Length, from top to bottom,
consecutively.
Device Address: The specified device addresses are displayed.
toggles between showing and hiding comments. When comments are displayed, click to
display a popup menu, then click Comment and select the check box.
Value: Displays the current value of device address in decimal format. To change a value, double-
click a cell and then specify a value.
The value range depends on the data type. For details, refer to Chapter 2 “1.2 Available Data”
on page 2-2.
Click to toggle display of HEX and BIN format. To display HEX and BIN values, click to
display a popup menu, then click HEX and BIN and select the check box.
