IDEC SmartAXIS Touch FT1A Series User Manual

SmartAXIS Touch User's Manual 29-19
1 Touch
29

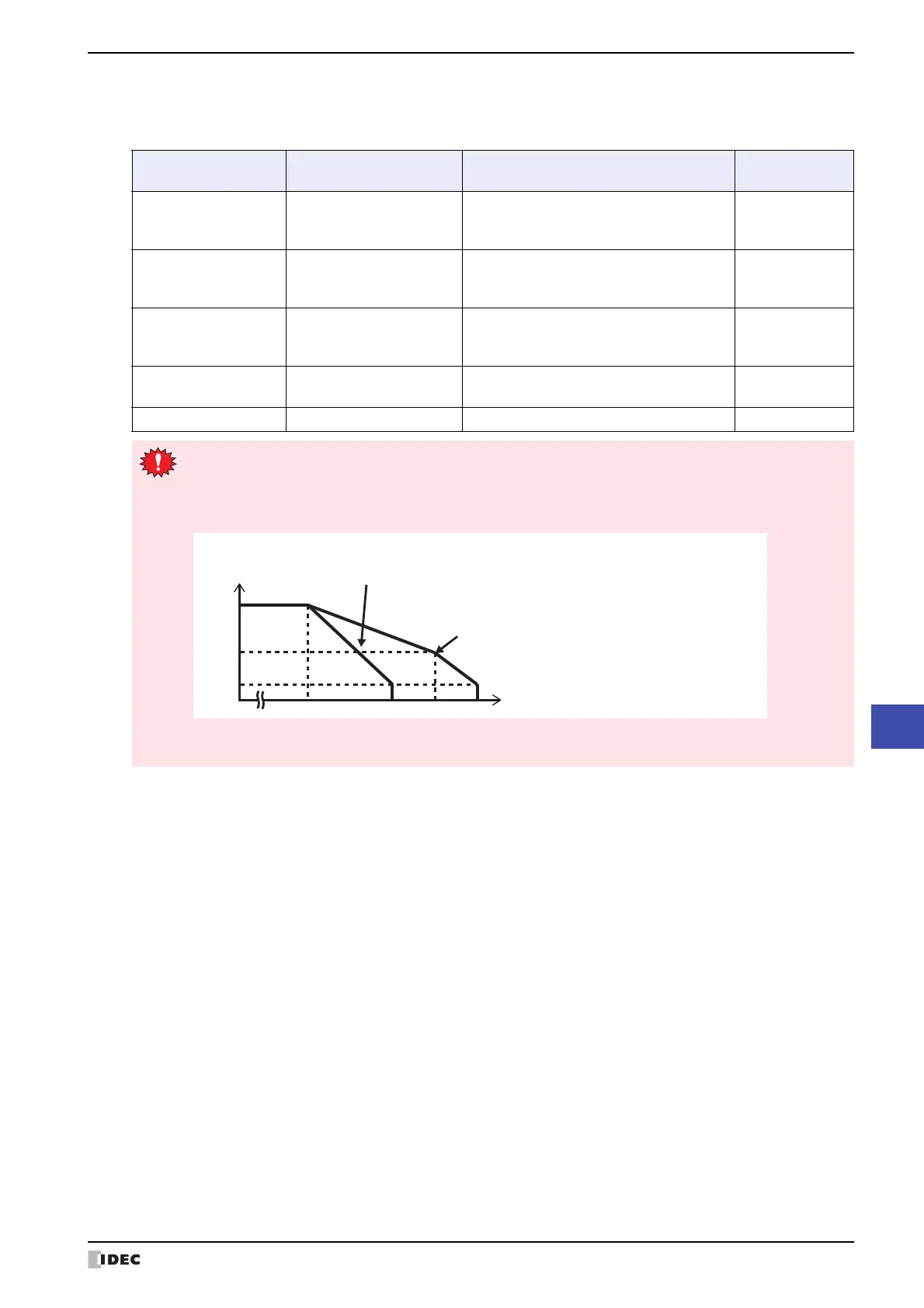

SmartAXIS Specifications
■ FT1A-*14KA/14SA
When used at ambient temperatures of 40ºC or higher, limit the usage of analog current output and the analog
cartridge as shown in the figure below.
Power Voltage
Range
Touch Analog Output Cartridge
Operating
Temperature
20.4 to 24V DC
Voltage/current output
cannot be used
Voltage output (FC6A-PK2AV)/
current output (FC6A-PK2AW)
cannot be used
55ºC
20.4 to 28.8V DC
Current output cannot be
used
Voltage output (FC6A-PK2AV)/
current output (FC6A-PK2AW)
cannot be used
50ºC
20.4 to 28.8V DC No restrictions
Voltage output (FC6A-PK2AV)/
current output (FC6A-PK2AW)
cannot be used
45ºC
20.4 to 28.8V DC
Current output cannot be
used
Current output (FC6A-PK2AW)
cannot be used
45ºC
20.4 to 28.8V DC No restrictions No restrictions 40ºC
If operating the FT1A-*14KA/14SA in a high-temperature environment, reducing the brightness of the
backlight can help to limit the temperature rise of internal components.
The relationship between ambient temperature and brightness is approximately as shown in the figure
below.
The values shown above may vary with individual products. Please use this information as a reference at
the time of design.
100%
40%
10%
0
30ºC 40ºC 55ºC
Brightness
Ambient Temperature
50ºC
Power Supply Voltage: 20.4 to 24 V
Unit Analog Output: Cannot be used,
Cartridge: Voltage/current output cartridge cannot be used
Power Supply Voltage: 20.4 to 28.8 V
Unit Analog: No restrictions,
Cartridge: No restrictions
