SmartAXIS Specifications
● Orientation
The Touch is designed to install on a vertical landscape. If you install it using any other orientation, confirm the
limitations about operating temperature and the use of the Touch.

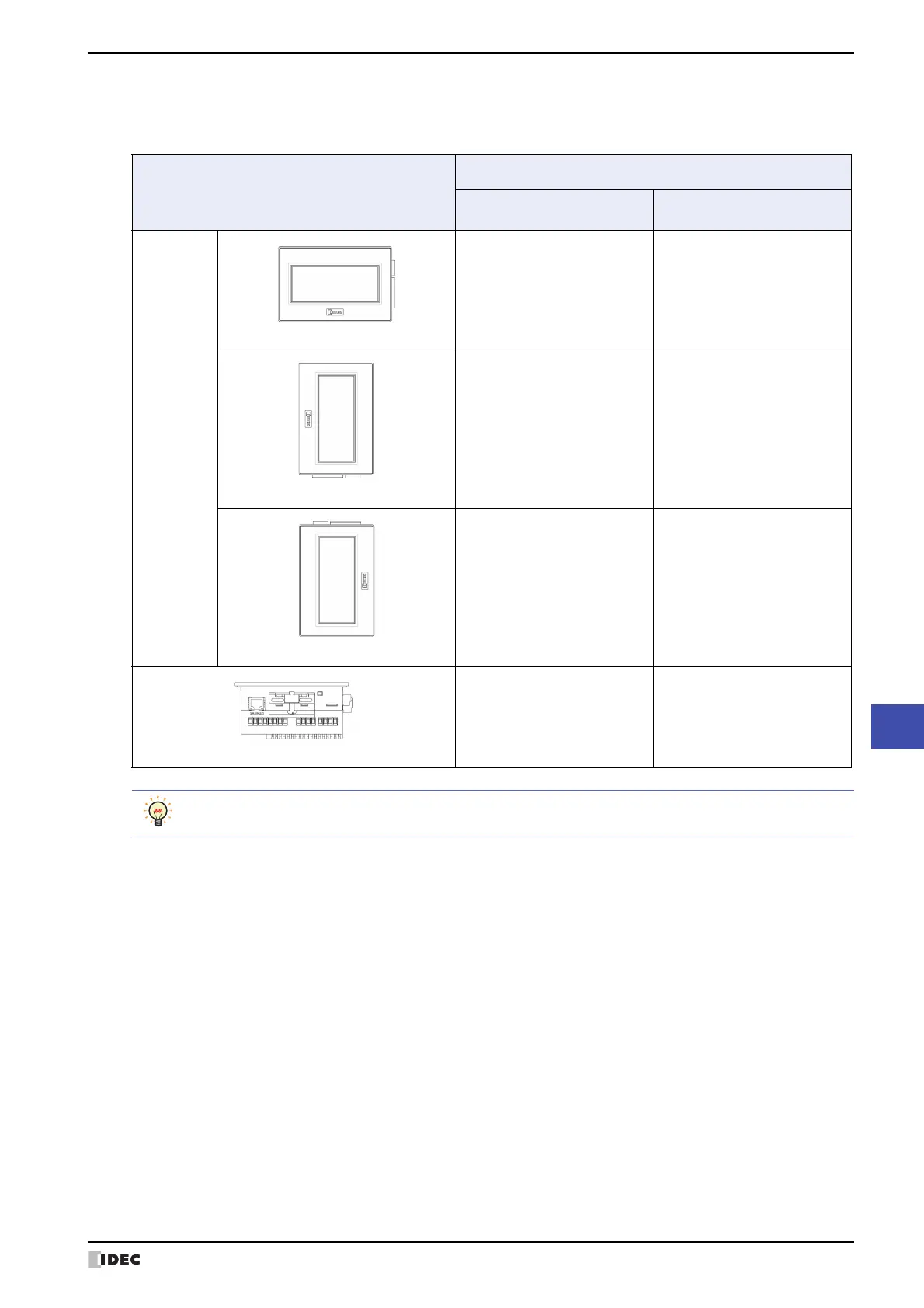

Orientation
Operating Ambient Temperature (no freezing)
FT1A-M
(Monochrome LCD models)
FT1A-C
(Color LCD models)
Vertical
Vertical landscape Portrait
0 to 55°C -20 to 55°C
Portrait (Clockwise)
0 to 50°C -20 to 50°C
Portrait (Counter Clockwise)
0 to 55°C -20 to 55°C
Horizontal
0 to 50°C -20 to 50°C
• When installing the Touch in a diagonal, the limitations are same as a horizontal.
• Confirm the visibility of the display in a final installation.
