1 Shapes
6-8 SmartAXIS Touch User’s Manual

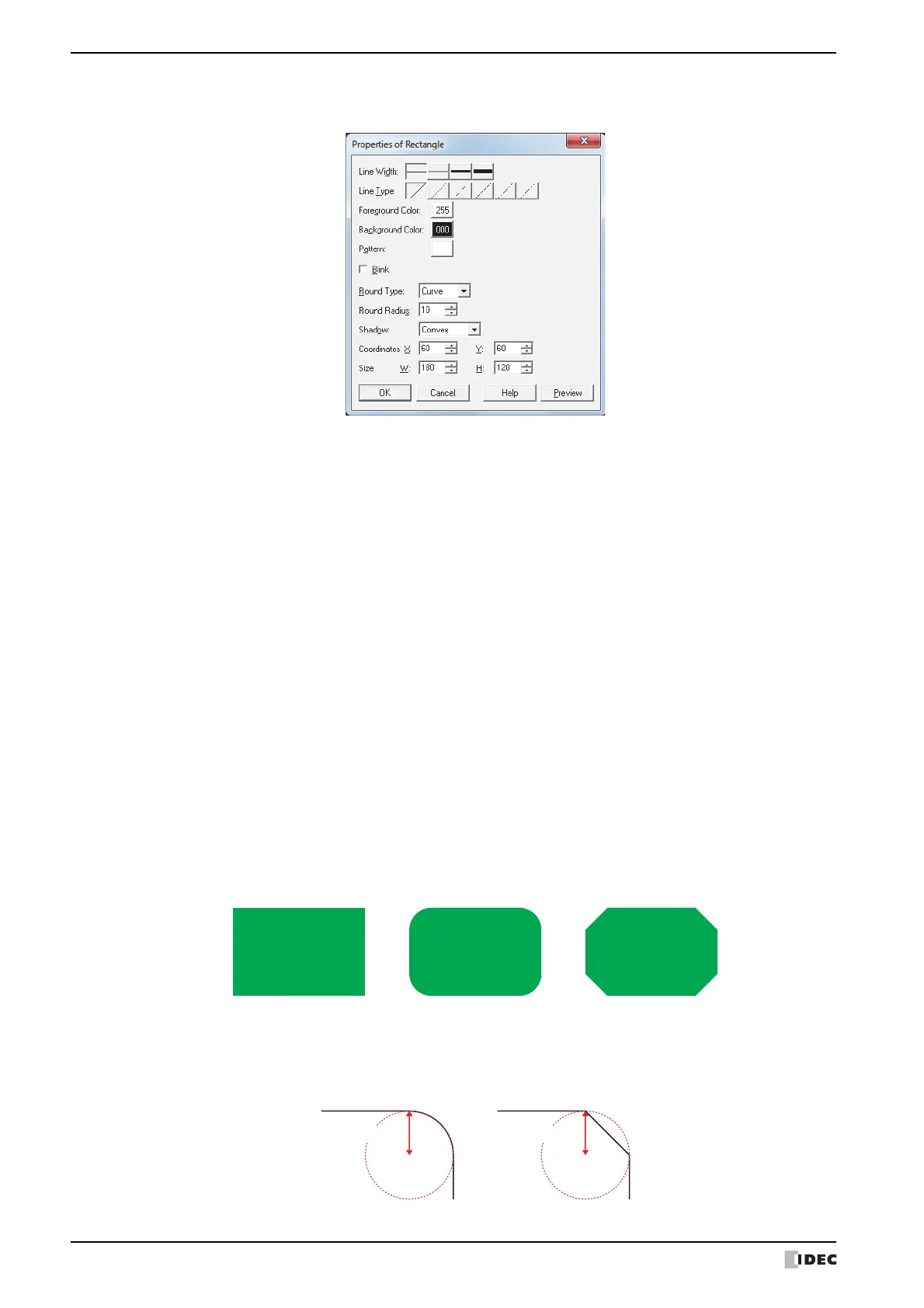

● Properties of Rectangle Dialog Box
This section describes items and buttons in the Properties dialog box.
■ Line Width
Selects the line width for the rectangle from the following.
1 dot, 3 dots, 5 dots
3 dots and 5 dots can only be configured when Solid is selected for Line Type.
■ Line Type
Selects the line type for the rectangle from the following.
Solid, Dot, Dash, Long Dash, Long Dash Dot, Long Dash Dot Dot
Dot, Dash, Long Dash, Long Dash Dot, and Long Dash Dot Dot can only be configured when 1 dot is selected
for Line Width.
■ Foreground Color, Background Color
Selects the foreground color and the background color to use for the rectangle (color: 256 colors, monochrome: 8
shades).
Click either button to display the Color Palette. Select a color from the Color Palette.
■ Pattern
Selects the pattern for the rectangle.
Click this button to display the Pattern Palette. Select a pattern from the Pattern Palette.
■ Blink
Select this check box to make the rectangle blink.
The blink interval is specified with Blinking Cycle on the System tab in the Project Settings dialog box.
■ Round Type
Selects the style of the rectangle's corners from the following.
None, Curve, Straight
■ Round Radius
Specifies the rounding radius (1 to 200). However, the range that can be configured is where round radius x 2 is a
value smaller than Size W and Size H.
This option can only be configured when Curve or Straight is selected for Round Type.
Curve StraightNone
For Curve For Straight
Round Radius Round Radius
