SmartAXIS Touch User’s Manual 7-5
1 Bit Button
7
Buttons
■ Destination Device
Specify the destination bit device.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.

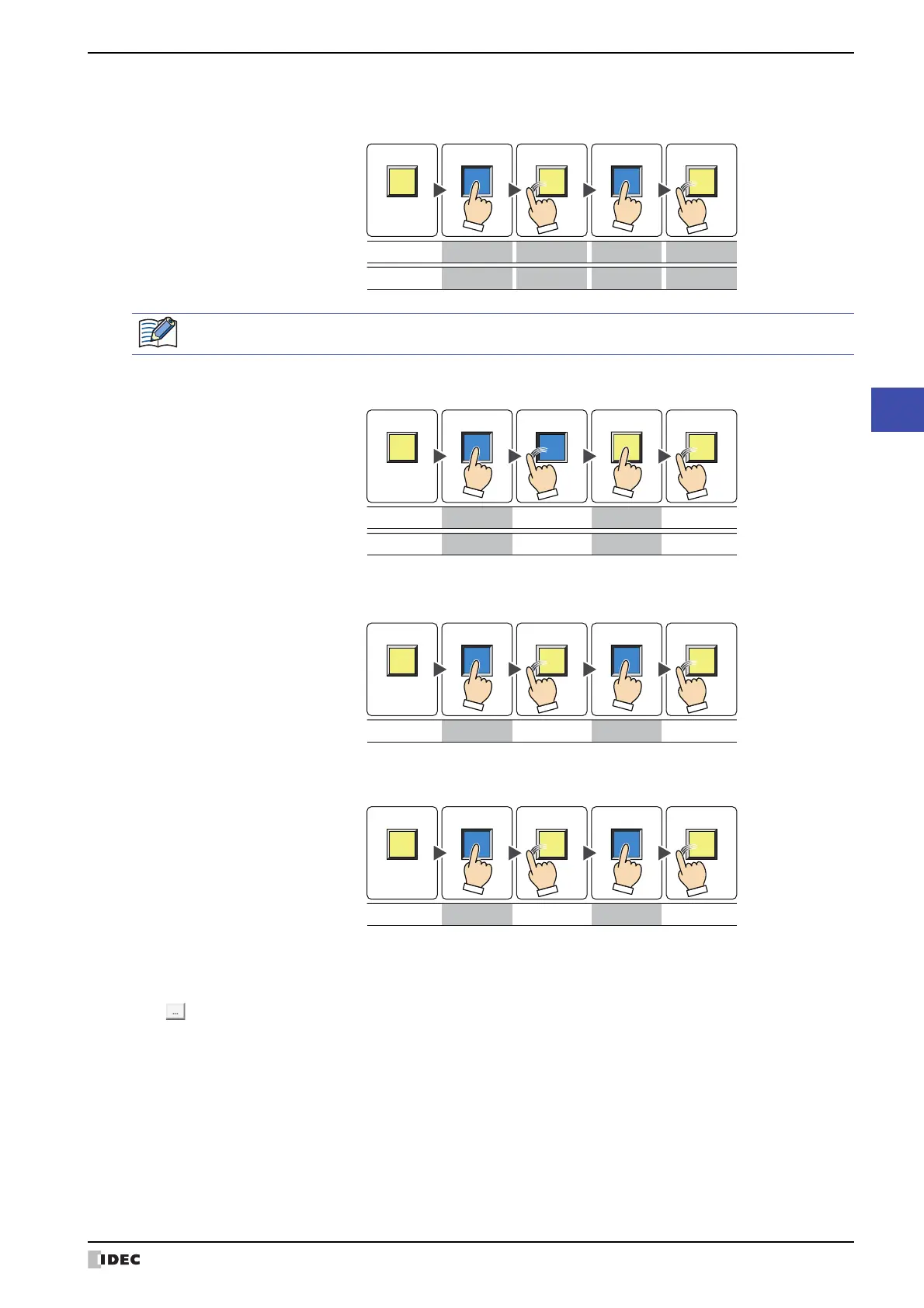

Momentary: Pressing the button writes a 1 to the bit device.
Releasing the button writes a 0 to the bit device.
Release
Initial image
Press ReleasePress
1
Operation and
view
Data written
10 0
Write
Action
WriteWrite Write
Pressing and holding the button until the screen changes causes a 0 to be written to the bit device.
Alternate: Each press of the button alternately writes a 1 or 0 to the bit device.
Toggle: Pressing the button inverts the value of the bit device.
If the value of the bit device is 0 it changes to 1, and vice versa.
Move: Pressing the button writes the value in the source bit device to the value in the destination bit
device.
Release
Initial image
Press ReleasePress
1
Operation and
view
Data written
0
Write
Action
Write
Release
Initial image
Press ReleasePress
Operation and
view
Toggle
Action
Toggle
Release
Initial image
Press ReleasePress
Move
Operation and
view
Action
Move
