1 Bit Button
7-6 SmartAXIS Touch User’s Manual

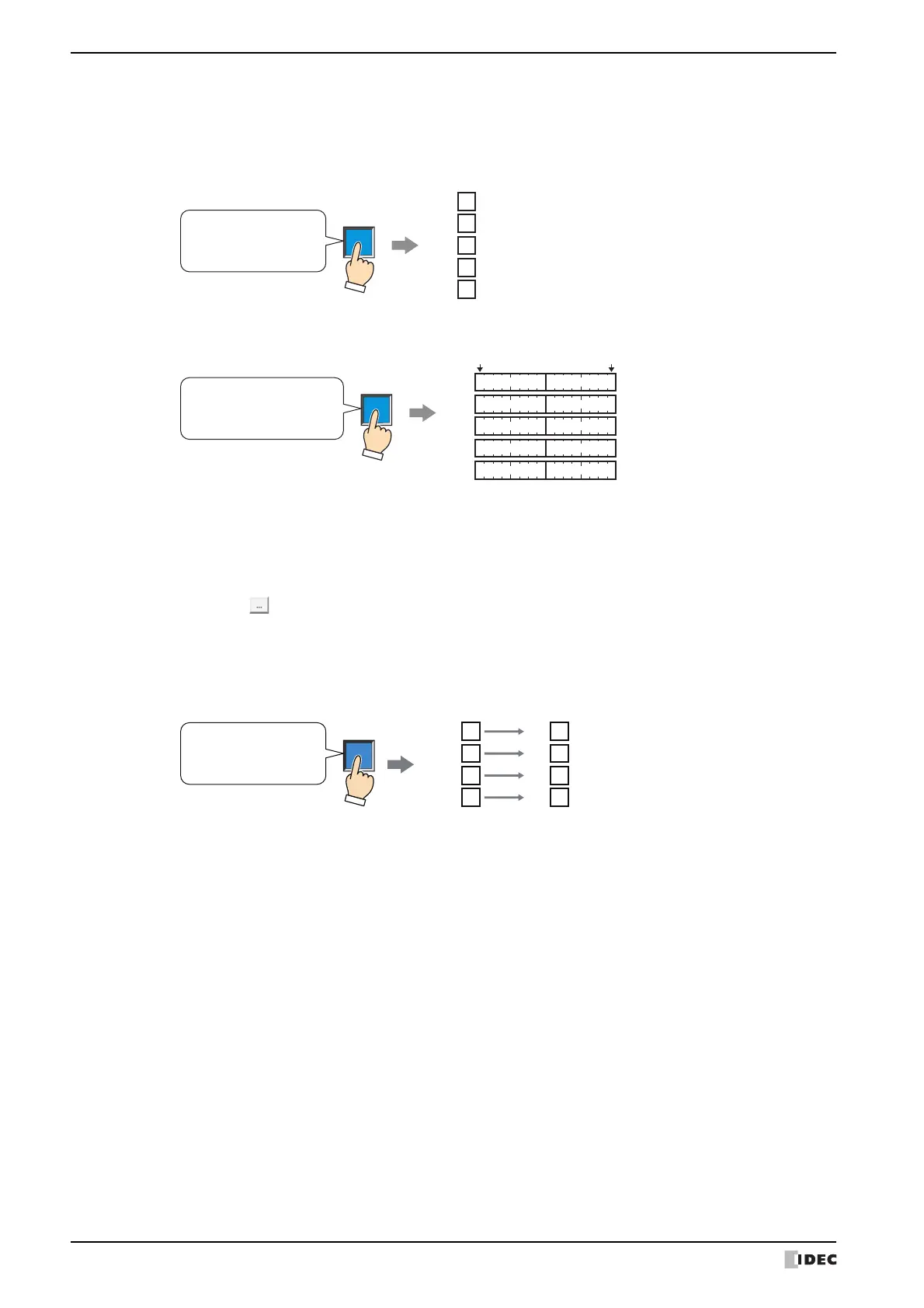

■ Write
Specify the number of bit devices (1 to 64) at the destination.
This setting is enabled only if Action Mode is set to Set or Reset.
Example: This fills a contiguous block of bit devices with the same value.
If the bit in a word device is specified, the same value is written to same bit of contiguous word devices.
■ Source Data
Specifies the device that stores the data to be written.
This setting is enabled only if Action Mode is set to Move.
Example: This button writes the values in a contiguous block of bit devices to a contiguous block of devices at the
destination.
*1 Advanced mode only
*1
1M0
1M1
1M2
1M3
1M4
Action Mode: Set
Write: 5
Destination Device: M0
bit bit
15 0
1D0
D1
D2
D3
D4
1
1
1
1
Action Mode: Set
Write: 5
Destination Device: D0-15
Device: Specify the source bit device.
Click to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
Transfer: Specify the number of bit devices (1 to 64) to transfer.
Device: LM0
Transfer: 4
1LM0
0LM1
0LM2
1LM3
Destination Device: M0
1M0
0M1
0M2
1M3
