IDEC SmartAXIS Touch FT1A Series User Manual

4 Key Button
7-56 SmartAXIS Touch User’s Manual

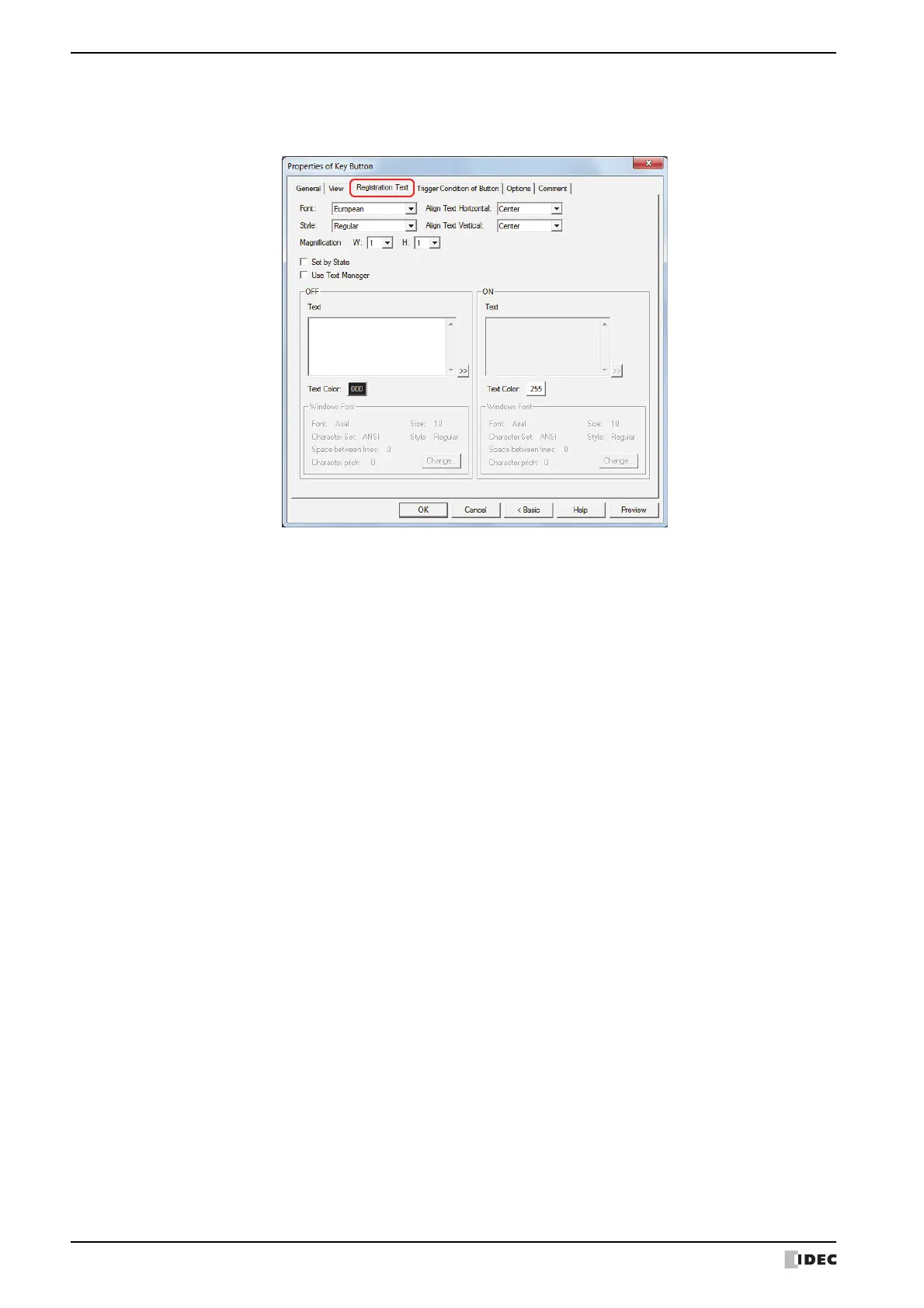

● Registration Text Tab
These options can only be configured when Button or Device is selected for View Switching Method on the
General tab.
■ Font
Selects the font used for displaying text from the following.
Japanese, European, Chinese, Taiwanese, Korean, Central European, Baltic, Cyrillic, Windows
Can only be set when the Use Text Manager check box is cleared.
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.3 Available Text” on page
2-6.
■ Style
Selects Regular or Bold for text style.
Can only be set when Font is set to Japanese, European, Chinese, Taiwanese, Korean, Central European,
Baltic or Cyrillic.
■ Magnification
Can only be set when Font is set to Japanese, European, Chinese, Taiwanese, Korean, Central European,
Baltic or Cyrillic.
■ Align Text Vertical
Selects text alignment in the vertical direction.
Top, Center, Bottom
For details, refer to Appendix “5 Text Alignment” on page A-5.
■ Align Text Horizontal
Selects text alignment in the horizontal direction.
Left, Center, Right, Center-Left
For
details, refer to Appendix “5 Text Alignment” on page A-5.
■ Set by State
Select this check box if displaying different text when ON and OFF.
■ Use Text Manager
Select this check box if using the text registered in Text Manager for text display.
W, H: Selects the magnification (0.5, 1 to 8) for text display.
