SmartAXIS Touch User’s Manual 7-101
7 Selector Switch
7
Buttons
View Tab
Browse

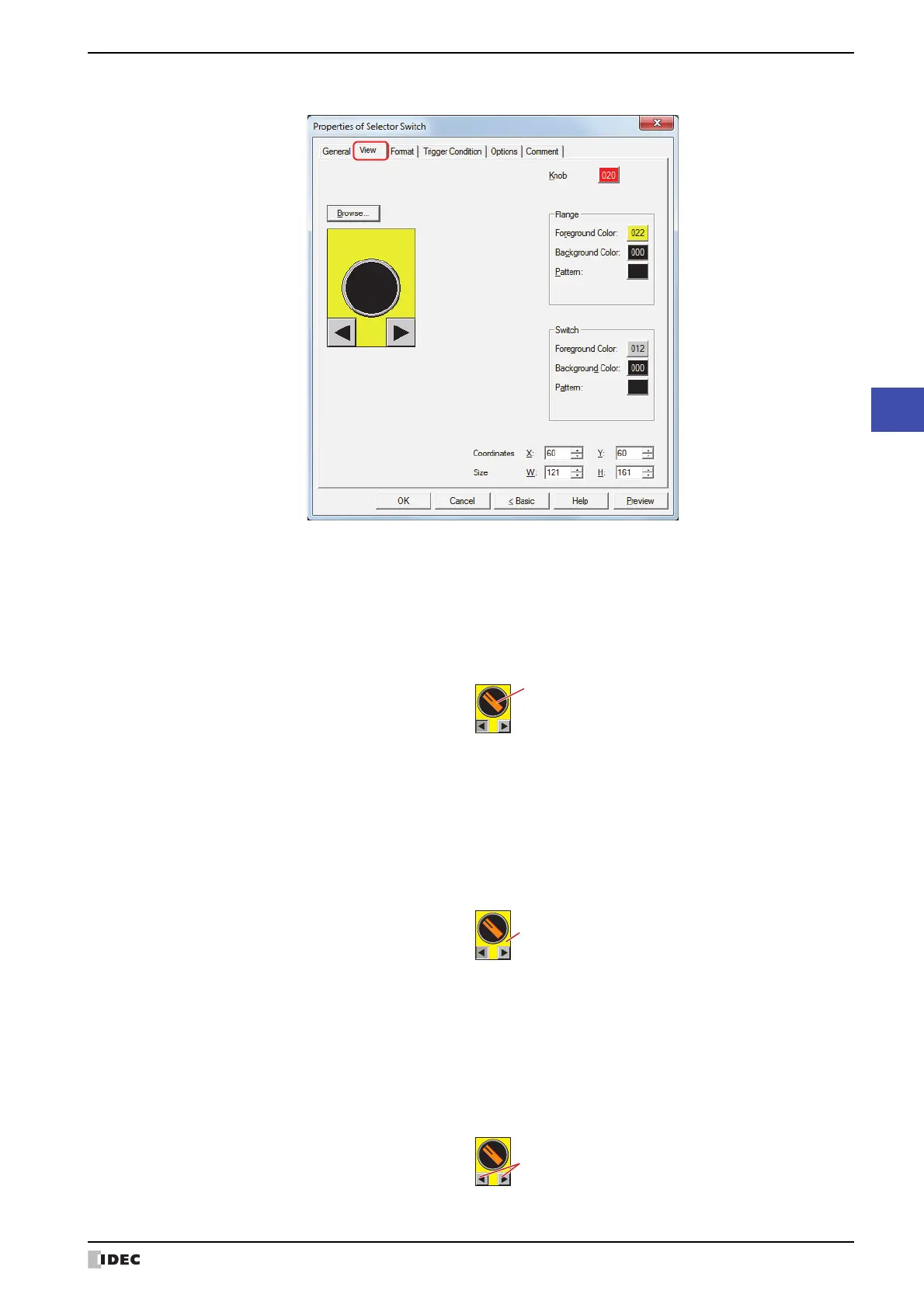

Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser.
Knob
Selects the knob color of the Selector Switch (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
Flange
Switch
Knob
Foreground Color, Background Color: Selects the foreground and background colors of the flange (color: 256
colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the
Color Palette.
Pattern: Selects a pattern for the flange.
Click the Pattern button to display the Pattern Palette. Select a pattern from
the Pattern Palette.
Flange
Foreground Color, Background Color: Selects the foreground and background colors of the buttons (color: 256
colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the
Color Palette.
Pattern: Selects a pattern for the button.
Click the Pattern button to display the Pattern Palette. Select a pattern from
the Pattern Palette.
Buttons
