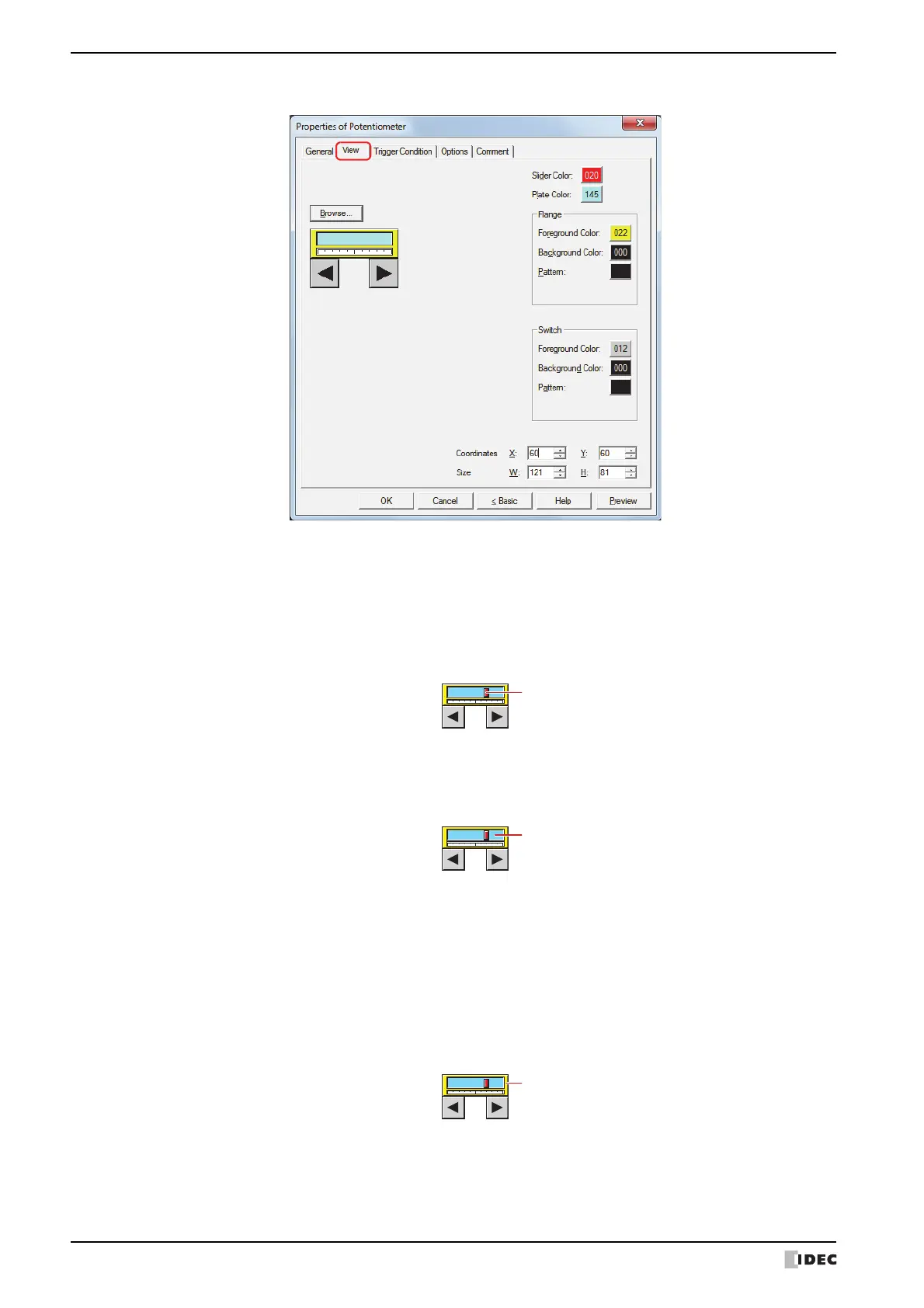

● View Tab
■ Browse
Select the type of graphic to be used to represent the part from the list of graphics. Click this button to display the
View Browser.
■ Slider Color
Selects the slider color of the Potentiometer (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
■ Plate Color
Selects the plate color (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
■ Flange
Slider
Plate color
Foreground Color, Background Color: Selects the foreground and background colors of the flange (color: 256
colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the
Color Palette.
Pattern: Selects a pattern for the flange.
Click the Pattern button to display the Pattern Palette. Select a pattern from
the Pattern Palette.
Flange
