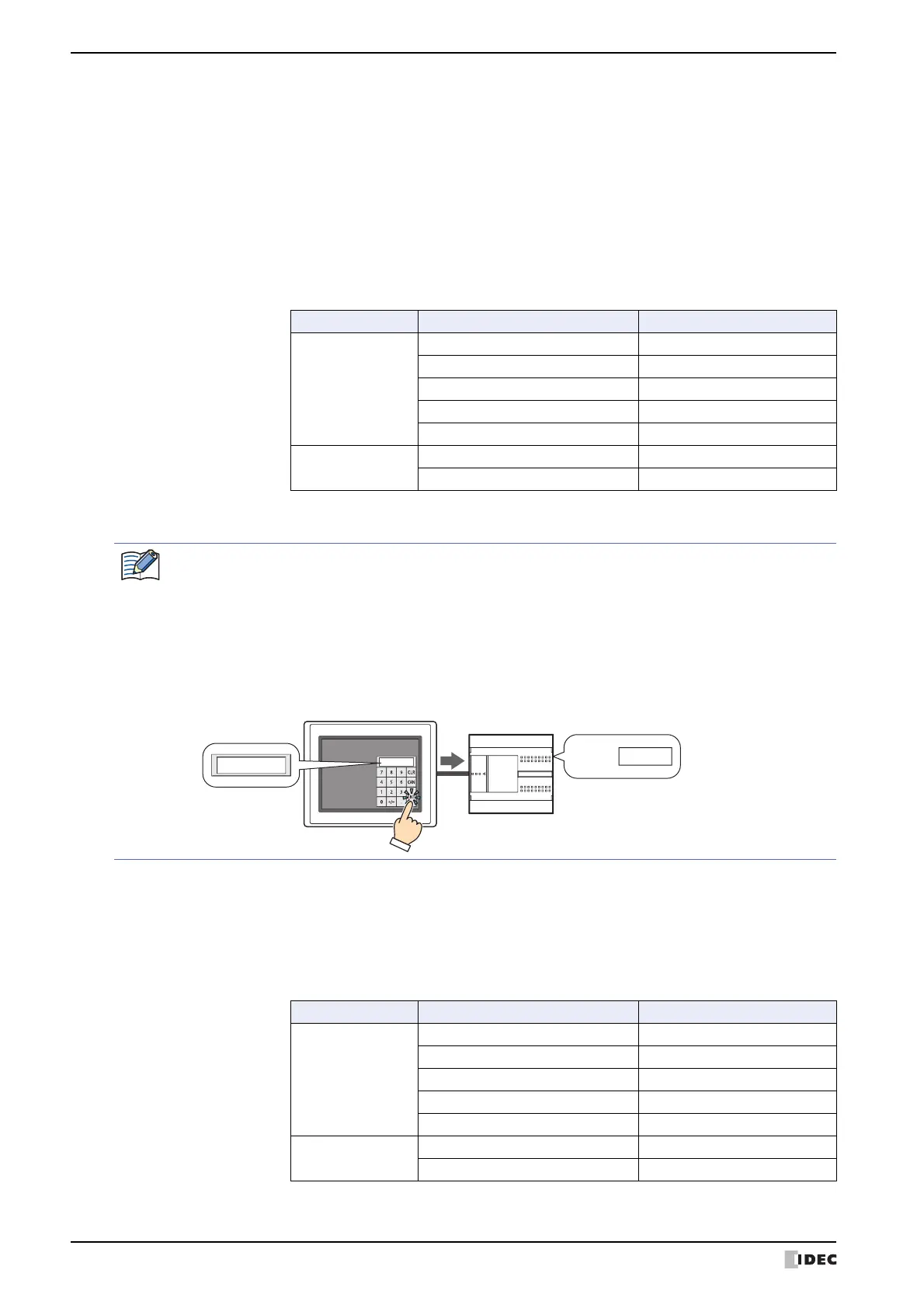

1 Numerical Input
9-4 SmartAXIS Touch User’s Manual
■ Display Type
Selects the display type for the value as Decimal or Hexadecimal.
■ Data Format
Data Type: Selects the type of data for the value.
The data type that can be configured differs according to Display Type. For the data
types that can be configured, see the table for Digits.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
Digits: Specifies the digits to display. The range of digits that can be set varies based on the
display type and data type. The digits that can be set are as follows.
Display Type Data Type Digits
Decimal display
BIN16 (+), BIN16 (+/-) 1 to 5
BIN32 (+), BIN32 (+/-) 1 to 10
BCD4 1 to 4
BCD8 1 to 8
float32 1 to 10
Hexadecimal
display
BIN16 (+) 1 to 4
BIN32 (+) 1 to 8
Display Floating Point: Select this check box to display the decimal point.
If Data Type is BIN16(+), BIN16(+/-), BIN32(+), BIN32(+/-), BCD4, or BCD8 and the Display
Floating Point check box is selected, a decimal value will be displayed on the Numerical Input when a
decimal value is entered on the keypad in entry mode, but an integer is written to the device. In display
mode, source data is an integer, but the value is displayed with a decimal point added at the number of
floating digits configured for the Numerical Input.
However, if float32 is selected for Data Type, both the destination data and the source data are decimal
values.
Example: When Display Type is configured as Decimal, Data Type is BIN16(+), the Display Floating
Point check box is selected, Digits is 5, Floating Digits is 3, and Destination Device is D100
External device
Touch
12.345
D100:
12345
12.345
Floating Digits: Specifies the number of digits for the fractional part of the decimal value out of the
number of digits specified by Digits.
This option can only be configured when the Display Floating Point check box is
selected. The range of digits that can be set for the fractional part varies based on the
display type and data type. The range of digits that can be set for the fractional part is as
follows.
Display Type Data Type Floating Digits
Decimal display
BIN16 (+), BIN16 (+/-) 1 to Digits
BIN32 (+), BIN32 (+/-) 1 to Digits
BCD4 1 to Digits
BCD8 1 to Digits
float32 1 to 8
Hexadecimal
display
BIN16 (+) --
BIN32 (+) --
