SmartAXIS Touch User’s Manual 9-13
1 Numerical Input
9
Data Displays
■ When Data Over
These options configure the operation of the part when the value entered with the keypad exceeds the allowable
range.
These options can only be configured when the Minimum or Maximum check boxes are selected under Range.
Example: If you attempt to enter “140”, which is higher than the maximum of “100”, or “-10”, which is lower than the
minimum of “0”, the value is not written and “?” is displayed. 1 is written to When Data Over report
device LM0.
Report: Select this check box and specify the report device to write 1 in this device when the entered data or
the value of device to display exceeds the allowable range.
Click to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.

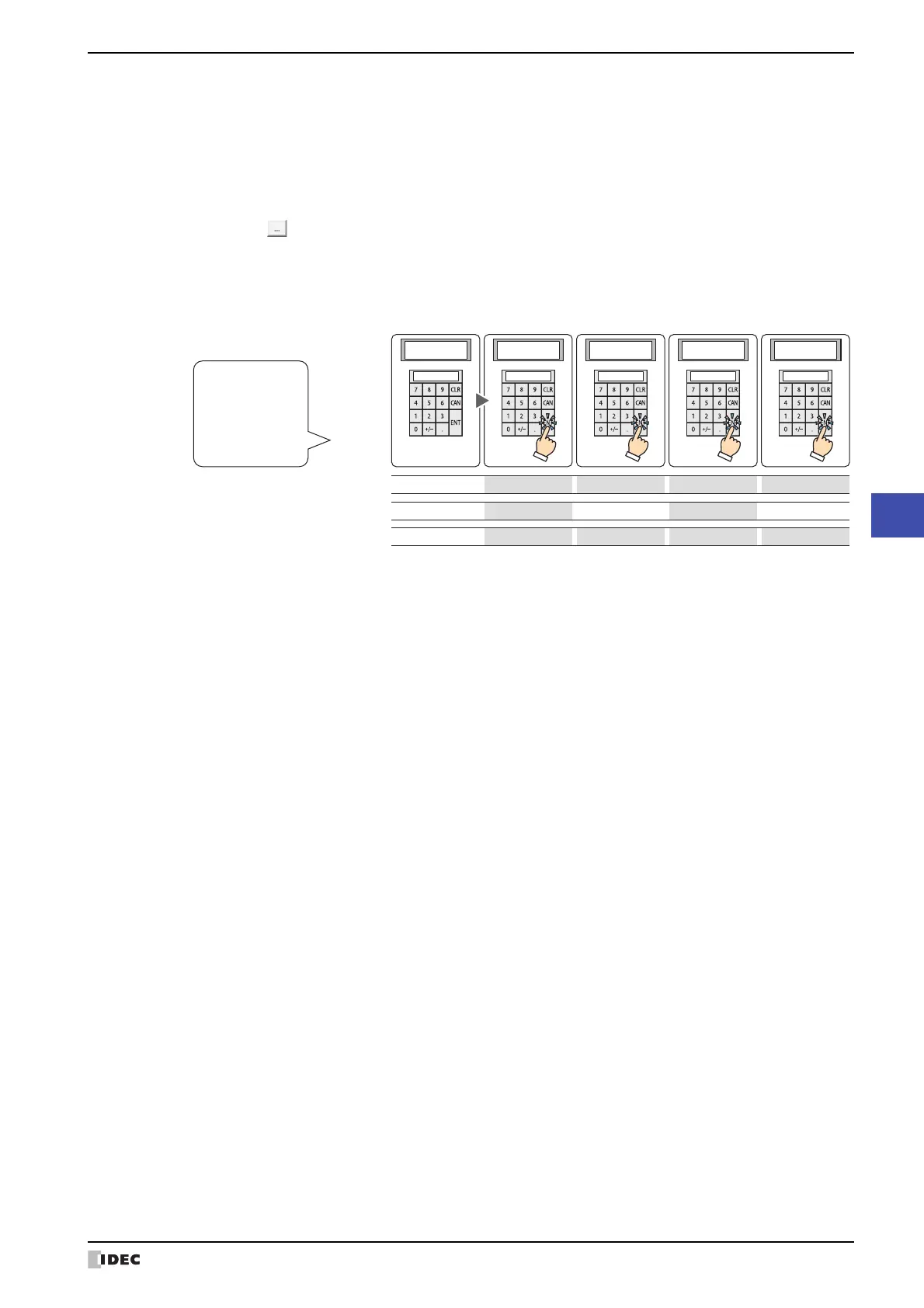

Operations
and
display
0
0
Entered data
80
80
80
?????
10
10
80
Written data
140
10
?????
10
80
10
-10
Data over notification: LM0
10 0
1
Range: Value
Minimum: 0
Maximum: 100
When Data Over
Report: Selected
Report device: LM0
