● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
■ Input Condition
The Numerical Input is enabled and operational while the condition is satisfied. The Numerical Input is disabled and
not operational while the condition is not satisfied.
Example: When Trigger Type is While ON, Device is LM0
While LM0 is 0, the condition is not satisfied and the Numerical Input is not operational.
While LM0 is 1, the condition is satisfied and the Numerical Input is operational.

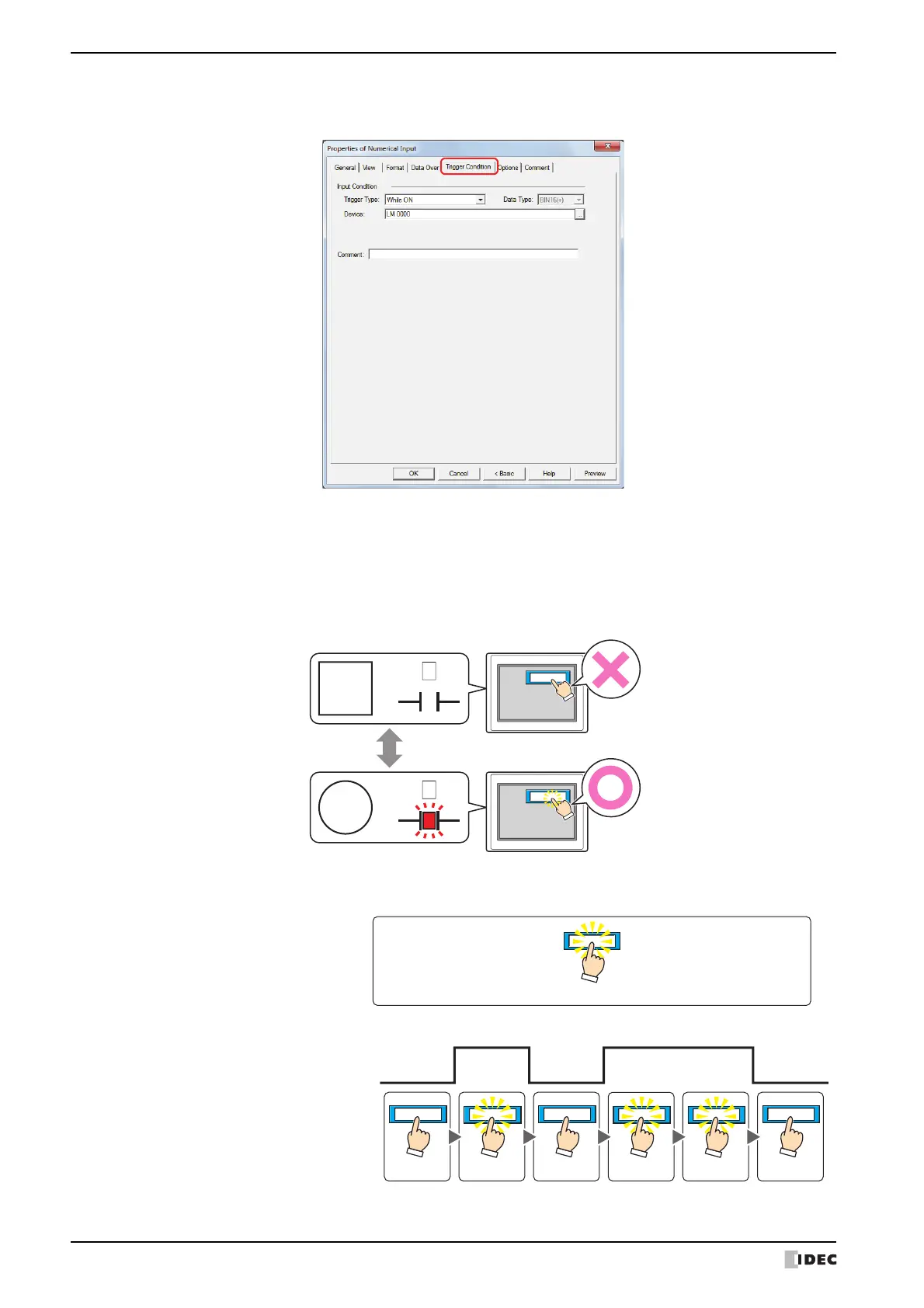

Trigger Type: Selects the condition to enable the Numerical Input from the following.
Always Enabled: The Numerical Input is always enabled.
While ON: Enables the Numerical Input when the value of device is 1.
LM0
:
Touch
Condition
Not
satisfied
0
LM0
:
Condition
Satisfied
1
Operational
123
123
Not
operational
Always Enabled
Numerical Input
state
123
1
0
Disabled
Enabled
Disabled Disabled
Enabled Enabled
Value of Device
Numerical Input
state
123
123
123 123
123 123
