1 Numerical Input
9
Data Displays
While OFF: Enables the Numerical Input when the value of device is 0.
While satisfying the condition:
Enables the Numerical Input when the condition is satisfied.
Data Type: Selects the type of data handled by the conditional expression for the input condition.
This option can only be configured if While satisfying the condition is selected for Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
Device: Specifies the bit device or bit of the word device to serve as the input condition.
This option can only be configured when While ON or While OFF is selected for Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
Condition: Specifies the conditional expression for the input condition.
This option can only be configured when While satisfying the condition is selected for Trigger
Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression
configuration procedure, refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.
Comment: Enter a comment for the input condition. The maximum number is 80 characters.
1
0

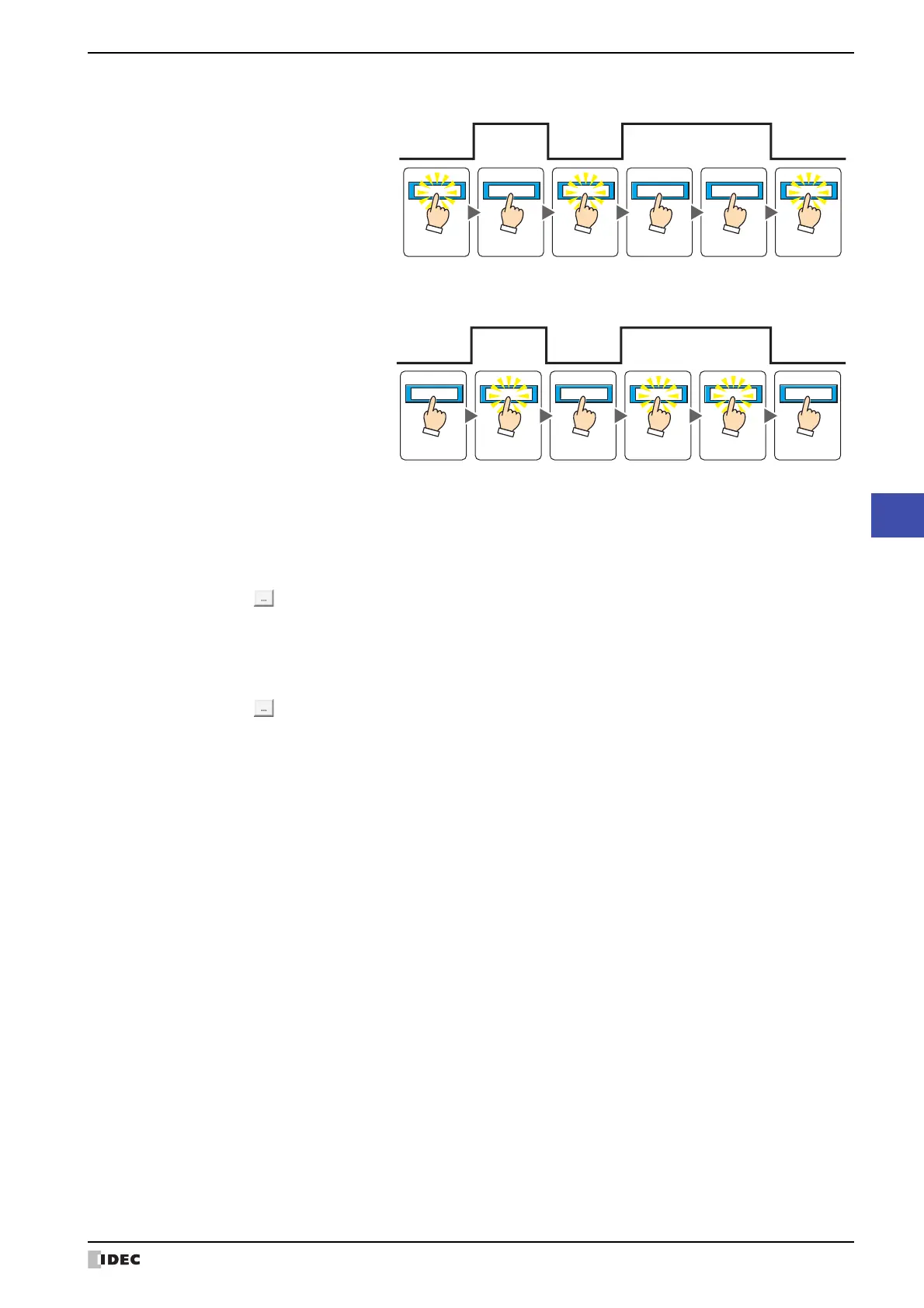

Enabled Enabled EnabledDisabled Disabled Disabled
Value of Device
Numerical Input
state
123 123 123123 123 123
Satisfied
Not satisfied
Disabled Disabled Disabled
Enabled Enabled Enabled
Numerical Input
state
Condition
123 123 123
123 123 123
