SmartAXIS Touch User’s Manual 9-49
3 Picture Display
9
Data Displays
Data Type
Selects the data type handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
Device
Specifies the bit device or bit of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration procedure,
refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.
Comment
Enter a comment about trigger conditions. The maximum number is 80 characters.

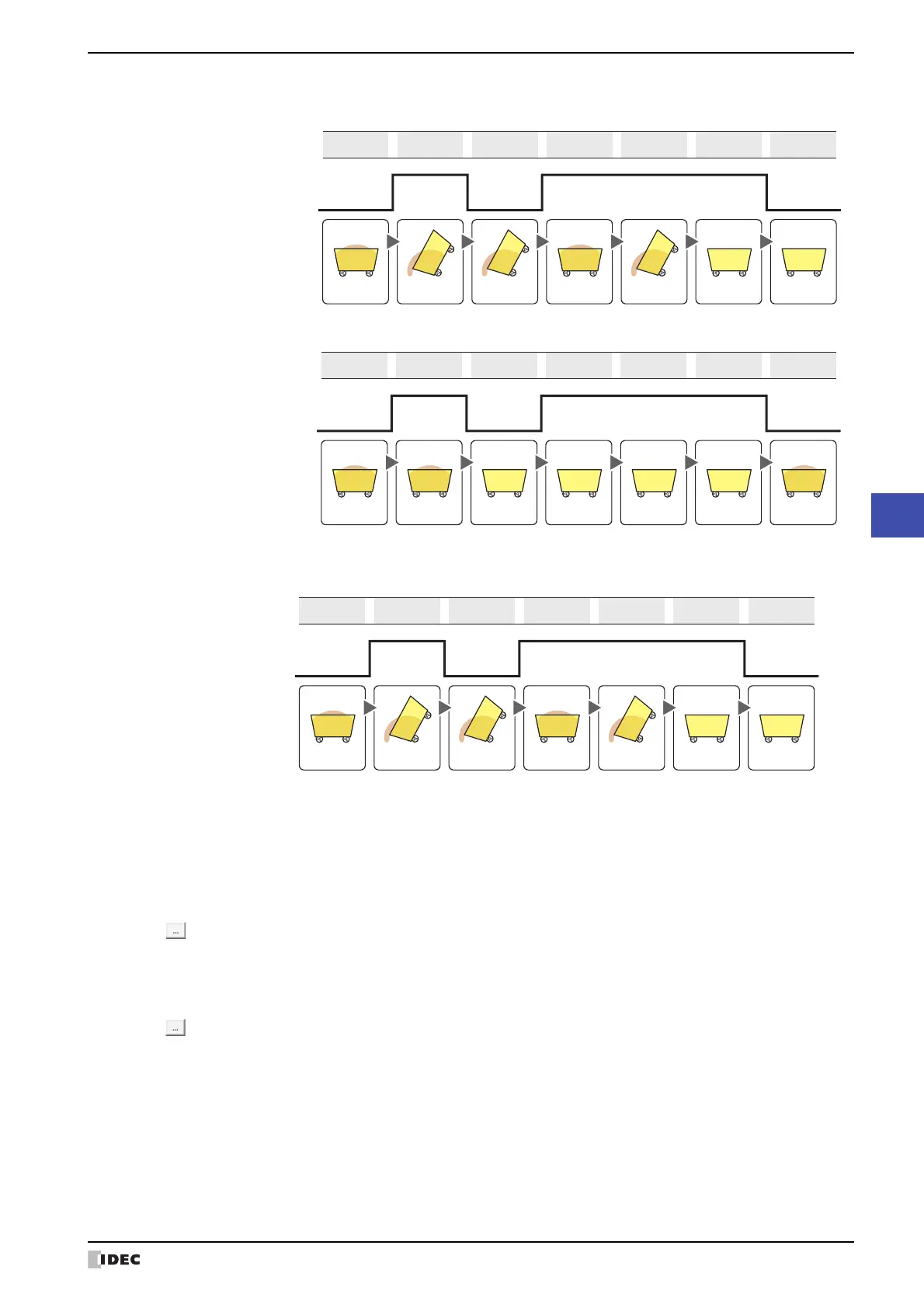

While ON: Enables the Picture Display when the value of device is 1.
Example: When While not satisfying the condition is Not update Picture data
While OFF: Enables the Picture Display when the value of device is 0.
Example: When While not satisfying the condition is Not update Picture data
While satisfying the condition:
Enables the Picture Display when the condition is satisfied.
Example: When While not satisfying the condition is Not update Picture data
Value of Device
1
0
Update
Do not update Do not update Do not update
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update Update Update
Value of Device
1
0
Update
Do not update Do not update Do not update Do not update
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update
Update
Update
Do not update Do not update Do not update
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update Update Update
Satisfied
Not satisfied
Condition
