3 Picture Display
9-48 SmartAXIS Touch User’s Manual

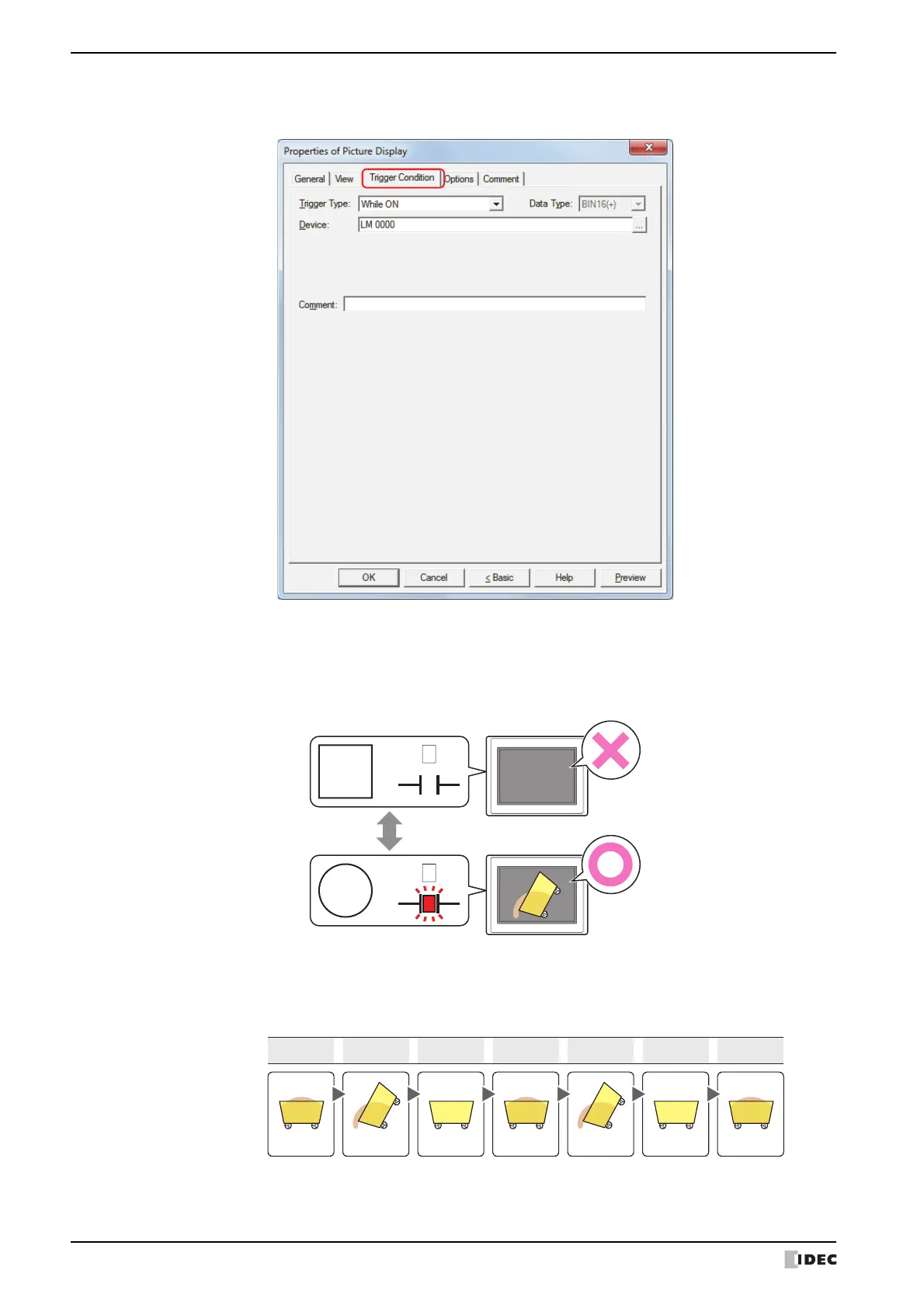

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
The Picture Display is enabled while the condition is satisfied, and it is disabled while the condition is not satisfied.
Example: When Trigger Type is While ON, Device is LM0
While LM0 is 0, the condition is not satisfied and the Picture Display does not display the picture.
While LM0 is 1, the condition is satisfied and the Picture Display displays the picture.
■ Trigger Type
Selects the condition to enable the Picture Display from the following.
LM0
:
Touch
0
LM0
:
1
Condition
Not
satisfied
Condition
Satisfied
Show
Hide
Always Enabled: The Picture Display is always enabled.
Display
Data Pic0 Pic1 Pic2 Pic0 Pic1 Pic2 Pic0
Update Update Update Update Update Update Update
To Next Page
Loading...
