SmartAXIS Touch User’s Manual 9-47

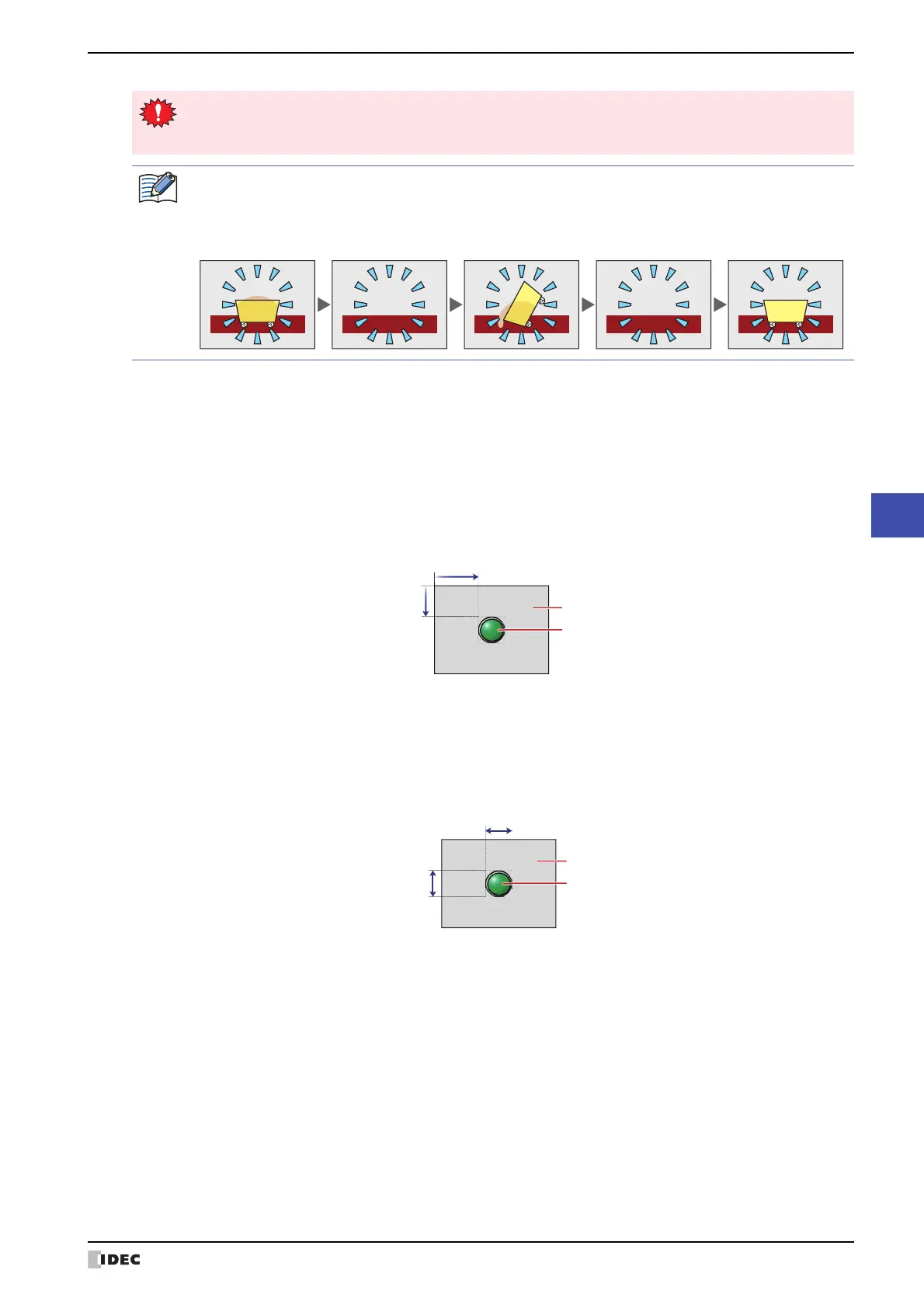

3 Picture Display
9
Data Displays
■ Image
Displays picture for the Pic number that has been selected in the Picture List.
■ Coordinates
■ Size
If the Recover Background check box is selected, the number of parts that can be placed on a single
screen decreases. If an error message appears when the Picture Display is displayed on the Touch screen,
clear the Recover Background check box or reduce the number of parts.
•When the Dynamic Position check box or the Dynamic Size check box is selected on the General tab,
the Recover Background check box cannot be selected.
•When the Recover Background check box and the Blink check box on the General tab are selected,
the picture is repeatedly displayed and hidden.
X, Y: Sets the display position of parts using coordinates.
The X and Y coordinates of parts is defined relative to an origin at the top-left corner of the screen.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
(0, 0)
X
Y
Screen
Parts
W, H: Sets width and height to define the size of parts.
W: 2 to (Base Screen horizontal size)
H: 2 to (Base Screen vertical size)
Width
Height
Screen
Parts
