SmartAXIS Touch User’s Manual 9-61
4 Message Display
9
Data Displays
■ Vertical Writing
Select this check box when displaying text vertically.
■ Align Text depending on the length of the Displayed message
*1
Select this check box to align text as standard to the number of characters that will be displayed.
When cleared, the maximum number of characters (set number of words) is always aligned as standard.
Example: When there are 2 characters of text to always display on the first line, 6 characters of text to always display
on the second line and 6 characters of text (3 words) to display according to values of device, Align Text
Horizontal is set to Center, and the text to display according to values of device is blank (when only 6
characters are always displayed on the second line)
■ Text Color
Selects the color of displayed text (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
*1 Advanced mode only

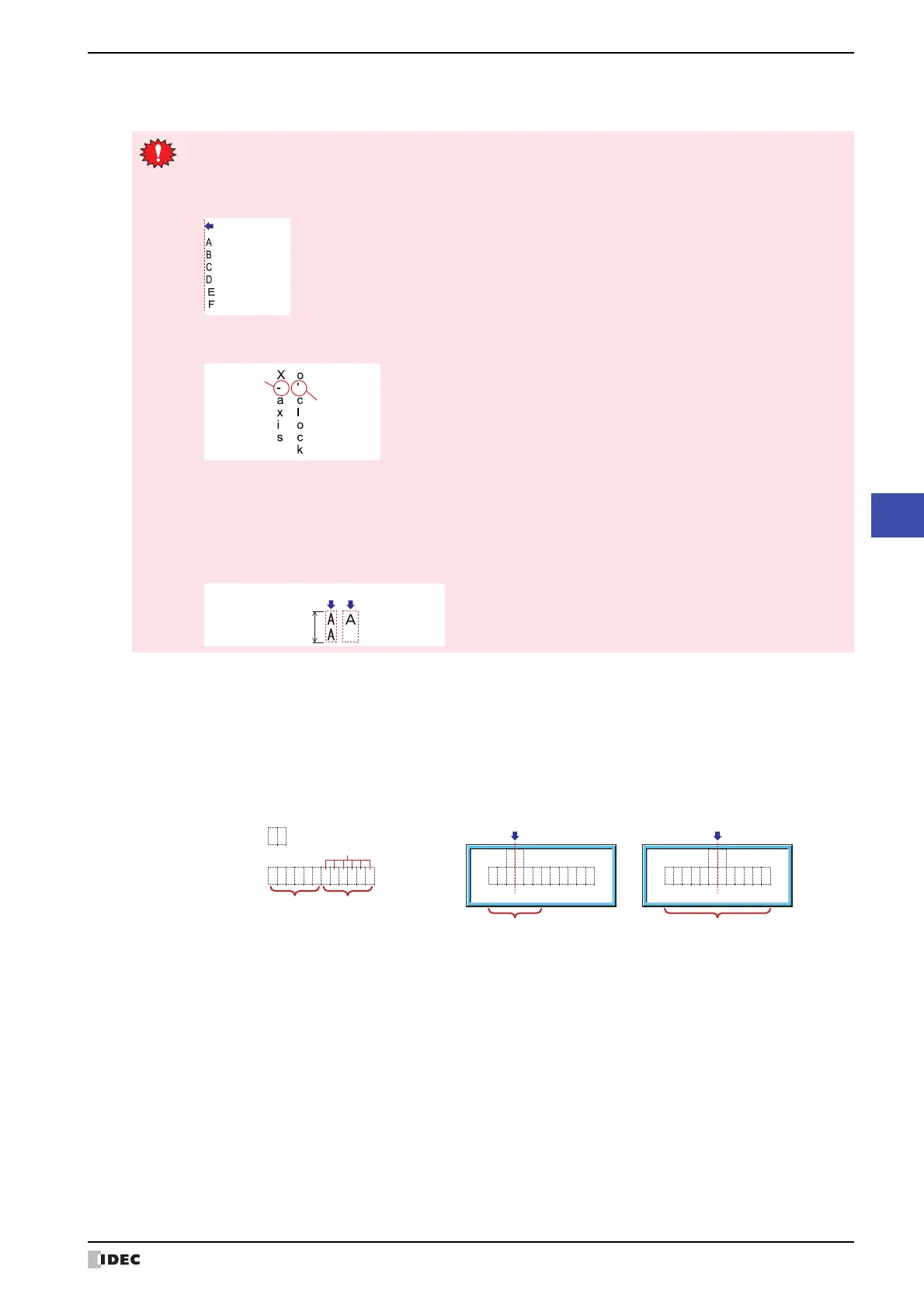

When the Vertical Writing check box is selected, take care about the following points. This is applicable
for Windows supports East Asian characters.
• When there is a mixture of double-byte and single-byte characters, the half-width characters are left-
aligned.
• Dashes are displayed horizontally. Symbols representing voiced and semi-voiced sounds of single-byte
characters are shown as follows.
• When using text displayed according to values of devices, the characters are counted as single-byte
characters and the display area for the characters is indicated by dotted lines. Therefore, when the text
to display according to values of devices is double-byte characters, the display area actually required
differs from the area indicated by the dotted lines.
Example: When 1 word of text to display according to values of devices is set to vertical writing, the
vertical size of the dotted lines is displayed as 2 single-byte characters.
Aligned to
left edge
Horizontal
display
Next
characters
2 single-byte chars. 1 double-byte char.
Dotted line frame is
2 chars. High
Check box: ClearedCheck box: Selected
Always show Show according to
values of device
E FCDAB E FCAB
AB
AB
D E FCAB
AB
D
Characters to show Maximum characters
1st line text :
2nd line text :
Blank
