SmartAXIS Touch User’s Manual 9-63
4 Message Display
9
Data Displays

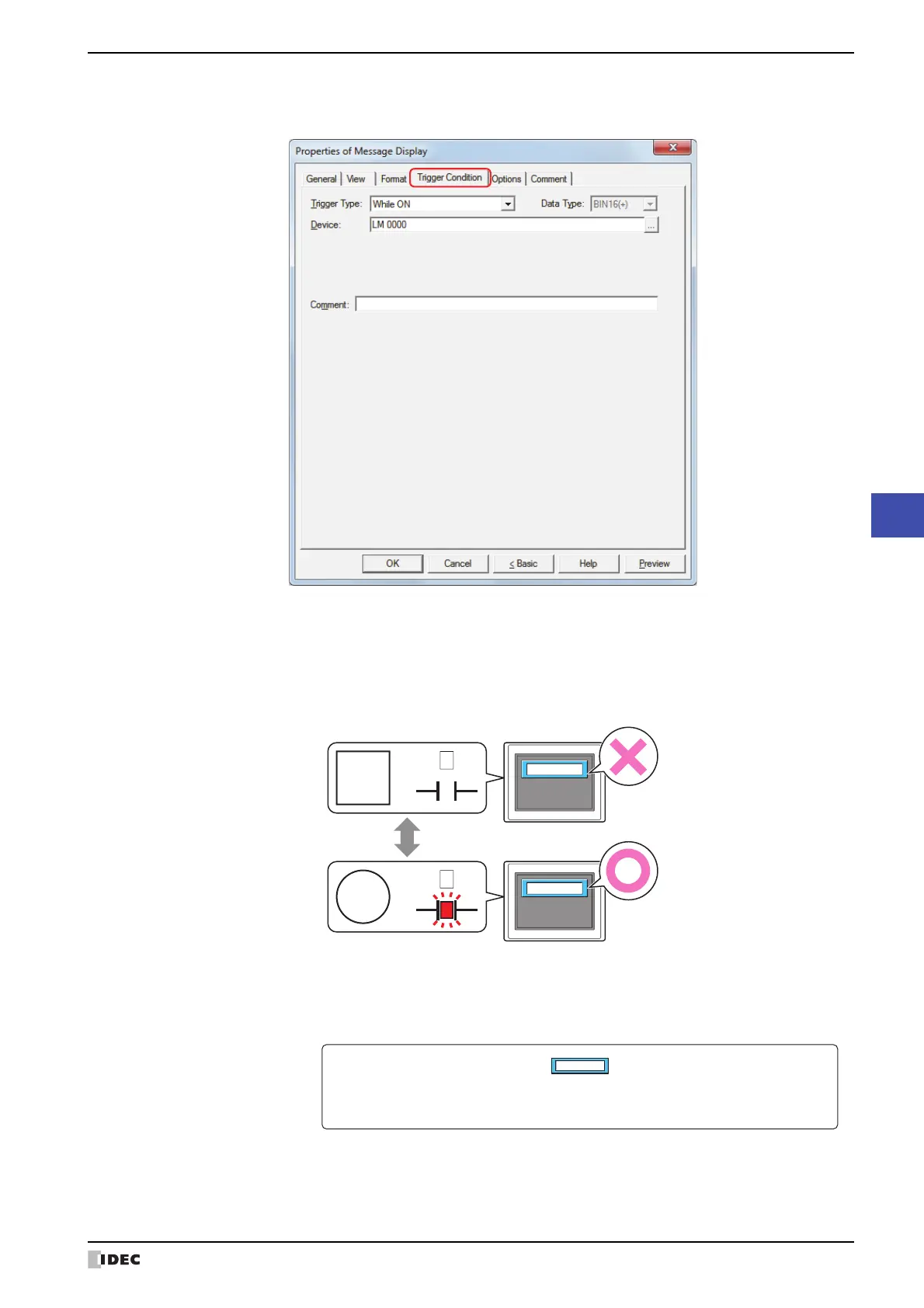

Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
The Message Display is enabled while the condition is satisfied, and it is disabled while the condition is not satisfied.
When disabled, the plate and flange are displayed, but the message is not displayed.
Example: When Trigger Type is While ON, Device is LM0
While LM0 is 0, the condition is not satisfied and the Message Display does not display the message.
While LM0 is 1, the condition is satisfied and the Message Display displays the message.
Trigger Type
Selects the condition to enable the Message Display from the following.
LM0
:
Touch
0
LM0
:
1
FT SERIES
Condition
Not
satisfied
Condition
Satisfied
Show
Hide
Always Enabled: The Message Display is always enabled.
Message Display
state
Always show message
FT SERIES
