4 Message Display
9-64 SmartAXIS Touch User’s Manual
Data Type
Selects the data type handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
Device
Specifies the bit device or bit of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration procedure,
refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.
Comment
Enter a comment about trigger conditions. The maximum number is 80 characters.

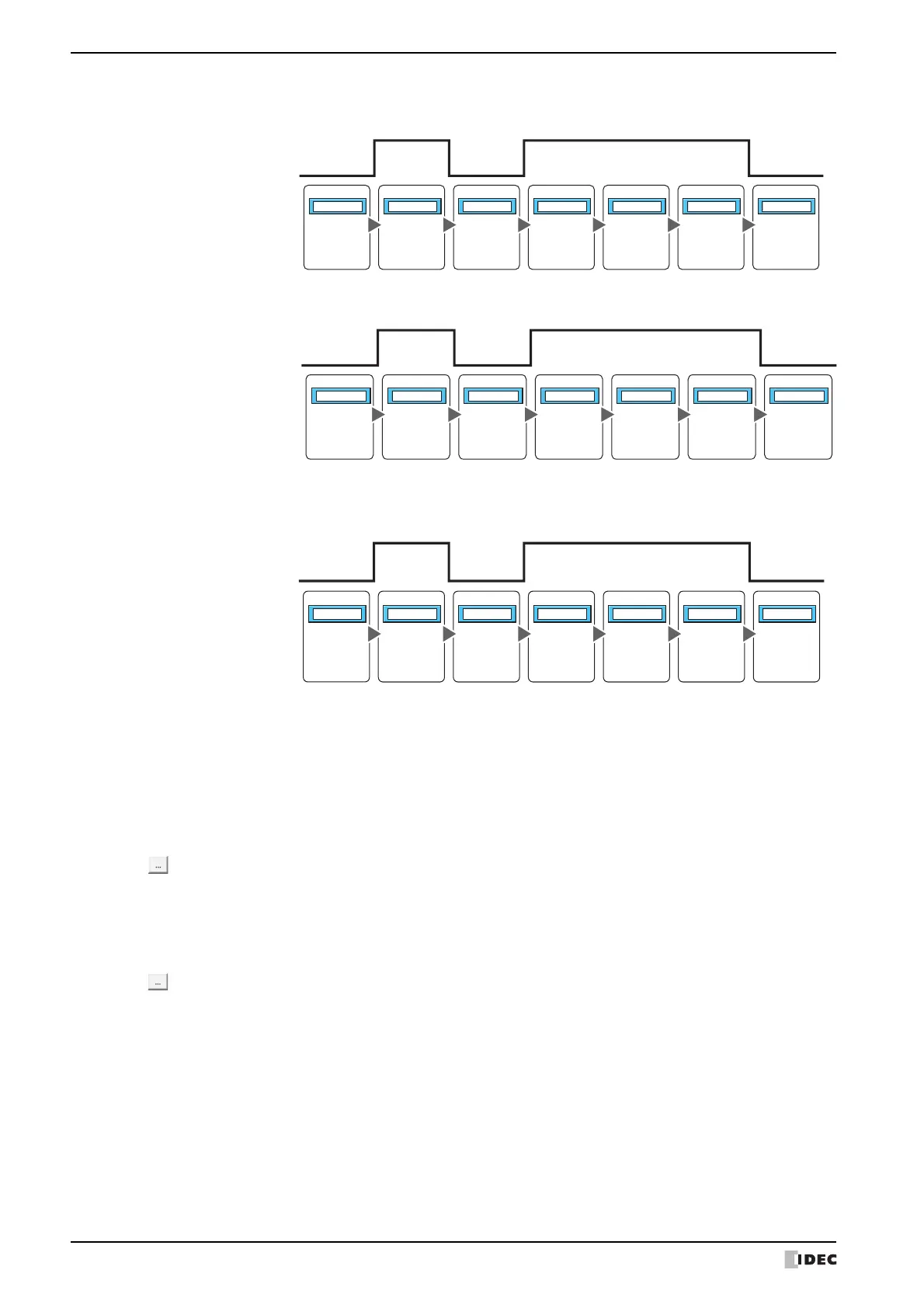

While ON: Enables the Message Display when the value of device is 1.
Example: When While not satisfying the condition is Not display message.
While OFF: Enables the Message Display when the value of device is 0.
Example: When While not satisfying the condition is Not display message.
While satisfying the condition:
Enables the Message Display when the condition is satisfied.
Example: When While not satisfying the condition is Not display message.
1
0
Show
message
Hide
message
Hide
message
Hide
message
FT SERIES
Show
message
FT SERIES
Show
message
FT SERIES
Show
message
FT SERIES
Value of Device
Message Display
state
Value of Device
1
0
Show
message
Hide
message
FT SERIES
Show
message
FT SERIES
Show
message
FT SERIES
Hide
message
Hide
message
Hide
message
Message Switching
Display state
Show
message
Hide
message
Hide
message
Hide
message
FT SERIES
Show
message
FT SERIES
Show
message
FT SERIES
Show
message
FT SERIES
Message Display
state
Satisfied
Not satisfied
Condition
