7 Alarm Log Display
9
Data Displays

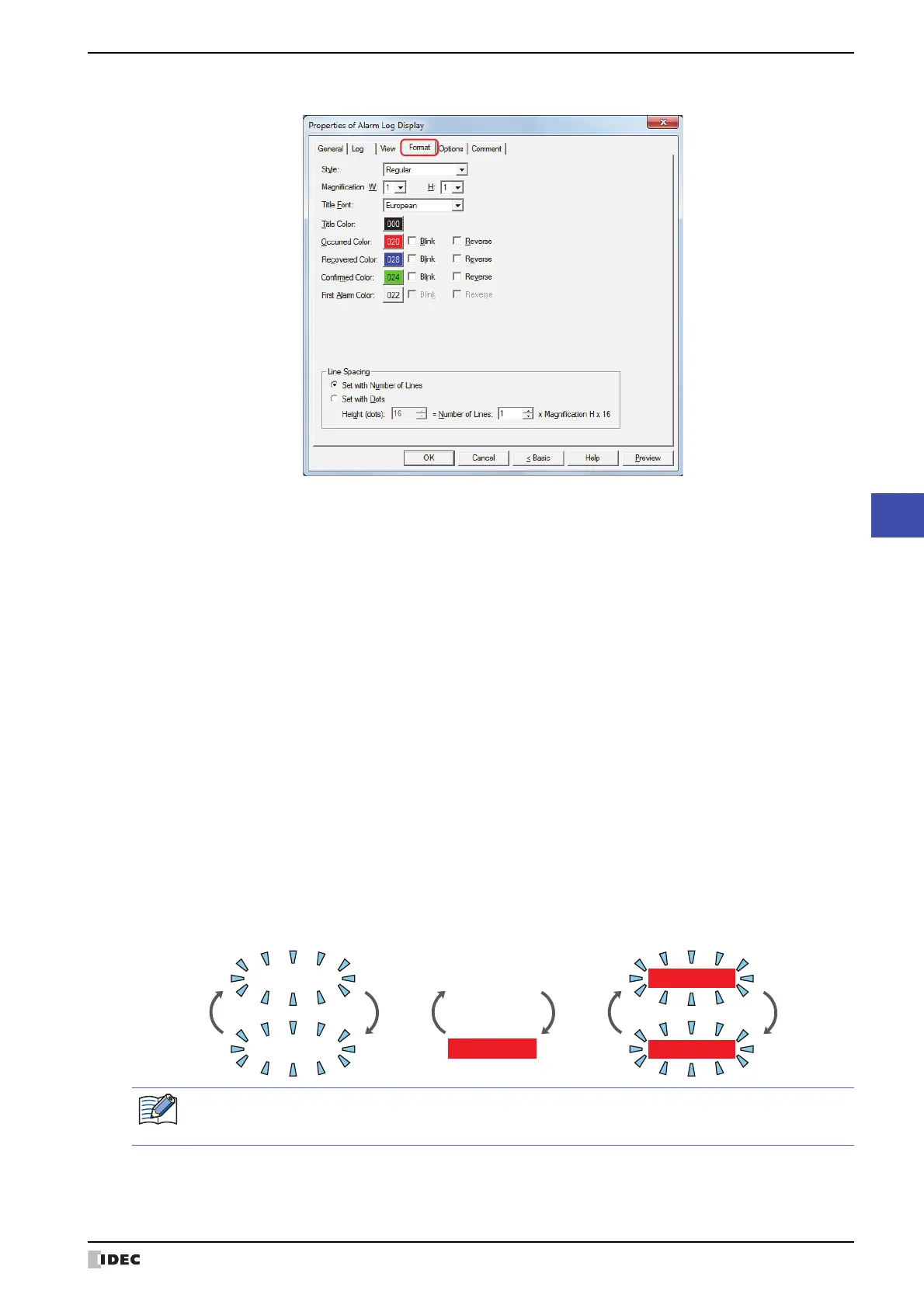

● Format Tab
■ Style
Selects Regular or Bold for text style.
■ Magnification
■ Title Font
Select the font that will be used for the title from the following options.
Japanese, European, Chinese, Taiwanese, Korean, Central European, Baltic, Cyrillic
The characters that can be displayed depend on the font. For details, refer to Chapter 2 “1.3 Available Text” on page
2-6.
■ Title Color
Select the color (color: 256 colors, monochrome: 8 shades) of the text for titles.
Click this button to display the Color Palette. Select a color from the Color Palette.
■ Occurred Color, Recovered Color, Confirmed Color, First Alarm Color
*1
Select the color (color: 256 colors, monochrome: 8 shades) of the occurred alarm, recovered alarm, confirmed alarm
and first alarm.
Click this button to display the Color Palette. Select a color from the Color Palette.
*1 Advanced mode only
W, H: Selects text magnification (0.5, 1 to 8).
Blink
*1
:
Select this check box to flash alarms that are displayed on the list.
The flash interval is specified in Blinking Cycle on the System tab in the Project Settings dialog box.
Reverse
*1
:
Select this check box to show in reverse, the text color and plate color of alarms that are displayed on
the list.
Current fault Current faultCurrent fault
Current fault
Blink Reverse Blink and reverse
When the Key Button CHECK is pressed before recovering a triggered alarm, the alarm display will change
from the Occurred Color to the Confirmed Color. After this, the alarm that has changed to the Confirmed
Color will remain in that color and will not change to the Recovered Color even when recovered.
