■ Display Block No.
Specifies the range of block numbers that will display the collected alarm log data.
All: Displays the data for all blocks.
Block No.: Displays only the data for the specified blocks in the Alarm Log Display. Alarms in unspecified blocks are
not displayed, even if active.
Individual block numbers can be specified by separating the numbers with “,”, continuous regions can be
specified with “-”.

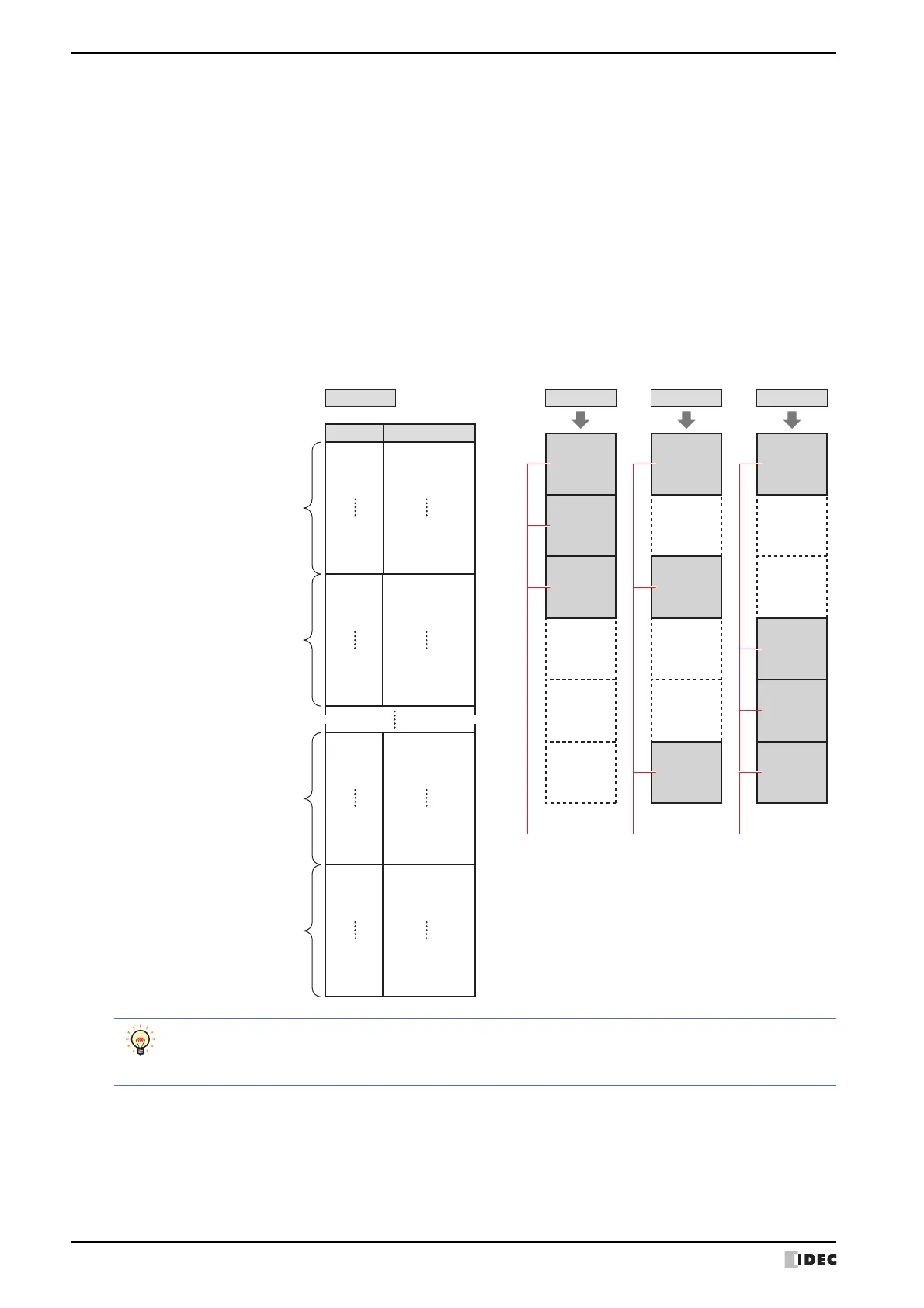

Example: When the number of blocks is 6, enter the following.
To specify blocks 1 to 3: 1-3
To specify blocks 1, 3, 6: 1, 3, 6
To specify blocks 1, 4 to 6: 1, 4-6
No. Device
1-0
1-1
1-2
1-13
1-14
1-15
D100-0
D100-1
D100-2
D100-13
D100-14
D100-15
2-0
2-1
2-2
2-13
2-14
2-15
D101-0
D101-1
D101-2
D101-13
D101-14
D101-15
Block 1
Block 2
5-0
5-1
5-2
5-13
5-14
5-15
D104-0
D104-1
D104-2
D104-13
D104-14
D104-15
Block 5
6-0
6-1
6-2
6-13
6-14
6-15
D105-0
D105-1
D105-2
D105-13
D105-14
D105-15
Block 6
Number of Blocks
Specified numbers
1-3
6
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
Block 1
Block 2
Block 3
Block 4
Block 5
Block 6
1, 3, 6 1, 4-6
Blocks to display Blocks to display Blocks to display
• To display the alarms set in blocks 65 to 128 of the Alarm Log settings, select All under Display Block
No.. If Block No. is selected, only blocks 1 to 64 can be specified.
• For the number of blocks, refer to Chapter 13 “Number of Blocks” on page 13-16.
