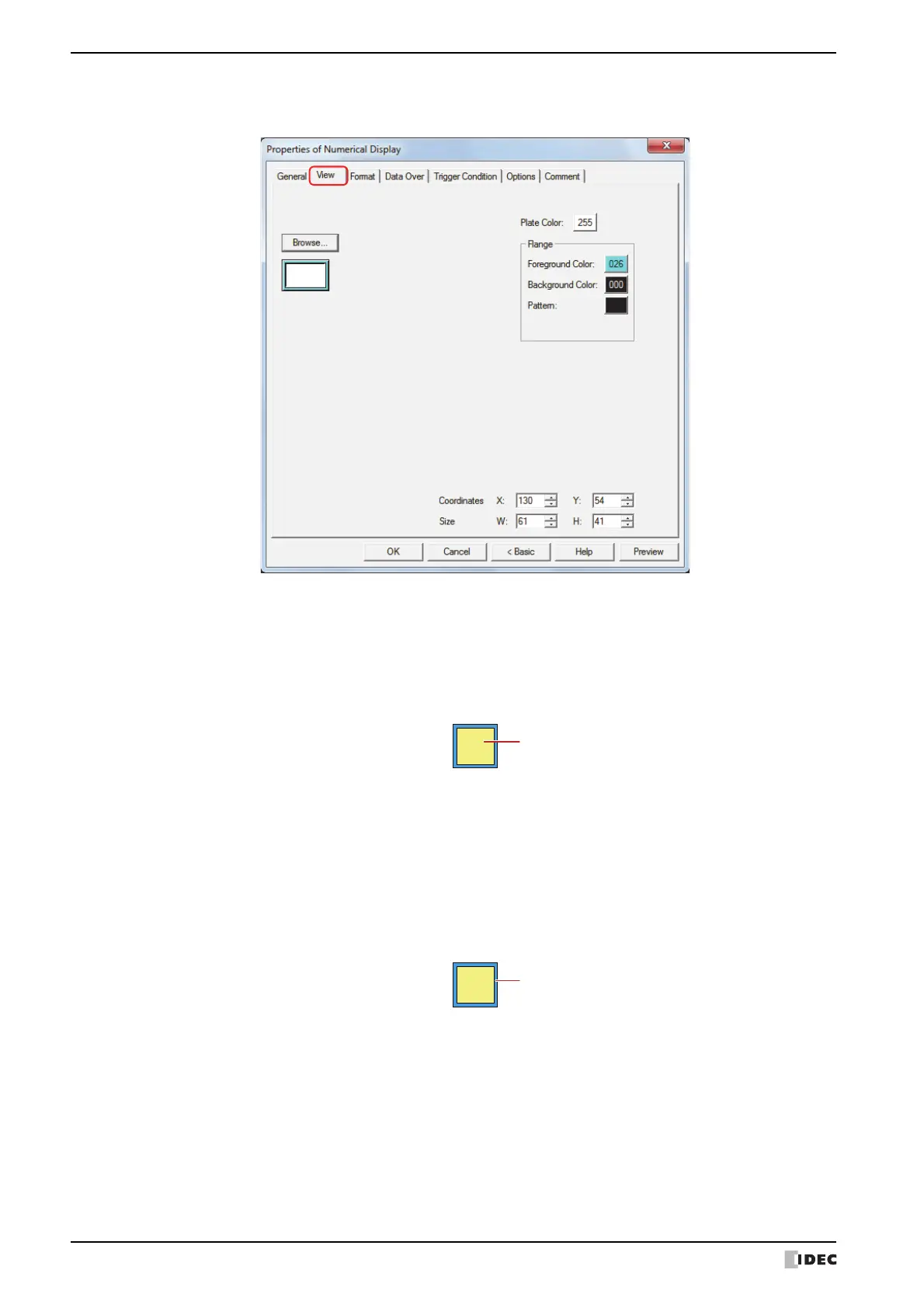

● View Tab
The View tab is used to configure the external form of the part including its color and shape.
■ Browse
Select the type of graphic to represent the part from the list of graphics. Click this button to display the View Browser.
■ Plate Color
Selects the plate color of the standard graphic (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
■ Flange
Plate color
Foreground Color, Background Color:
Selects the foreground and background colors of the flange of the standard graphic (color: 256
colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange of the standard graphic.
Click the Pattern button to display the Pattern Palette. Select a pattern from the Pattern Palette.
