8 Numerical Display
9-120 SmartAXIS Touch User’s Manual

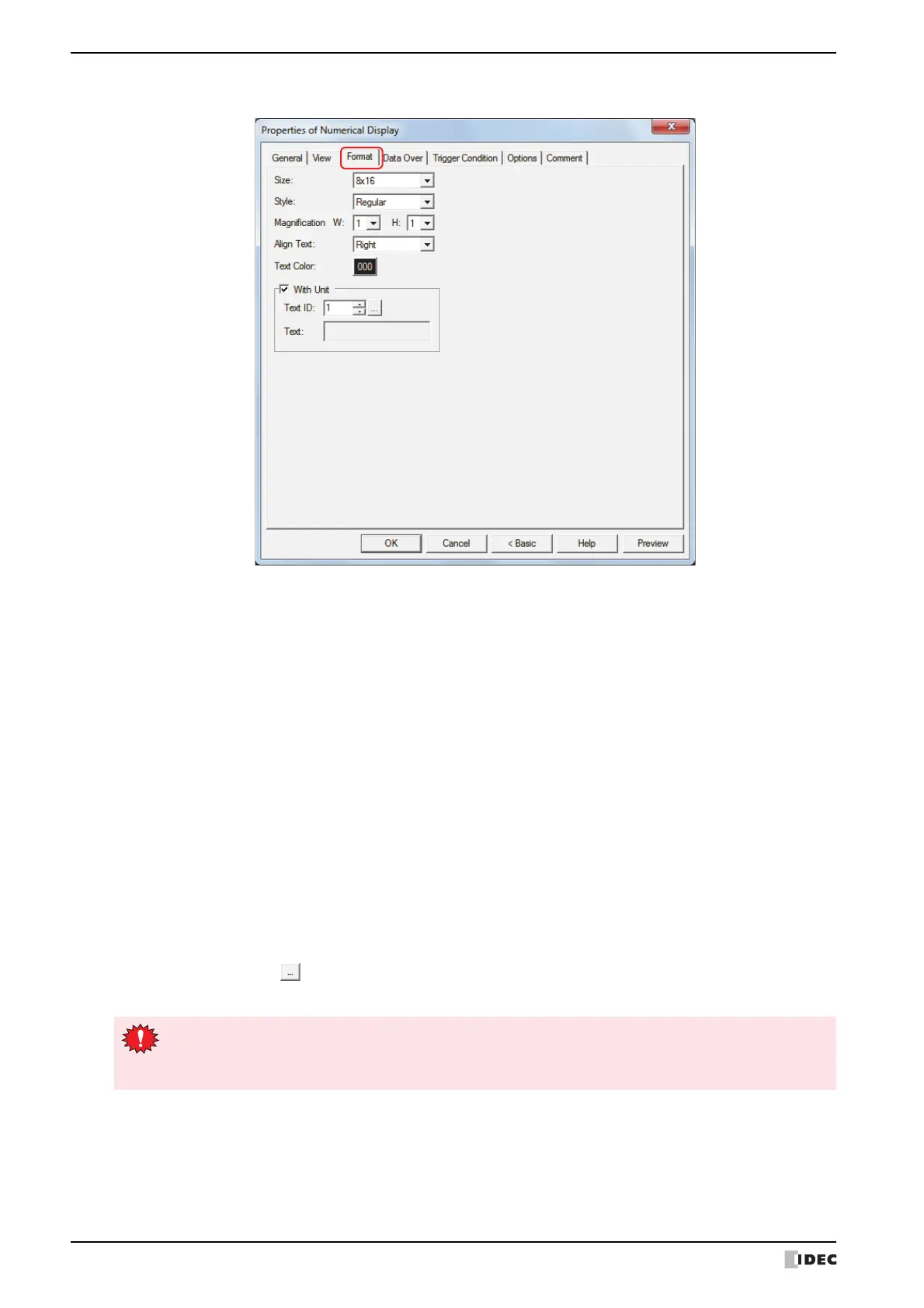

● Format Tab
■ Size
Selects the text size as 8x16 or 16x16.
■ Style
Selects Regular or Bold for text style.
■ Magnification
■ Align Text
Selects the text alignment in the horizontal direction from the following.
Left, Center, Right
For details, refer to Appendix “5 Text Alignment” on page A-5.
■ Text Color
Selects the color of displayed text (color: 256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
■ With Unit
*1
Select this check box to display units or other characters at the end of a number. Displayed characters must be
registered in Text Manager. The displayed text color will be as set for Text Color under the Format tab.
*1 Advanced mode only
W, H: Selects text magnification (0.5, 1 to 8).
Text ID: Specifies the Text Manager ID No. (1 to 32000).
Click to display Text Manager.
Text: Displays the characters of the specified Text ID.
• The maximum number that can be displayed with this function is 4 characters. The fifth and subsequent
characters of a character string are not displayed. However, if Windows Font is set for the specified Text
ID characters all the characters are displayed.
• If a carriage return (CR) is included the characters after the CR are not displayed.
