8 Numerical Display
9-122 SmartAXIS Touch User’s Manual

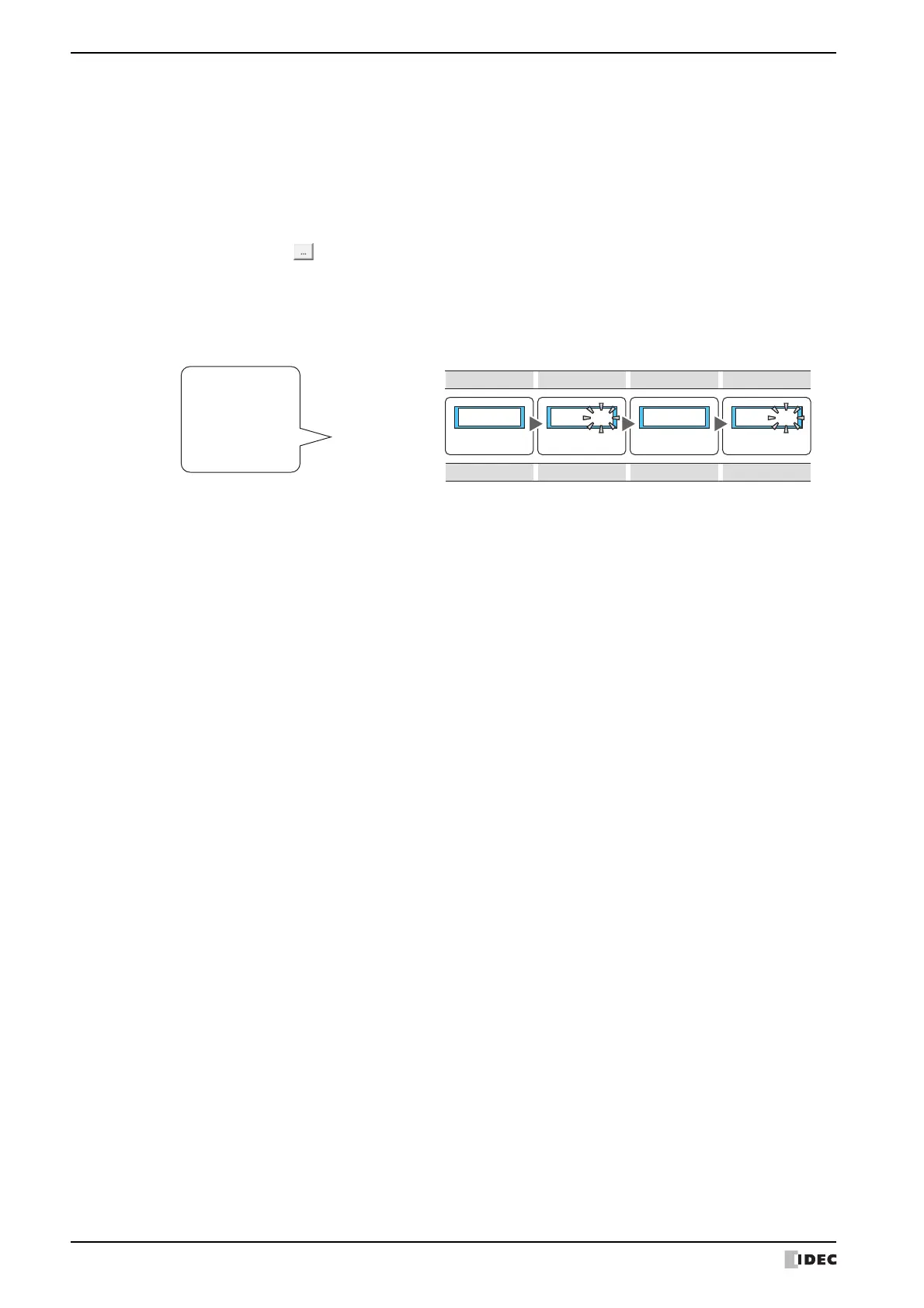

■ When Data Over
These options configure the operation of the part when the allowable range is exceeded.
These options can only be configured when the Minimum or Maximum check boxes are selected under Range.
Example: If the value of word device of the reading source is “120,” which is higher than the upper limit of “100,” or
“-10,” which is below the lower limit of “0,” a value of 1 will be written to LM0 and the displayed numerical
value will blink.
Blink: Select this check box to make the value blink when the displayed data exceeds the allowable
range.
Report: Select this check box and specify the device to write 1 in the report device when the
displayed data exceeds the allowable range.
Click to display the Device Address Settings dialog box. For the device address
configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
50 120 90
120
-10
90
50 -10
Blinking Blinking
1
1
0
0
Range: Value
Minimum: 0
Maximum: 100
When Data Over
Blink: Selected
Report Device: LM0
Read data
Display
Data over notification: LM0
