8 Numerical Display
9
Data Displays

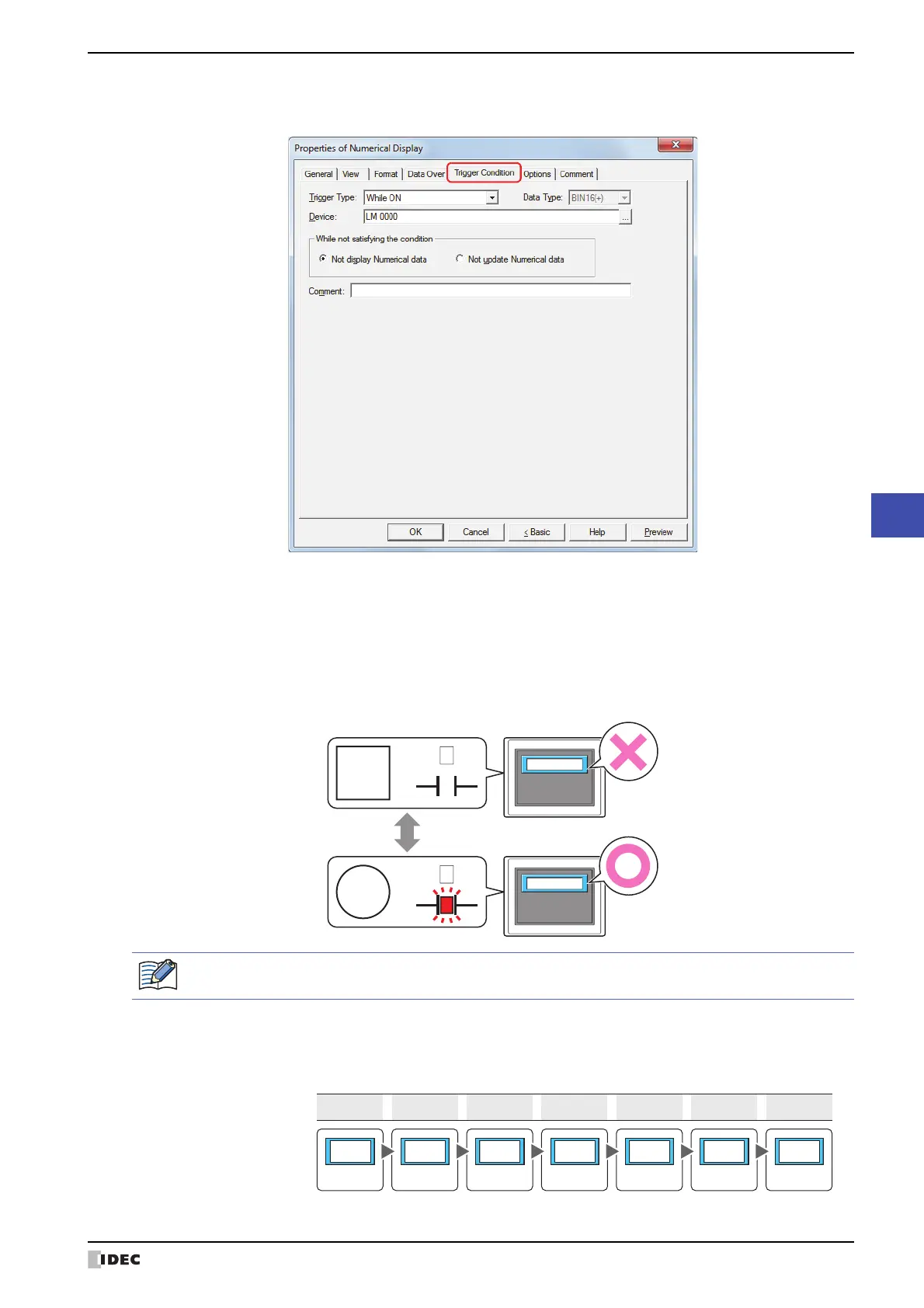

● Trigger Condition Tab
The Trigger Condition tab is displayed in Advanced mode.
The Numerical Display is enabled while the condition is satisfied, and it is disabled while the condition is not satisfied.
Select the operation when the condition is not satisfied as Not display Numerical data or Not update Numerical
data under While not satisfying the condition.
Example: When Trigger Type is While ON, Device is LM0, and While not satisfying the condition is Not
display Numerical data
While LM0 is 0, the condition is not satisfied and the Numerical Display does not display the number.
While LM0 is 1, the condition is satisfied and the Numerical Display displays the number.
■ Trigger Type
Selects the condition to enable the Numerical Display from the following.
LM0
:
Touch
0
LM0
:
1
1234
Condition
Not
satisfied
Condition
Satisfied
Show
number
Hide
number
Data over does not operate for hidden Numerical Displays. Data over is reported if the minimum or
maximum is exceeded when the Numerical Display changes from hidden to displayed.
Always Enabled: The Numerical Display is always enabled.
Display
Data 99
100 101
102
103
104
105
Update Update Update Update Update Update Update
99 100 101 102 103 104 105
