IDEC SmartAXIS Touch FT1A Series User Manual

8 Numerical Display
9-124 SmartAXIS Touch User’s Manual
■ Data Type
Selects the data type handled by the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
For details, refer to Chapter 2 “1.2 Available Data” on page 2-2.
■ Device
Specifies the bit device or bit of the word device to serve as condition.
Can only be set if While ON or While OFF is selected as Trigger Type.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.
■ Condition
Sets the condition formula.
Can only be set if While satisfying the condition is selected as Trigger Type.
Click to display the Trigger Condition Settings dialog box. For the conditional expression configuration procedure,
refer to Chapter 2 “5.2 Setting Conditional Expressions” on page 2-64.
■ While not satisfying the condition
Selects the operation of the Numerical Display when the condition is not satisfied.
■ Comment
Enter a comment about trigger conditions. The maximum number is 80 characters.

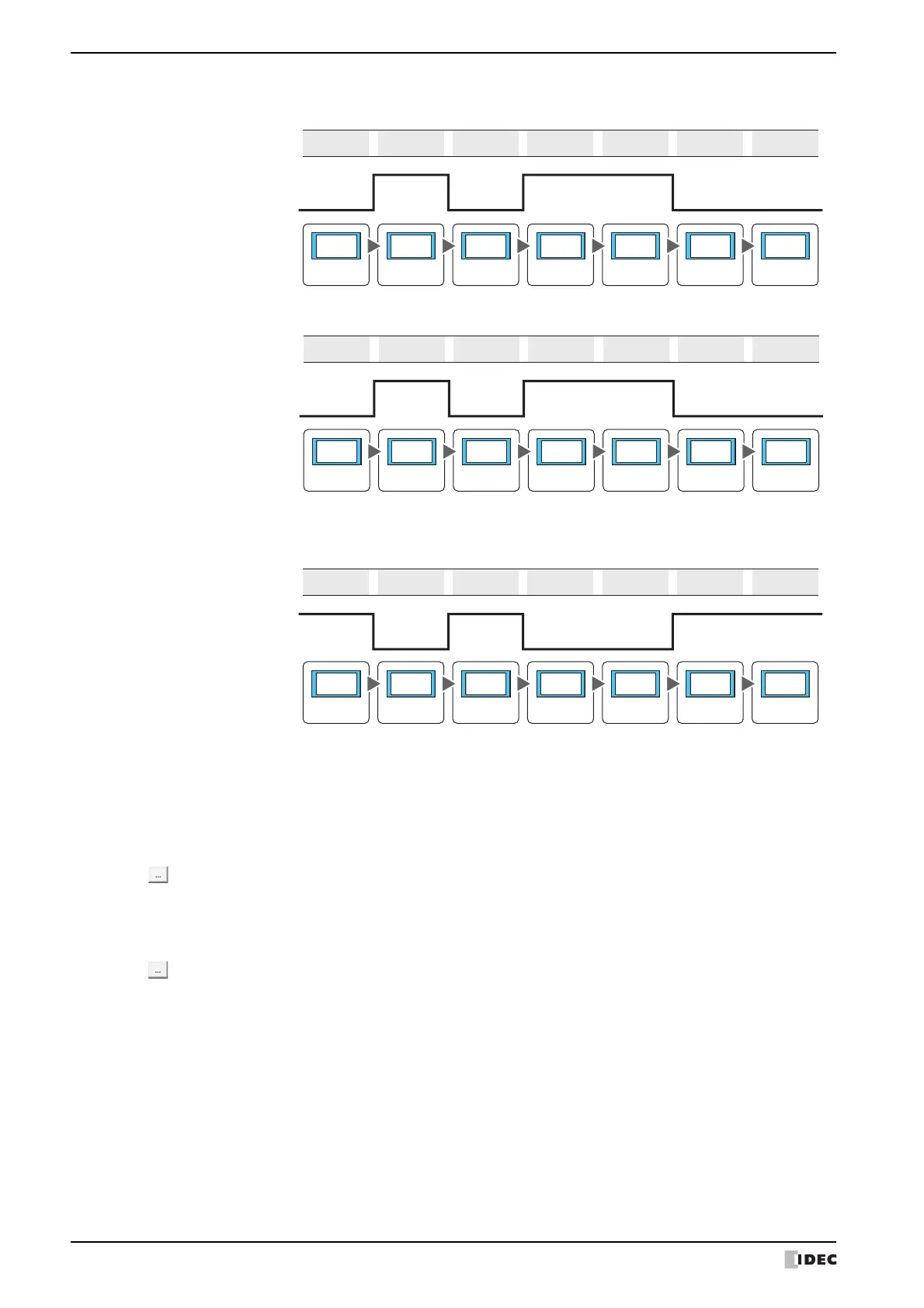

While ON: Enables the Numerical Display when the value of device is 1.
Example: When While not satisfying the condition is Not update Numerical data
While OFF: Enables the Numerical Display when the value of device is 0.
Example: When While not satisfying the condition is Not update Numerical data
While satisfying the condition:
Enables the Numerical Display when the condition is satisfied.
Example: When While not satisfying the condition is Not update Numerical data
Value of Device
1
0
Update Do not update Do not update Do not update Do not update
Display
Data 99
100 101
102
103
104
105
Update Update
0 100 100 102 103 103 103
Value of Device
1
0
Update Do not update Do not update Do not update
Display
Data 99
100 101
102
103
104
105
Update Update
Update
99 99 101 101 101 104 105
Update Do not update Do not update Do not update
Display
Data 99
100 101
102
103
104
105
Update Update
Update
Satisfied
Not satisfied
Condition
99 99 101 101 101 104 105
Not display Numerical data: The plate and flange are displayed, but number is not displayed.
Not update Numerical data: The last updated number is displayed. The number does not change.
