9 Calendar
9-132 SmartAXIS Touch User’s Manual

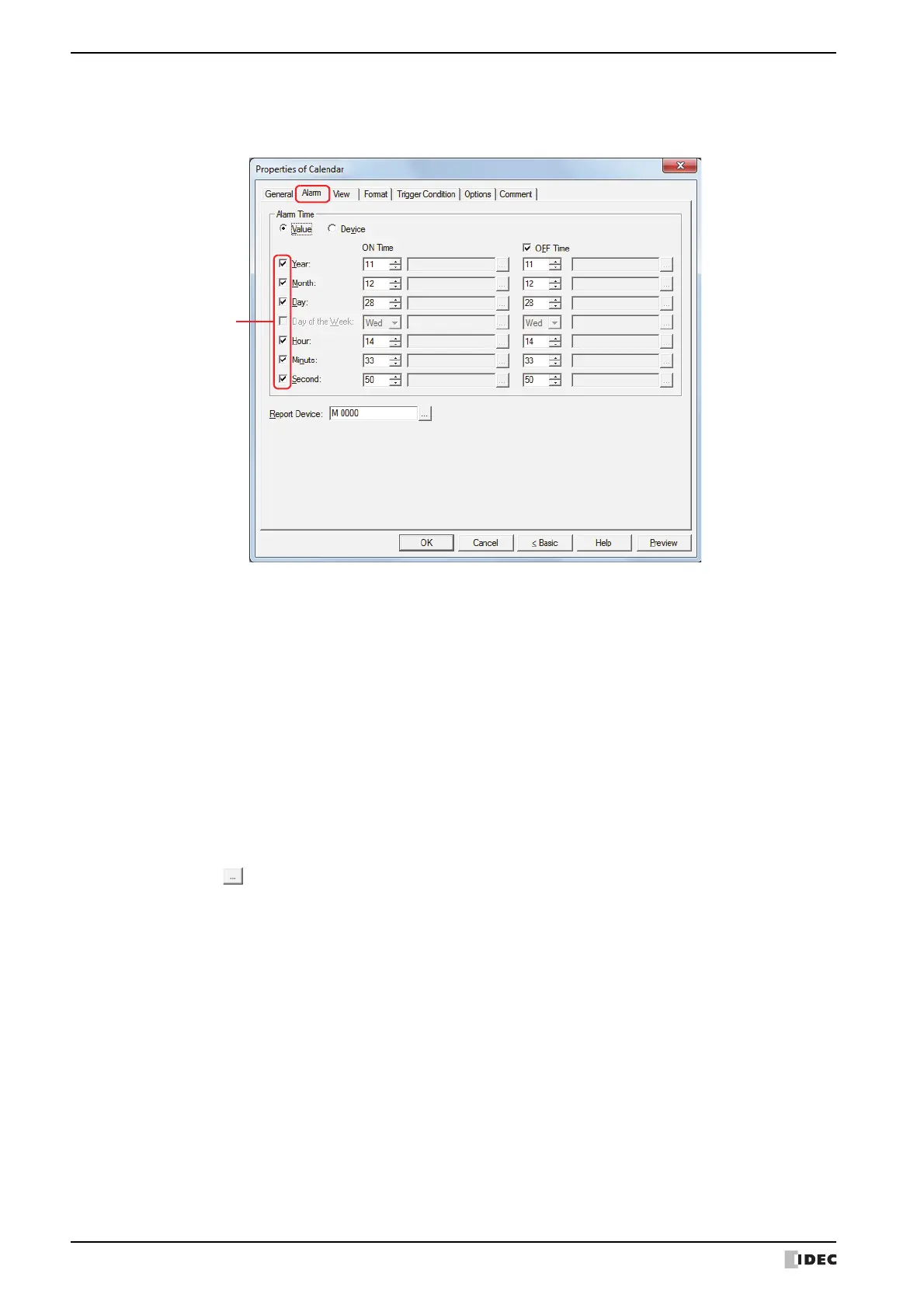

● Alarm Tab
These options can only be configured when Alarm or Clock & Alarm is selected for Calendar Type on the
General tab.
■ Alarm Time
Selects the type of data for the alarm time.
■ (Alarm conditions)
Select the check boxes for the conditions to use as the alarm time.
The Day of the Week check box can only be configured when the Year check box is cleared.
Value: Specifies the alarm time as values and the day of the week.
Year: Enter the year (0 to 99).
Month: Enter the month (1 to 12).
Day: Enter the day (1 to 31).
Day of the Week: Select the day of the week.
Hour: Enter the hour (0 to 23).
Minute: Enter the minute (0 to 59).
Second: Enter the second (0 to 59).
Device: Configures the alarm time as values of word device.
Click to display the Device Address Settings dialog box. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
