SmartAXIS Touch User’s Manual 9-133
9 Calendar
9
Data Displays
■ ON Time
Configures the time to write 1 to the report device according to the type of data.
■ OFF Time
Select this check box to configure the time to write 0 to the report device.
The time is configured according to the type of data.
■ Report Device
Specifies the bit device to write the value to at ON Time and OFF Time.
Click to display the Device Address Settings dialog box. For the device address configuration procedure, refer to
Chapter 2 “5.1 Device Address Settings” on page 2-62.

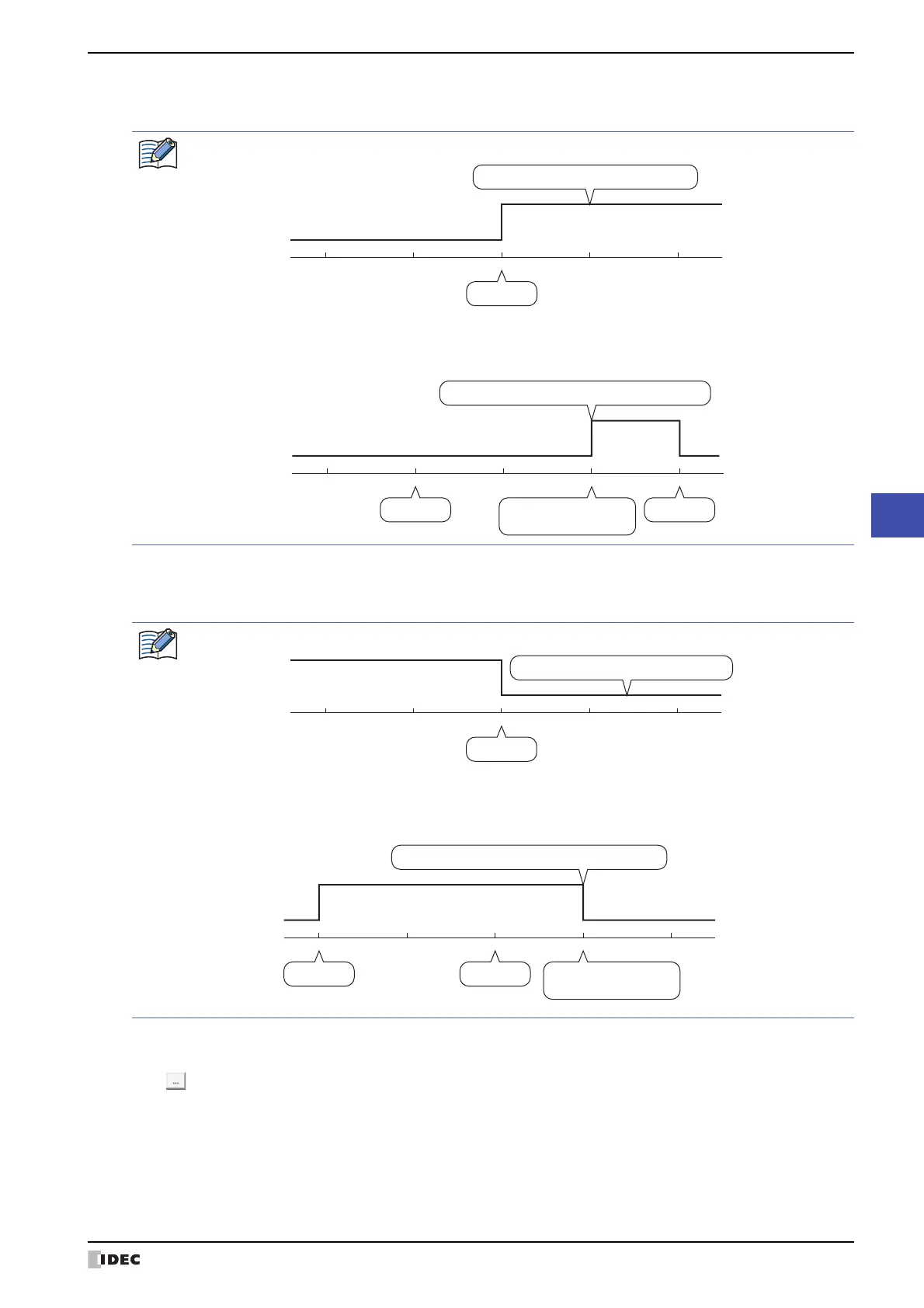

• After 1 is written to the report time with ON Time, that value is retained.
• After a screen configured with the Calendar is displayed, if the time is in between ON Time and OFF
Time, 1 is written to the report device.
Value of device retained after ON Time elapses
1
0
09:00
09:30 10:00 10:30 11:00
Value of
Report Device M0
Time
ON Time
Turn on Touch power
Open screen
1
0
09:00
09:30
10:00 10:30 11:00
Value of
Report Device M0
Time
ON Time
Writes 1 to notify that ON Time has already elapsed
OFF Time
• The value of Report Device is retained even when the current time exceeds OFF Time.
• After a screen configured with the Calendar is displayed, if the time exceeds OFF Time, 0 is written to the
report device.
Value of device retained after OFF Time elapses
1
0
10:00
10:30 11:00 11:30 12:00
Value of
Report Device M0
Time
OFF Time
Turn on Touch power
Open screen
Value of
Report Device
1
0
Time
10:00
10:30
11:00 11:30 12:00
OFF Time
Writes 0 to notify that OFF Time has already elapsed
ON Time
