1 Bar Chart
10-10 SmartAXIS Touch User’s Manual
■ When Data Over
These options configure the operation of the part when the allowable range is exceeded.
These options can only be configured when the Minimum or Maximum check boxes are selected under Range.

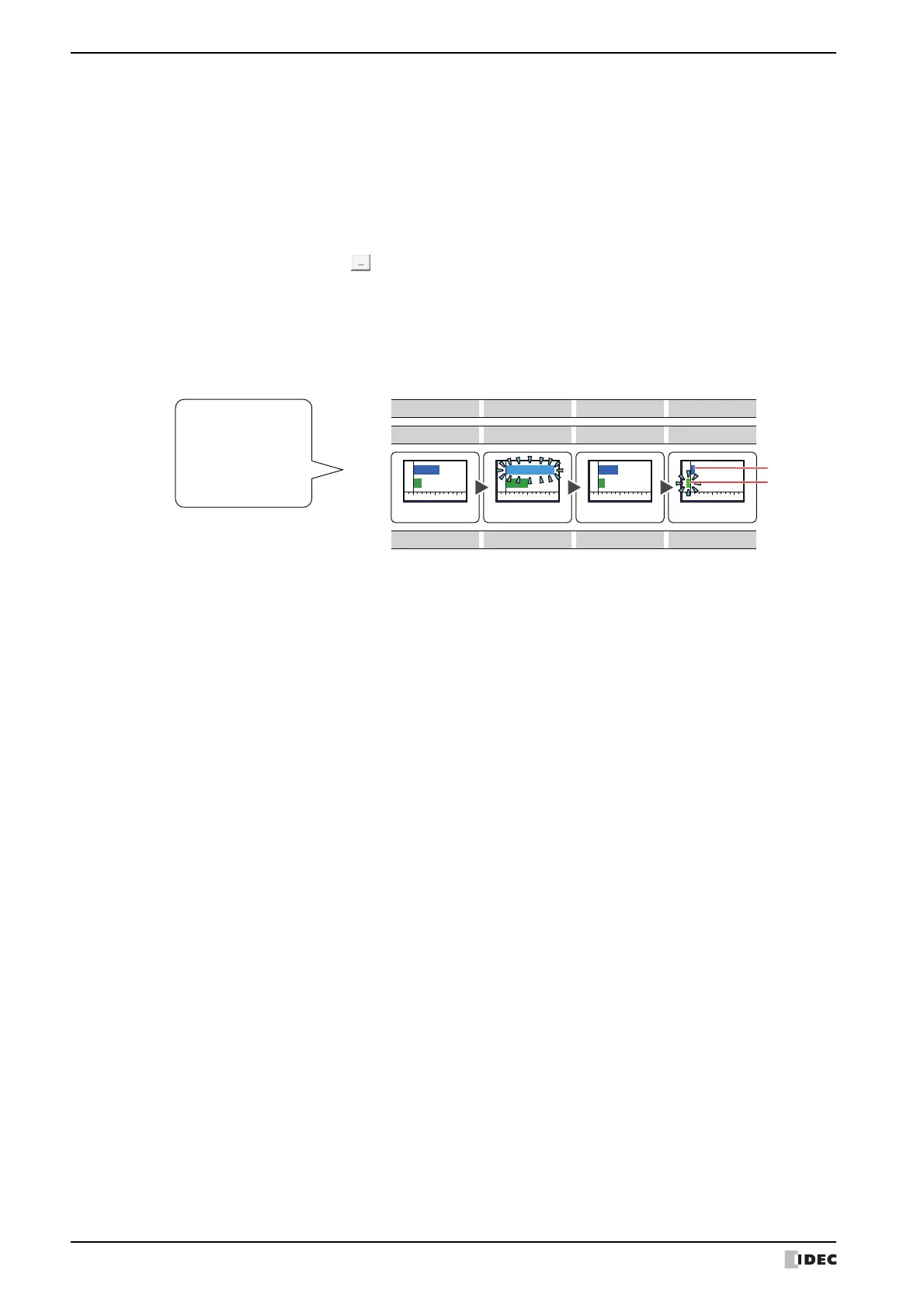

Example: If the value of word device of the reading source is “110,” which is higher than the upper limit of “100,” or
“-10,” which is below the lower limit of “0,” a value of 1 will be written to LM0 and the displayed bar will
blink.
Blink: Select this check box to make the chart blink when the displayed data exceeds the allowable range.
Report: Select this check box to write 1 in the report device when the displayed data exceeds the allowable
range.
Report Device: Specifies the report device.
Click to display the Device Address Settings dialog box. For the device address
configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-
62.
Ch1 data 60
Ch2 data
Ch1
Ch2
10
10 0
1
Display
20
110
50
80
10 -10
Blinking Blinking
Range: Value
Minimum: 0
Maximum: 100
When Data Over
Blink: Selected
Report Device: LM0
Data over notification: LM0
100500 100500 100500 100500
