IDEC SmartAXIS Touch FT1A Series User Manual

SmartAXIS Touch User’s Manual 10-53
4 Meter
10
Charts

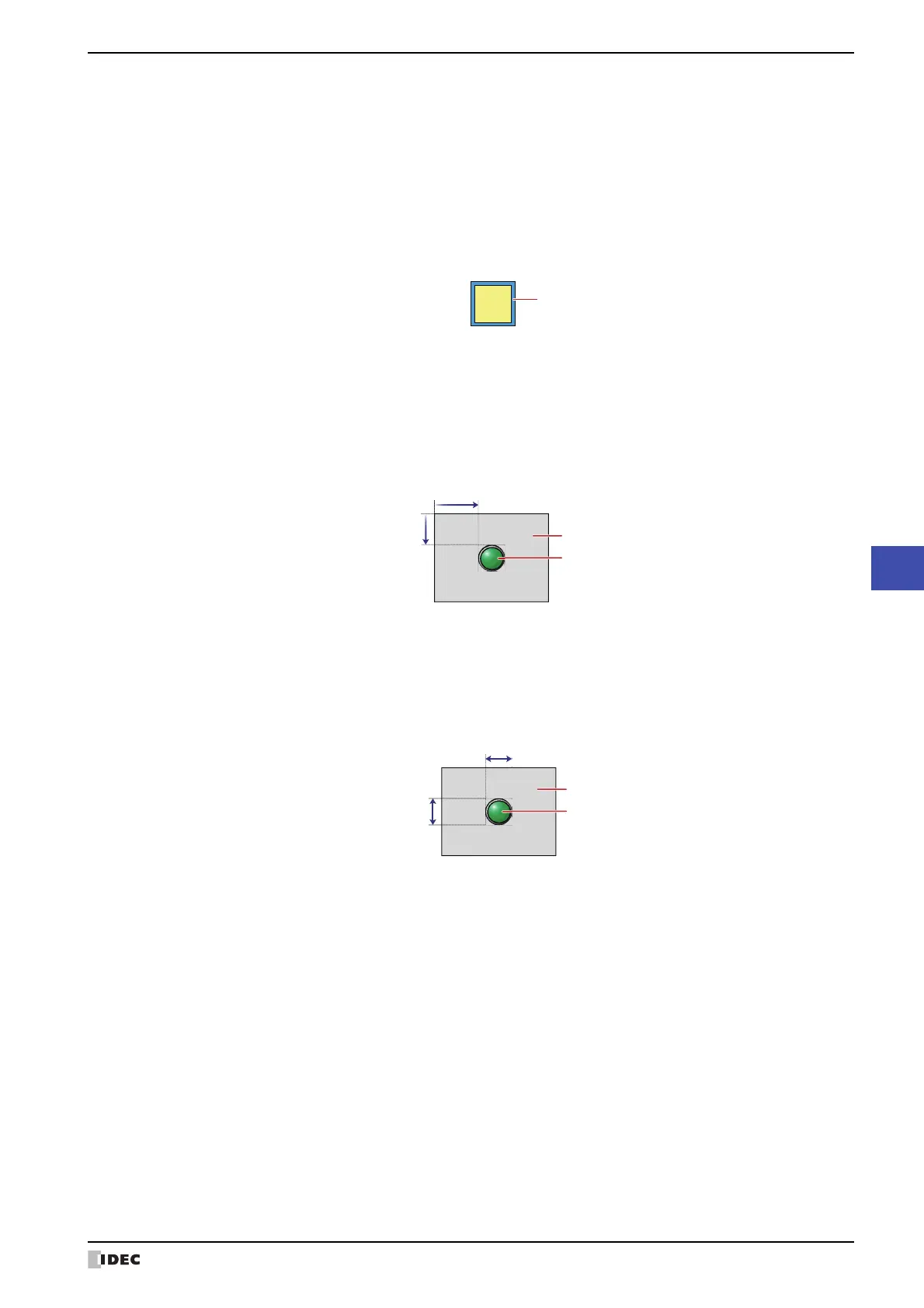

■ Flange
■ Coordinates
■ Size
Foreground Color, Background Color:
Selects the foreground and background colors of the flange of the standard graphic (color:
256 colors, monochrome: 8 shades).
Click the Color button to display the Color Palette. Select a color from the Color Palette.
Pattern: Selects a pattern for the flange of the standard graphic.
Click the Pattern button to display the Pattern Palette. Select a pattern from the Pattern
Palette.
Flange
X, Y: Sets the display position of parts using coordinates.
The X and Y coordinates of parts are defined relative to an origin at the top-left corner of the screen.
X: 0 to (Base Screen horizontal size - 1)
Y: 0 to (Base Screen vertical size - 1)
(0, 0)
X
Y
Screen
Parts
W, H: Sets width and height to define the size of parts.
W: 5 to (Base Screen horizontal size)
H: 5 to (Base Screen vertical size)
Width
Height
Screen
Parts
