4 Meter
10-54 SmartAXIS Touch User’s Manual

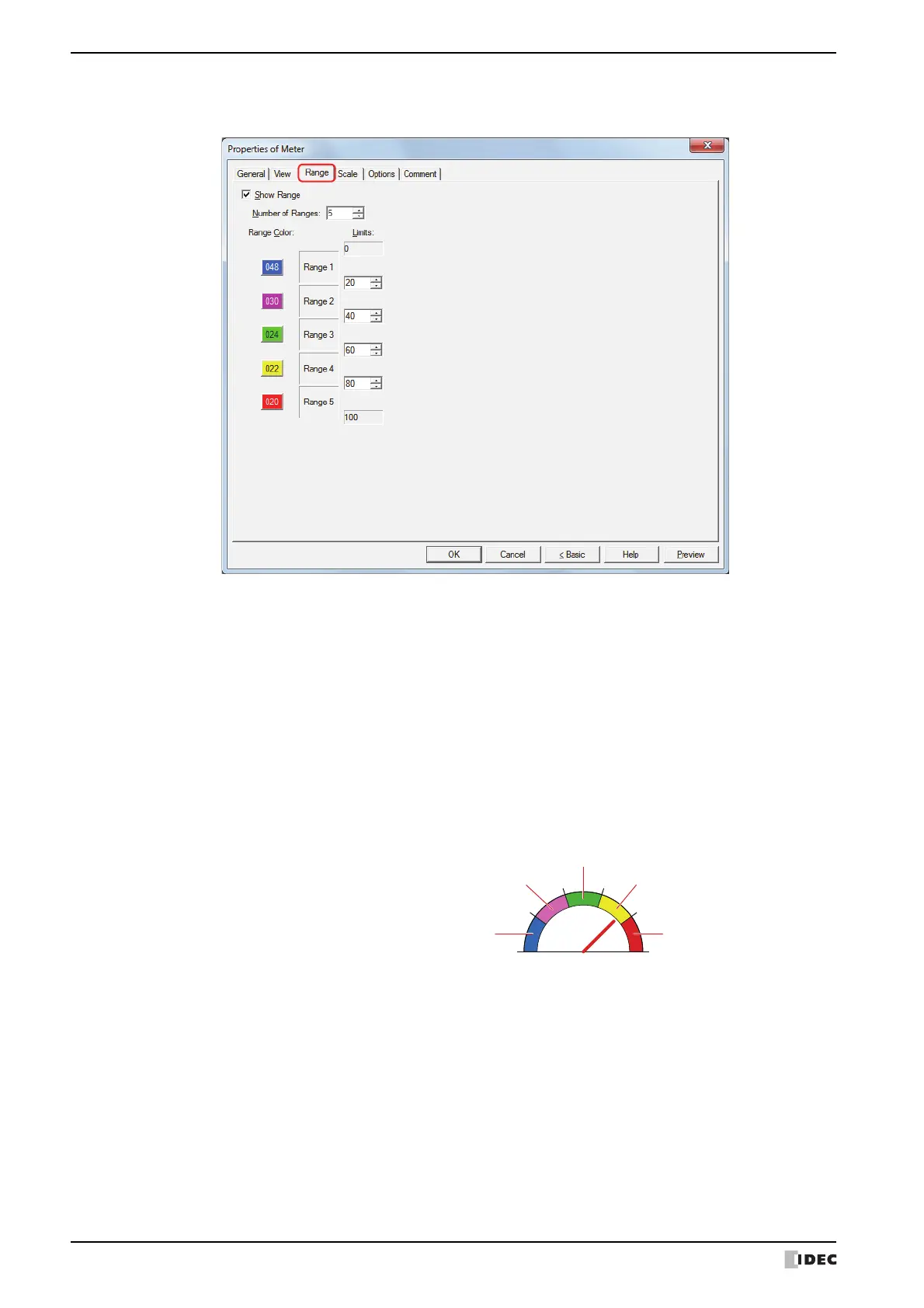

● Range Tab
The Range tab is only displayed in Advanced mode.
■ Show Range
Select this check box to show ranges on the meter and configure the number of ranges, range colors, and limits.
Number of Ranges: Specifies the number of ranges (1 to 5).
Range Color: Selects the range color (color: 256 colors, monochrome: 8 shades).
Click this button to display the Color Palette. Select a color from the Color Palette.
Limits: Specifies the limit for the range.
The limit varies based on the selected data type. For details, refer to Chapter 2 “1.2
Available Data” on page 2-2.
Example: 180-degree meter, data minimum is 0, maximum is 100, the number of ranges is set to 5
The limit between range 1 and 2: 20
The limit between range 2 and 3: 40
The limit between range 3 and 4: 60
The limit between range 4 and 5: 80
Range 1
Range 2
Range 3
Range 4
Range 5
0 100
20 80
40 60
To Next Page
