1 Bit Write Command
11-6 SmartAXIS Touch User’s Manual

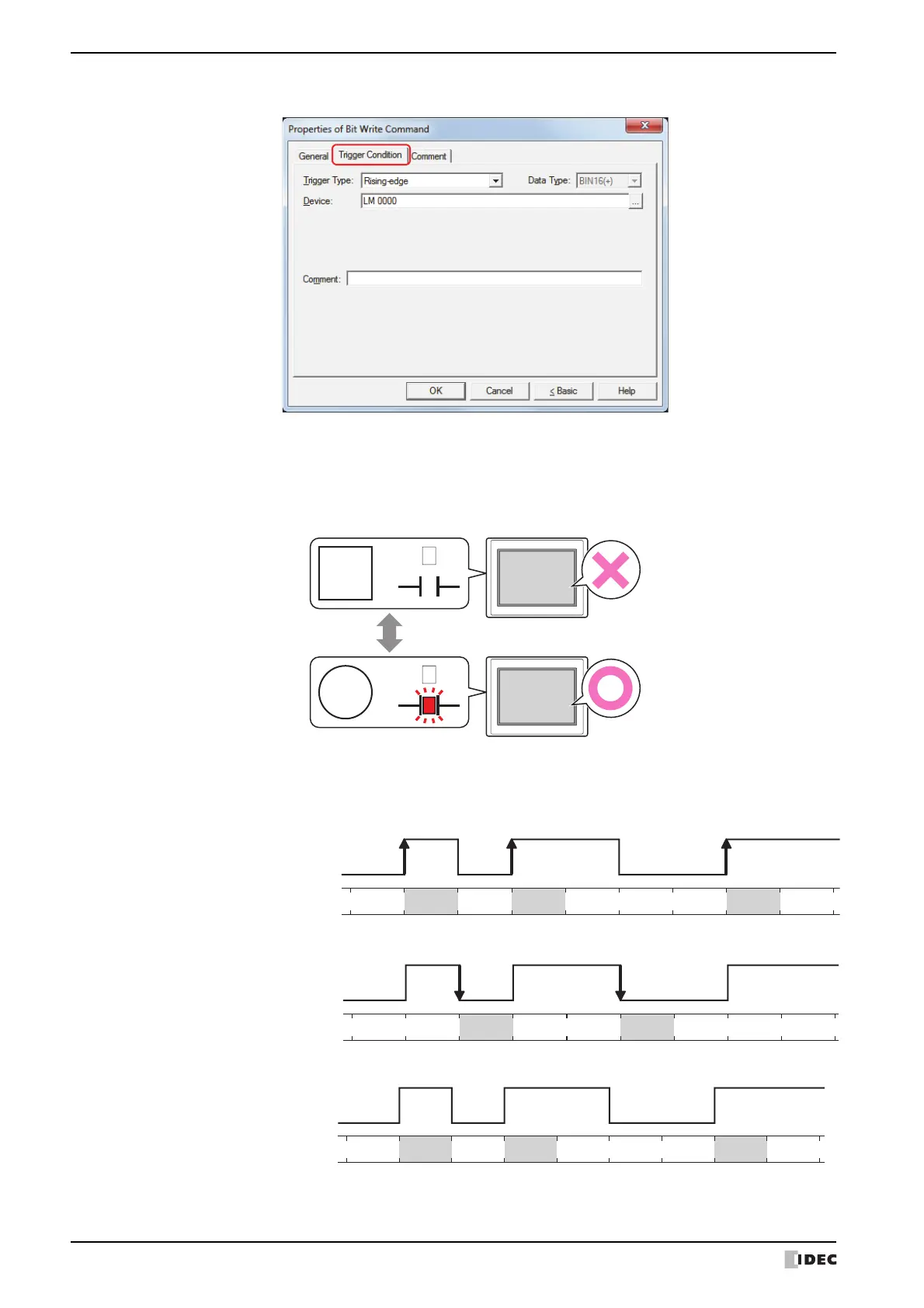

● Trigger Condition Tab
When the condition has been or is satisfied, the command is executed; when not satisfied, the command is not
executed.
Example: When Trigger Type is Rising-edge and Device is LM0
The command is executed when LM0 changes from 0 to 1.
■ Trigger Type
Selects the condition to execute the command from the following.
LM0
:
Touch
0
LM0
:
1
Not
executed
Executed
Condition
Not
satisfied
Condition
Satisfied
Rising-edge: Command is executed when device changes from 0 to 1.
Falling-edge: Command is executed when device changes from 1 to 0.
Satisfy the condition: Command is executed when condition changes from not satisfied to satisfied.
Value of Device
1
0
Action
Execution Execution Execution
Execution Execution
Value of Device
1
0
Action
Action
Condition
Satisfied
Not satisfied
Execution Execution Execution
