3 FBD Program
12-38 SmartAXIS Touch User's Manual
Monitor Operation
You can monitor the operation of the downloaded program with WindLDR's monitor function.
1 After the program is successfully downloaded, on the WindLDR Online tab, in the Monitor group, click Monitor.

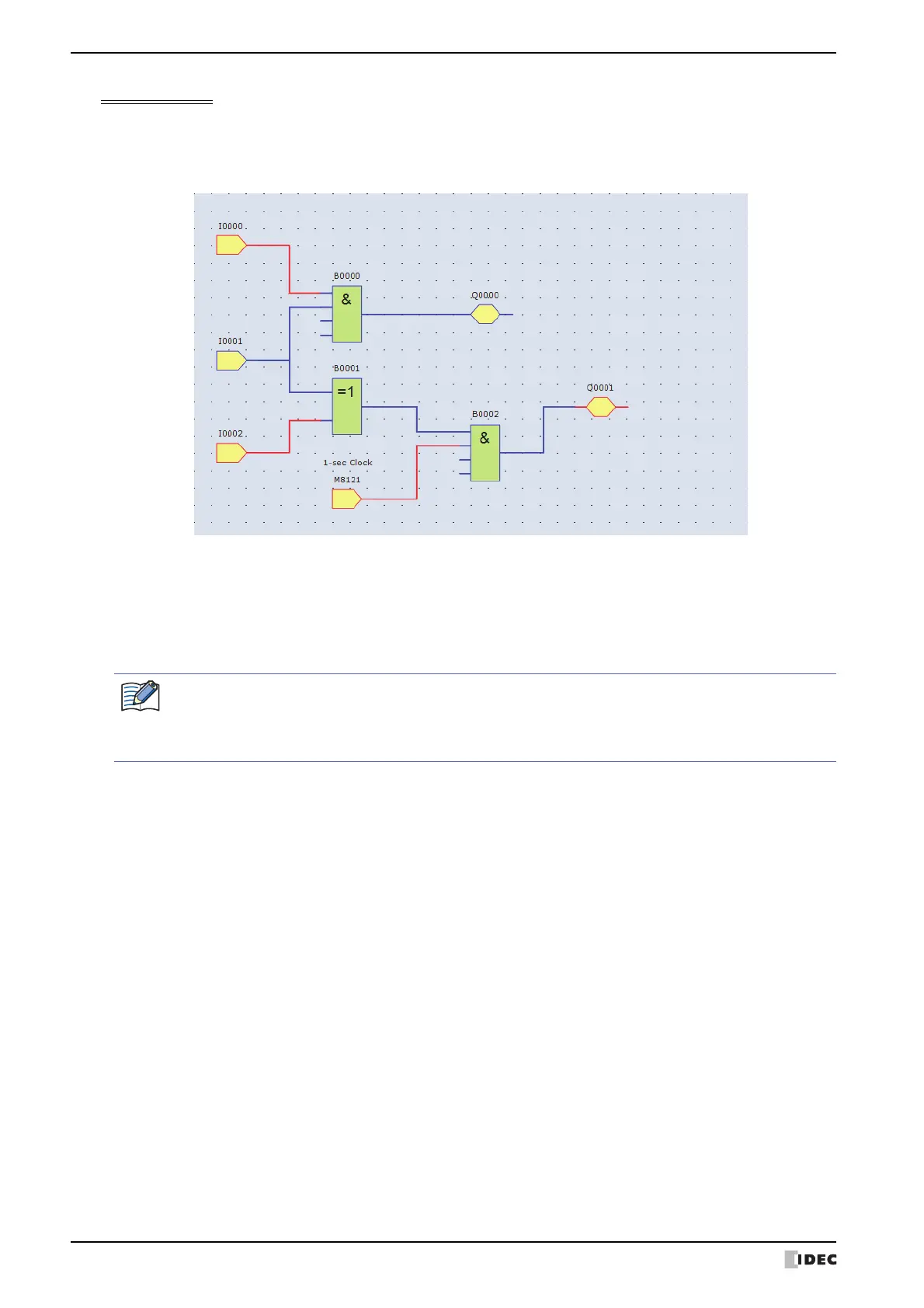

The Touch state is displayed on the WindLDR screen.
2 Monitor the following operations.
• When you turn on both input I0 and input I1, output Q0 turns on.
• When you turn on either input I1 or input I2, output Q1 repeatedly turns on and off in a one second cycle.
This concludes the monitor operation.
• You can monitor the state of the input connectors and output connectors for each FB. When input
connectors, output connectors, and connection lines are red, they are on. Blue is off.
• For details on the state of unconnected input connectors in the FBs, refer to the chapters for the FBs in
the "SmartAXIS FBD Programming Manual".
