Control Function
● Procedure

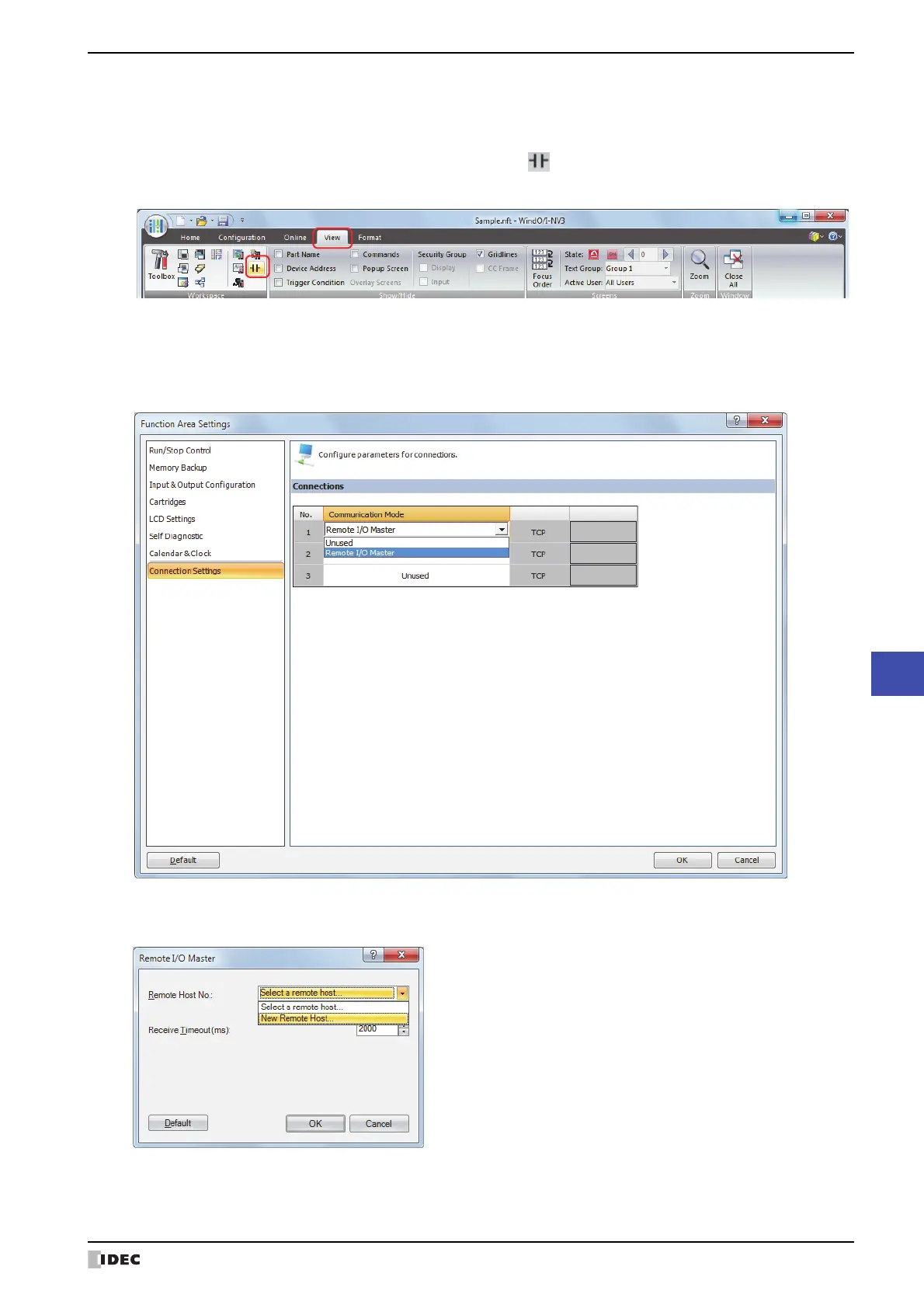

To use the Touch as a remote I/O master, you must configure the Function Area Settings tab and download the
ladder program or FBD program to the Touch.
1 On the WindO/I-NV3 View tab, in the Workspace group, click (Control Function) .
WindLDR starts.
2 On the WindLDR Configuration tab, in the Function Area Settings group, click Connection Settings.
The Function Area Settings dialog box is displayed.
3 Click Communication Mode for the connection to configure, and then select Remote I/O Master.
The Remote I/O Master dialog box is displayed.
4 Click Remote Host No. and select New Remote Host....
The Remote Host dialog box is displayed.
