3 Alarm Log Settings Dialog Box
13-18 SmartAXIS Touch User’s Manual

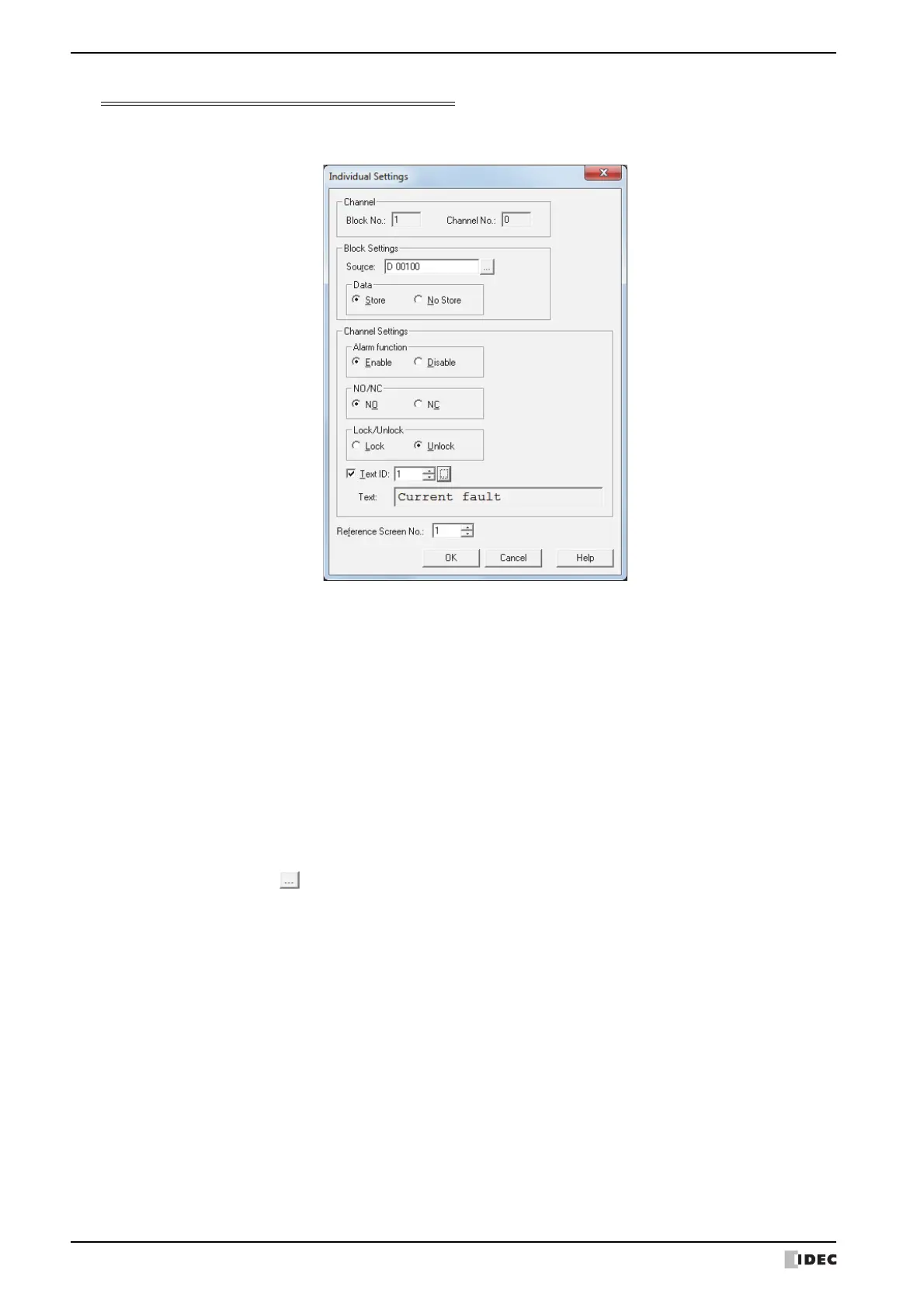

Auto-Setup Dialog Box and Individual Settings Dialog Box
With the Auto-Setup dialog box, the Alarm Log settings for all channels are batch registered or changed.
With the Individual Settings dialog box, the Alarm Log settings for the selected channel are registered or changed.
■ Channel
*1
Shows the block number and the channel number for the selected channel.
■ Block Settings
Configures Source and Data in block units.
*1 Individual Settings dialog box only
Block No.: Shows the block number for the channel selected in Settings.
Channel No.: Shows the channel number for the channel selected in Settings.
Source: For the Auto-Setup dialog box, the device addresses are sequentially set from block number 1-
channel number 1, starting with the specified device address.
For the Individual Settings dialog box, if Source Device Type on the Channel tab is Word,
the 16 channels for the block selected at the start of the specified device address are batch
configured. For Bit, the selected channel is individually configured.
Click to open the Device Address Settings dialog box where you can edit the device address.
For the device address configuration procedure, refer to Chapter 2 “5.1 Device Address
Settings” on page 2-62.
Data: Selects whether or not to save Alarm Log data in the date storage area.
For the Auto-Setup dialog box, all the channels are batch configured.
For the Individual Settings dialog box, the 16 channels for the selected block are batch
configured.
Store: Alarm Log data can be displayed on the Touch or output to file.
No Store: Alarm Log data is not created, but device states are monitored.
To Next Page
