2 Data Log Function Configuration Procedure
14
Data Log Function
14
Enter the text to display in the data label in Label.
The text entered here is the label row for the data number columns when the data is output as CSV.
If you selected the Use Text Manager check box on the Data tab, specify the ID number for the text to use in the
label.
15
Click OK to close the Data Settings dialog box.
To individually register Data Log settings on the Individual Settings dialog box, repeat steps
11
through
14
.
16
Click OK to close the Individual Settings dialog box.
17
Repeat steps 2 through
16
to register Data Log settings for all of the channel numbers to use.
18
Specify the Data Log data storage amount per device.

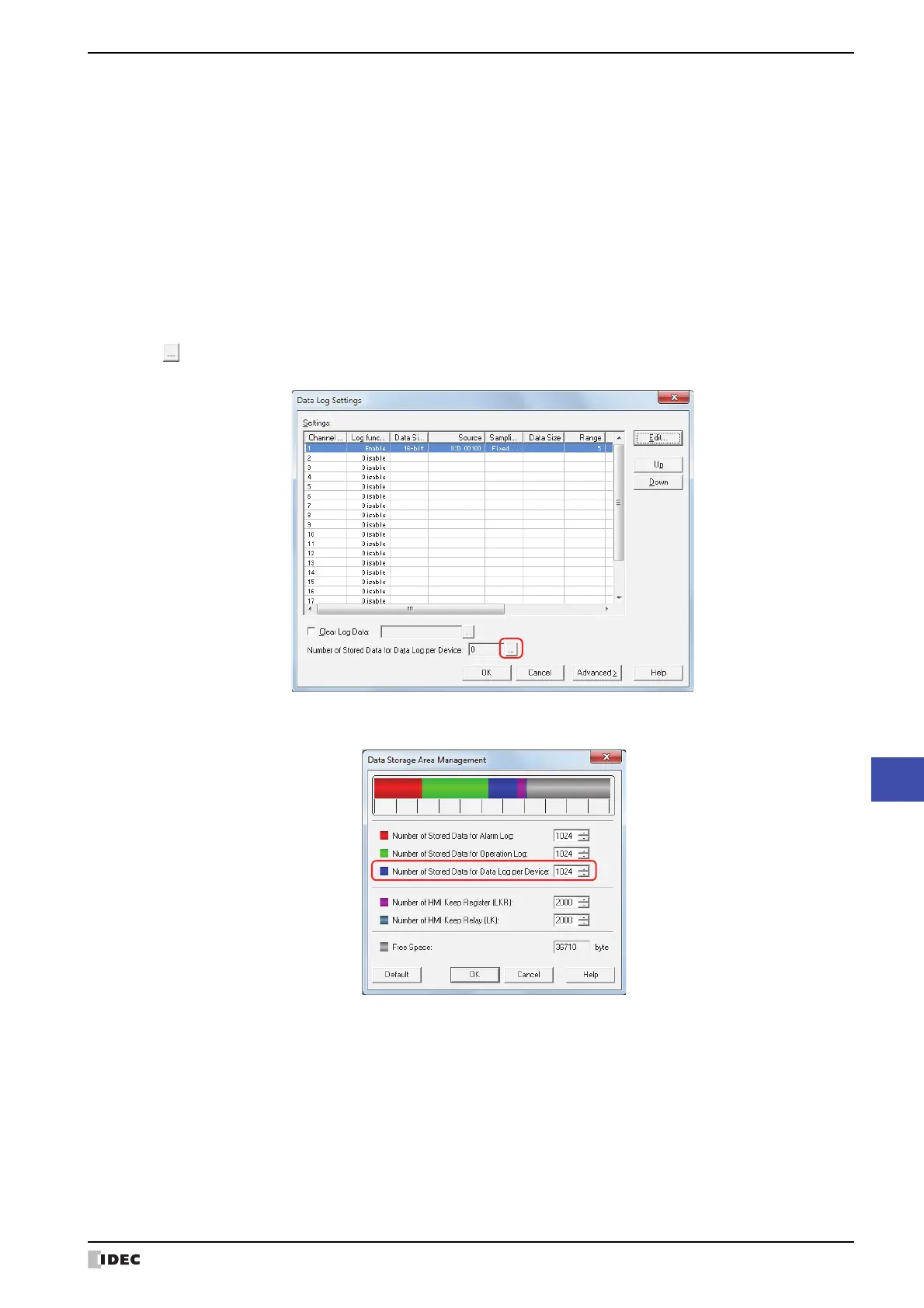

Click for Number of Stored Data for Data Log per Device to display the Data Storage Area Management dialog
box.
Increase the number for Number of Stored Data for Data Log per Device.
Click OK to close the Data Storage Area Management dialog box.
19
Click OK.
The Data Log Settings dialog box closes.
This concludes configuring the sampling conditions and devices for sampling data.
Next, configure the functions to execute using sampled data.
F “4.1 Display the Data in the Line Chart” on page 14-25
F “4.2 Displaying Data as Numerical Values” on page 14-27
F “4.3 Saving Data as a CSV File” on page 14-37
