■ Batch
Select this check box to batch output all the sampled data to the external memory.
All the data is saved on the external memory when the trigger devices changes from 0 to 1. If a file with the same
name already exists on the external memory, that file is overwritten. The maximum amount of output data is the
amount configured by the data storage area or 1,024.
*1 Advanced mode only

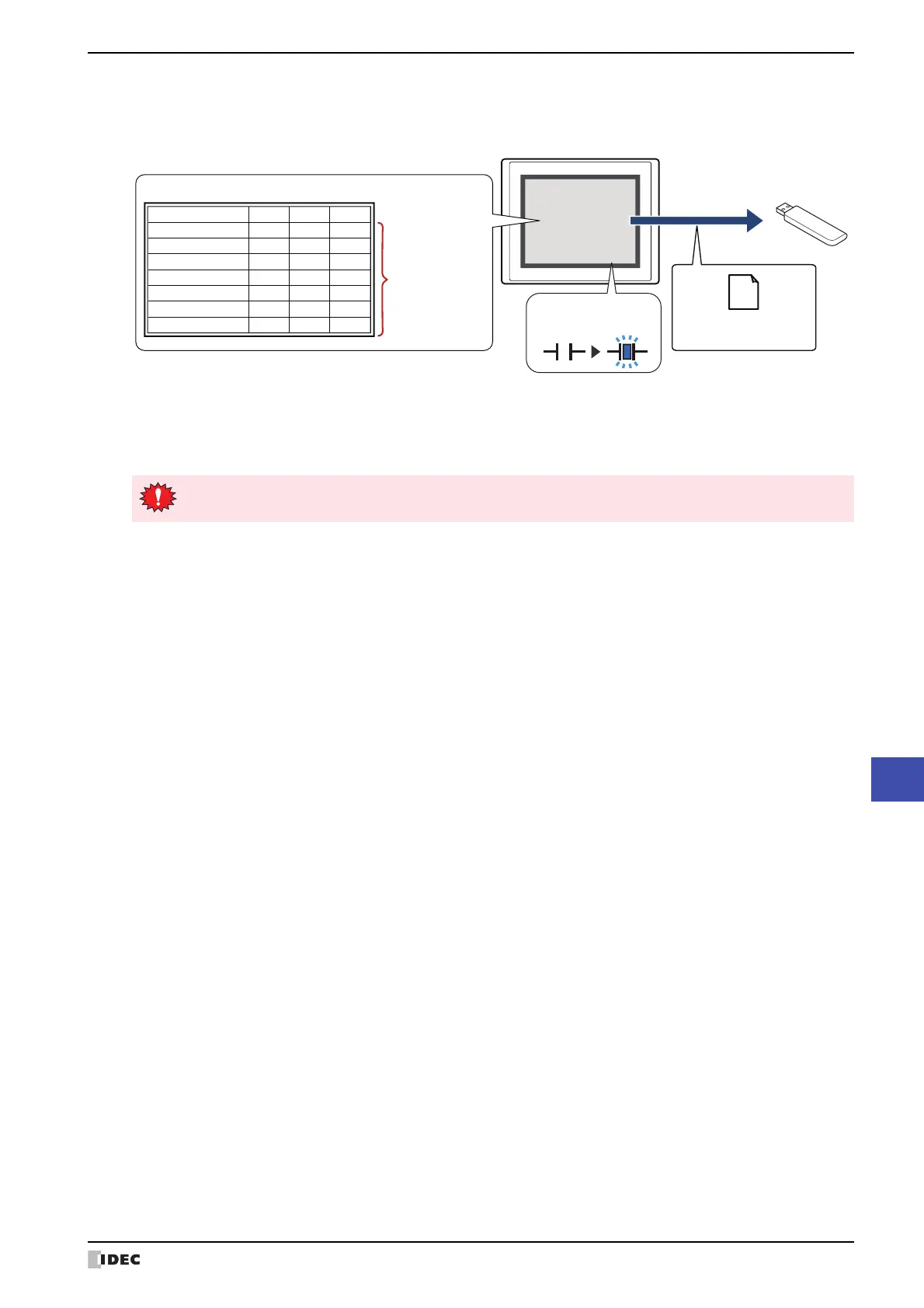

Tou ch
Data Log data (CSV)
Output to
USB flash drive
USB flash drive
Data Log data
Sampling Time Data001 Data002 Data003
01/01/2011 12:00:30 20 120 201
01/01/2011 12:01:30 21 121 204
01/01/2011 12:02:30 22 122 206
01/01/2011 12:03:30 23 123 206
01/01/2011 12:04:30 24 124 210
01/01/2011 12:05:30 25 125 210
01/01/2011 12:06:30 26 126 218
0
1
Trigger Device
Data to be output
(all)
Output stops if there is insufficient free space on the external memory. USB flash drive error information is
stored in HMI Special Data Registe
r LSD33.
Trigger Device: Specifies the bit device or bit of the word device that triggers batch output. For the device
address configuration procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-
62.
Data is output to file when the trigger device changes from 0 to 1.
File Name: Enter the file name for the output data or shows the file name.
The default is “LOGOn.CSV”. (n: Data log channel number)
To change the file name, enter a new file name. The maximum number is 120 characters
(including the extension).
Add Device data to File Name
*1
:
Select this check box to add the bottom three digits of the
value of device configured by File Name Device to the
end of file name for the output data.
Example: When the channel number is 1 and the value of
device configured by File Name Device is 123,
the file name is “LOGO01123.CSV”.
File Name Device: Specifies the word device that is the source for the value to
add to the file name. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address
Settings” on page 2-62. This option can only be configured
when the Add Device data to File Name check box is
selected.
