SmartAXIS Touch User’s Manual 15-15
3 Operation Log Settings Dialog Box
15
Operation Log Function

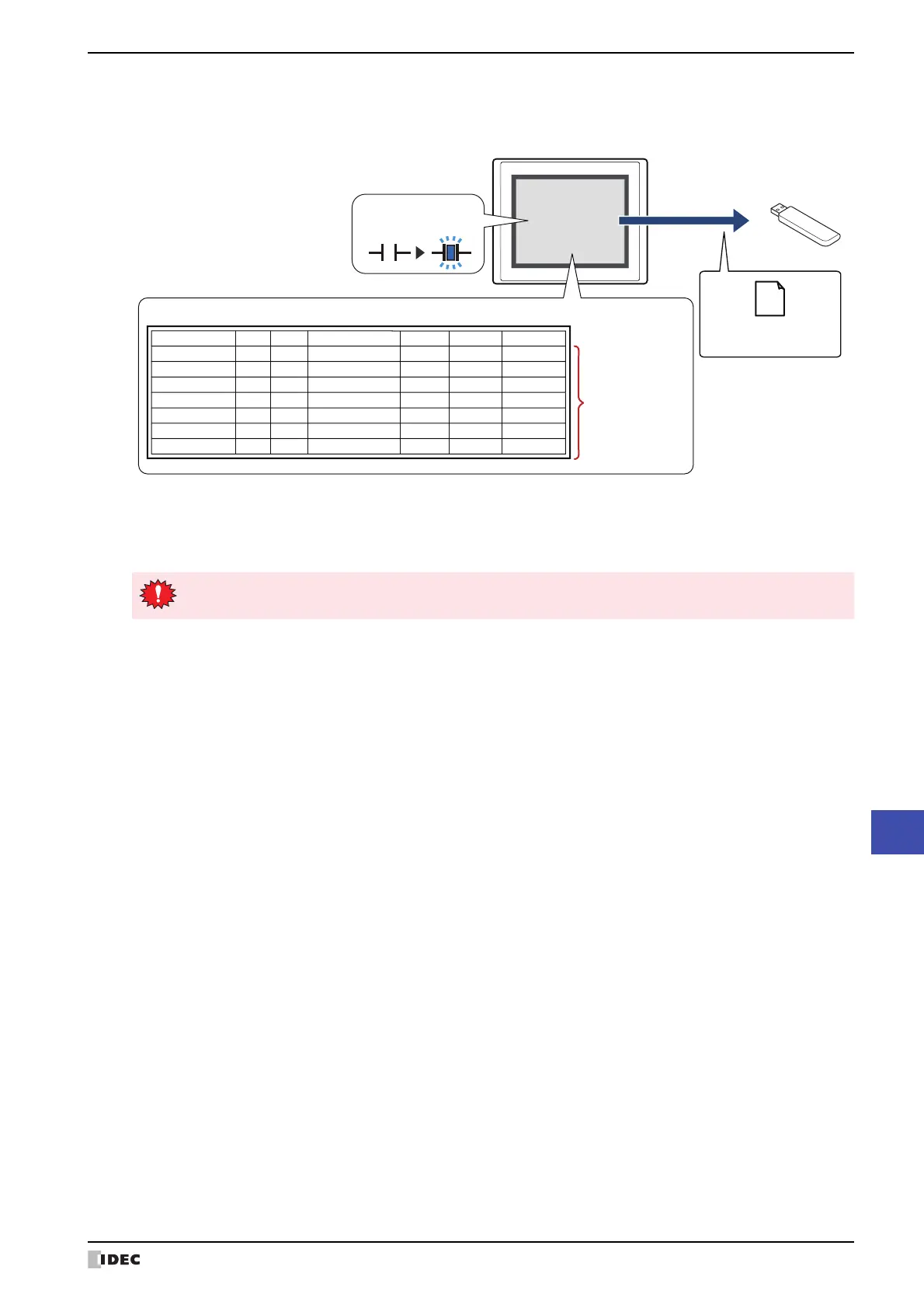

■ Batch
Select this check box to batch output all the sampled data to the external memory.
All the data is saved on the external memory when the trigger device changes from 0 to 1. If a file with the same
name already exists on the external memory, that file is overwritten. The maximum amount of output data is the
amount configured by the data storage area.
*1 Advanced mode only
Tou ch
USB flash drive
Operation Log data
(CSV)
Output to
USB flash drive
Operation Log data
0 1
Trigger Device
Data to be output
(all)
Sampling Time User Screen No. Event Name Part Name Details Changed to
12/01/2011 12:00:10 - Base1 Power ON - - -
12/01/2011 12:01:23 User1 Base1 Switch to Base Screen - - Base2
12/01/2011 12:02:45 User1 Base2 Change Users - - User2
12/01/2011 12:03:06 User2 Base2 Change Operation Modes - - System Mode
12/01/2011 12:04:11 User2 Base2 Press buttons BitSwitch - -
12/01/2011 12:04:11 User2 Base2 Write Data to any Devices - LDR 0 55
12/01/2011 12:07:30 User2 Base2 Switch to Base Screen - - Base3
Output stops if there is insufficient free space on the external memory. USB flash drive error information is
stored in HMI Special Data Register LSD33.
Trigger Device: Specifies the bit device that triggers batch output. For the device address configuration
procedure, refer to Chapter 2 “5.1 Device Address Settings” on page 2-62.
Data is output to file when the trigger device changes from 0 to 1.
File Name: Enter the file name for the output data or shows the file name.
The default is “OPLOGO.CSV”.
To change the file name, enter a new file name. The maximum number is 120 characters
(including the extension).
Add Device data to File Name
*1
:
Select this check box to add the bottom three digits of
the value of device configured by File Name Device to
the end of the file name for the output data.
Example: When the value of device configured by File
Name Device is 123, the file name is
“OPLOGO123.CSV”.
File Name Device: Specifies the word device that is the source for the value
to add to the file name. For the device address
configuration procedure, refer to Chapter 2 “5.1 Device
Address Settings” on page 2-62. This option can only be
configured when the Add Device data to File Name
check box is selected.
To Next Page
